3.6 Mounting/supply data
3-57
 Siemens AG, 2003. All rights reserved
SINUMERIK 840D/SIMODRIVE 611 digital, HLA Module (FBHLA) - 10.03 Edition
3.6 Mounting/supply data

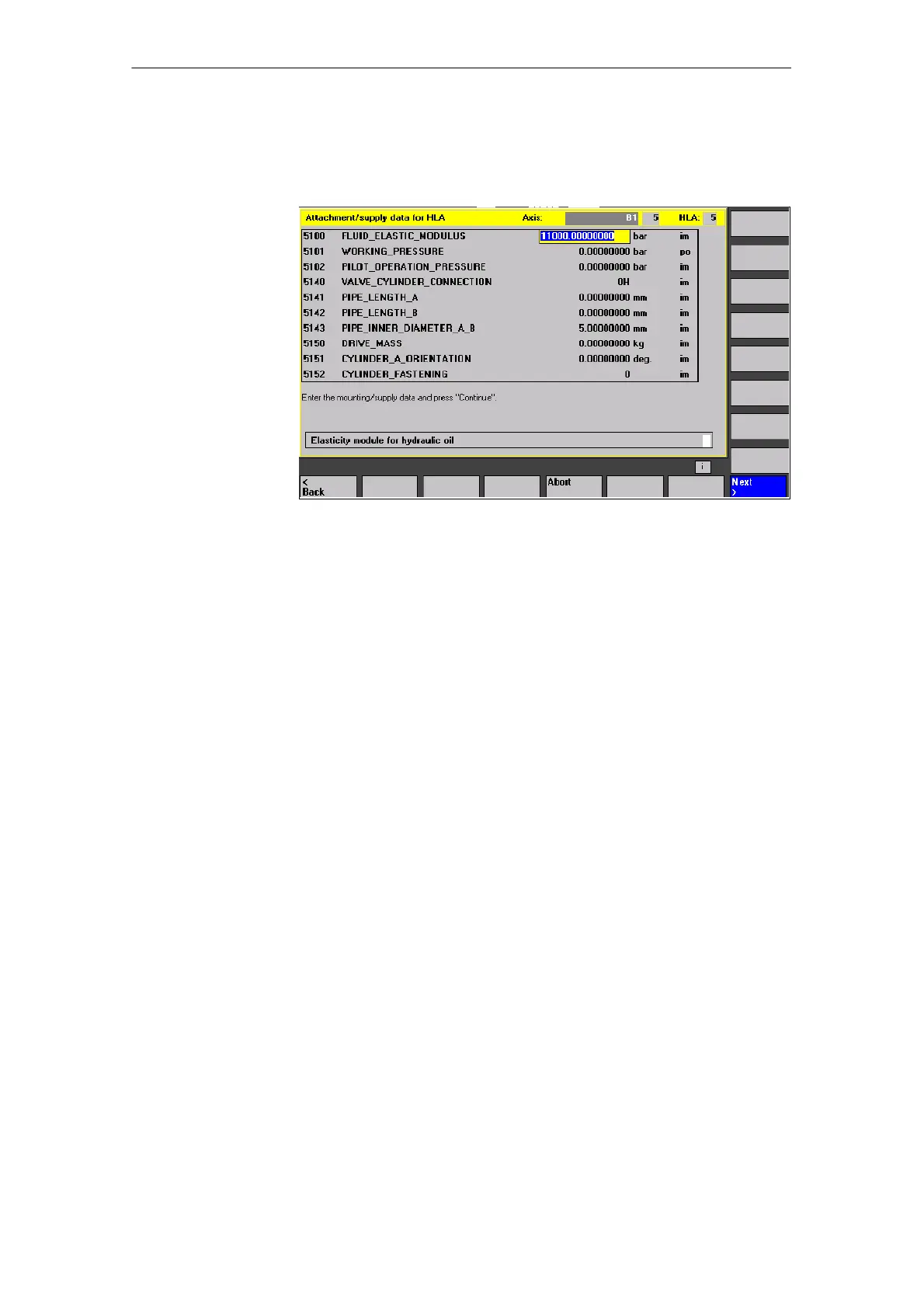

Fig. 3-10 “Mounting/supply data for HLA” menu display
Select the “Back” softkey to return to the “Cylinder data for HLA” menu display.
Then press “Continue” to go to the “Measuring system data for HLA” menu dis-
play.
The following mounting and supply data must be entered manually.
S MD 5100: FLUID_ELASTIC_MODULUS (modulus of elasticity of
hydraulic fluid)
S MD 5101: WORKING_PRESSURE (system pressure)
S MD 5102: PILOT_OPERATION_PRESSURE (pilot pressure, for pilot-
actuated valves only)
S MD 5140: VALVE_CYLINDER_CONNECTION
(valve-cylinder connection configuration)
S MD 5141: PIPE_LENGTH_A (pipe length at A end)
S MD 5142: PIPE_LENGTH_B (pipe length at B end)
S MD 5143: PIPE_INNER_DIAMETER_A_B
(internal pipe diameter A-B (nominal diameter))
S MD 5530: CYLINDER_SAFETY_CONFIG (protection circuit)
S MD 5150: DRIVE_MASS (moved mass of drive)
S MD 5151: CYLINDER_A_ORIENTATION
(mounting position A end of cylinder)
S MD 5152: CYLINDER_FASTENING (cylinder mounting)
Supply unit
Connection
Drive data
3 Startup
02.99
