10.03
3.5 Cylinder selection
3-56
Siemens AG, 2003. All rights reserved
SINUMERIK 840D/SIMODRIVE 611 digital, HLA Module (FBHLA) - 10.03 Edition
3.5 Cylinder selection
The following cylinder data must be entered manually:
S MD 5131: CYLINDER_PISTON_DIAMETER
(piston diameter of cylinder)
S MD 5132: CYLINDER_ROD_A_DIAMETER
(cylinder piston rod diameter at A end)
S MD 5133: CYLINDER_ROD_B_DIAMETER
(cylinder piston rod diameter at B end)
S MD 5134: PISTON_STROKE
(piston stroke)
S MD 5135: CYLINDER_DEAD_VOLUME_A
(cylinder dead volume at A end)
S MD 5136: CYLINDER_DEAD_VOLUME_B
(cylinder dead volume at B end)

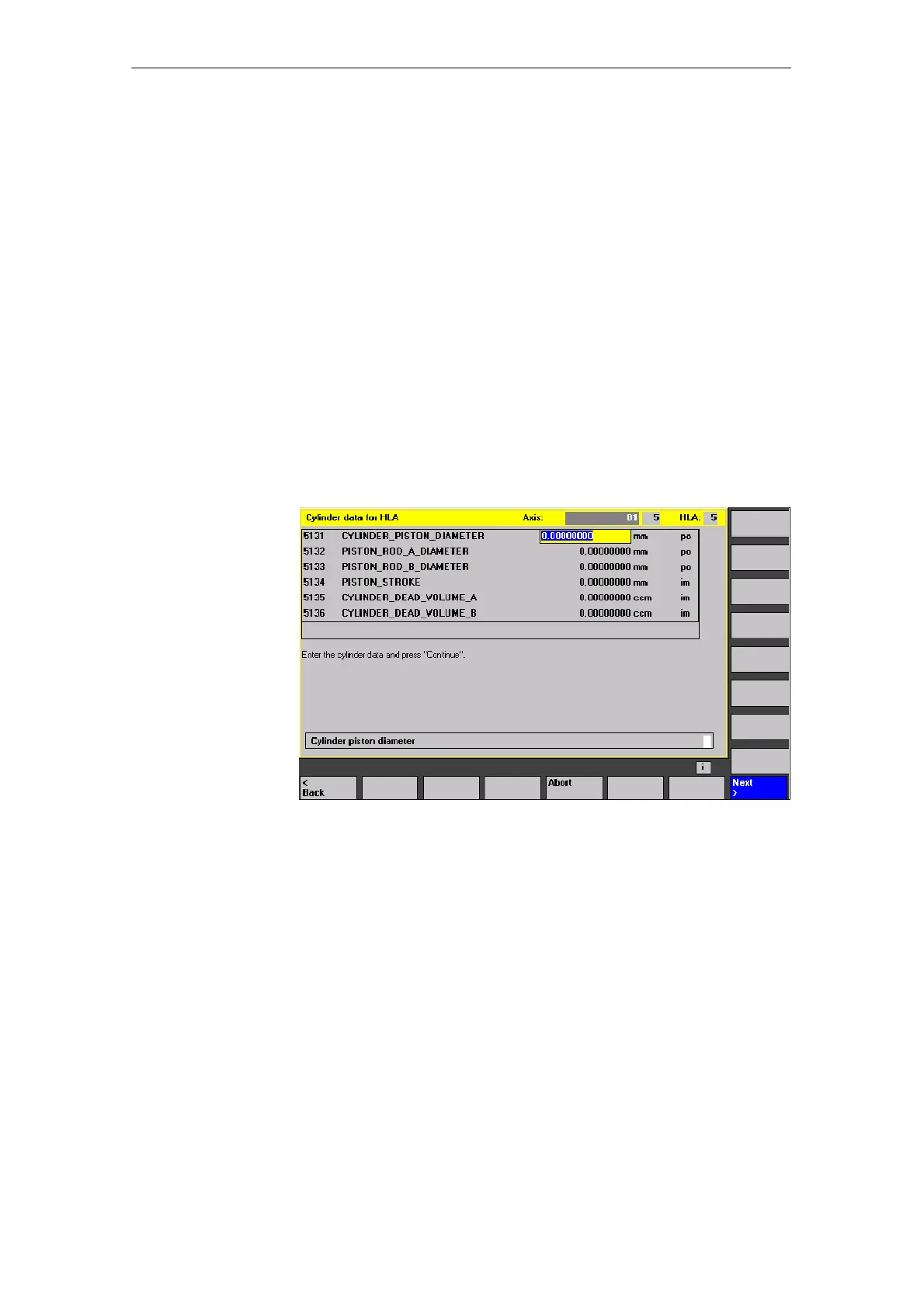

Fig. 3-9 “Cylinder data for HLA” menu display
