10.03
3.11 Start-up functions
3-76
Siemens AG, 2003. All rights reserved
SINUMERIK 840D/SIMODRIVE 611 digital, HLA Module (FBHLA) - 10.03 Edition
3.11 Start-up functions
The following start-up functions are implemented for axes with HLA:
S Measuring functions
- Measurement of valve control loop
- Measurement of velocity control loop
- Position control measurement
S Function generator
S Circularity test
S Servo trace
S DAC configuration

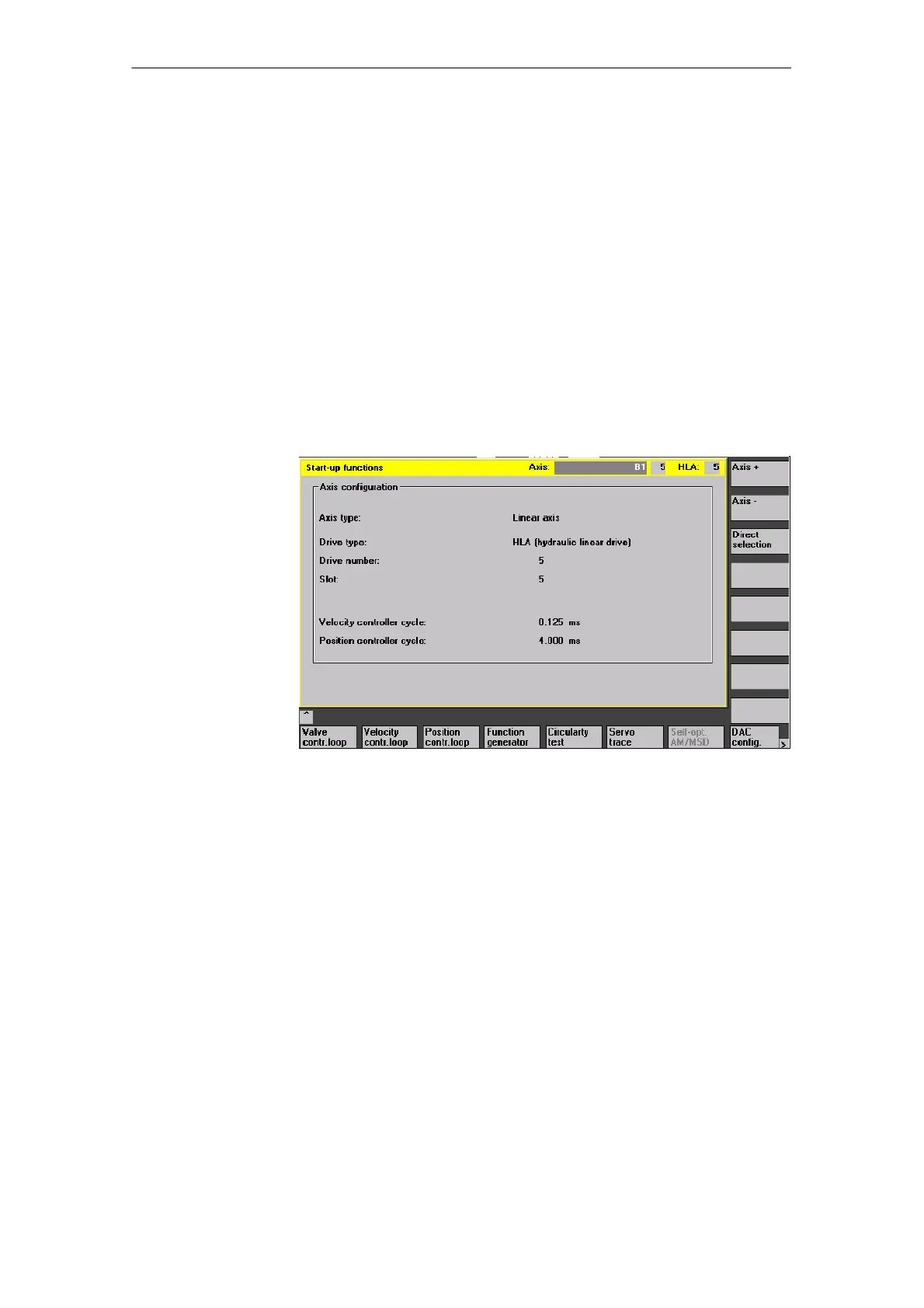

Fig. 3-28 Menu display “Start-up functions”
The softkey “Self-opt.AM/MSD” in the “Start-up functions” menu is also disabled
for axes with HLA since this is a special function for AM/MSD.
The “Aut. Controller setting” in the “Startup functions” menu is disabled for axes
with HLA since the algorithms it uses are designed for automatic controller set-
ting for electric digital drives.
Disabled softkeys
3 Startup
02.99
