3.8 Modifying data
3-59
 Siemens AG, 2003. All rights reserved
SINUMERIK 840D/SIMODRIVE 611 digital, HLA Module (FBHLA) - 10.03 Edition
3.8 Modifying data

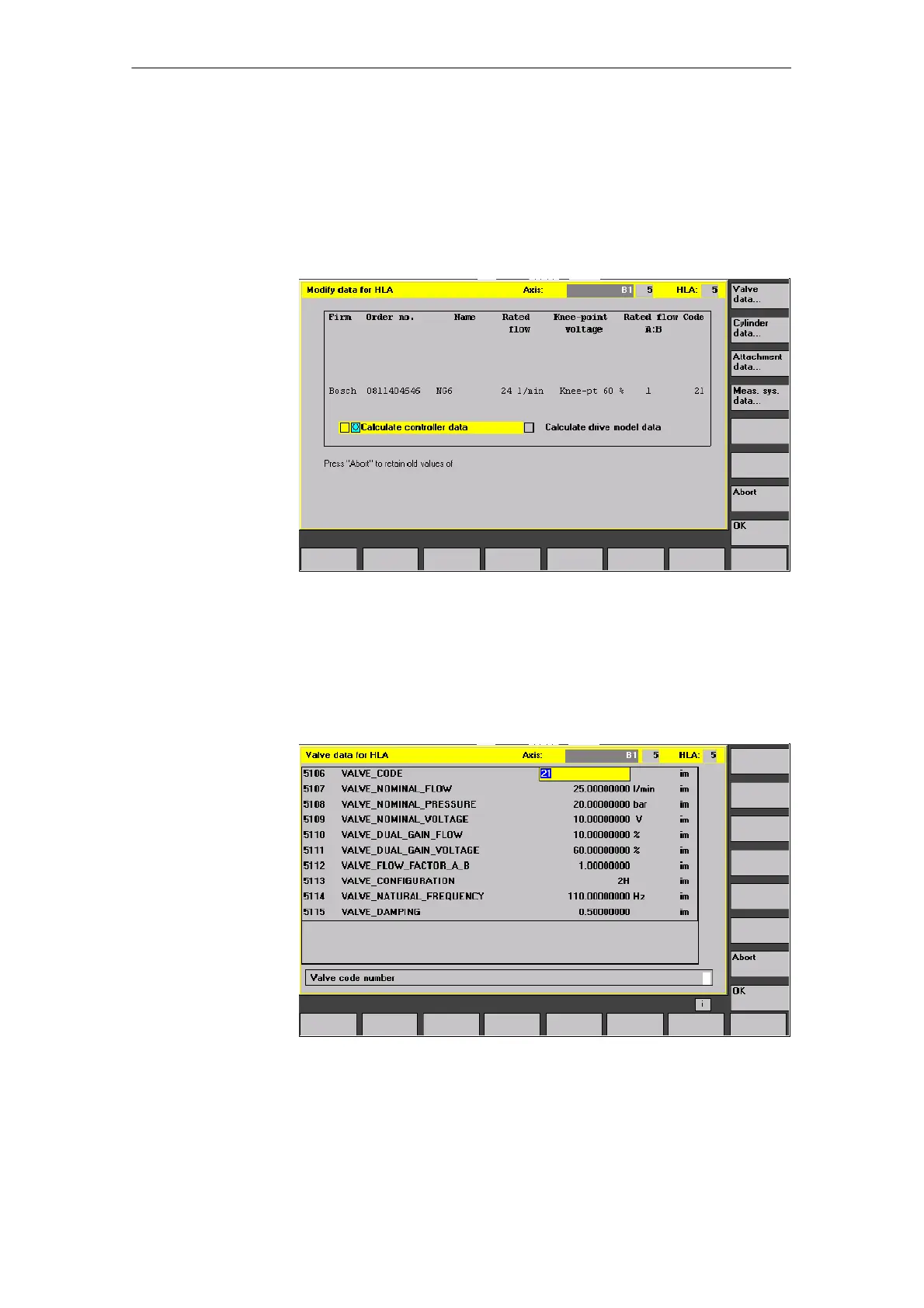

The following menu display appears when you press the “Change valve data...”
softkey (see Fig. 3-5):
Fig. 3-13 Menu display “Change data for HLA”
If you press “Abort”, the old machine data settings are retained and you return
to the initial menu display (see Fig. 3-5).
Softkeys “Valve data...”, “Cylinder data...” and “Mounting data...” each call a dis-
play that has the same format as the following screenshot except for display
header and contents (e.g. valve data for HLA):
Fig. 3-14 Menu display “Valve data for HLA”
You can return to menu display “Change data for HLA” (see Fig. 3-13) by press-
ing “Abort” or “OK”.
Changing valve
data
3 Startup

Siemens Sinumerik 840D Series Specifications

General

Axes	Up to 31 axes
Power Supply	24 V DC
Control Type	CNC
Interface	Ethernet, PROFIBUS
Display	TFT color display
PLC	Integrated PLC (programmable logic controller)
Operating Temperature	0°C to 45°C
Relative Humidity	Up to 95% (non-condensing)
Max. Number of Channels	Up to 10 channels
