3.11.2 Function generator
The function generator for HLA is based on the existing functionality provided
for other drive types integrated to date. The funct. for HLA, which is not espe-
cially designed for hydraulic drives, is based on the SLM range of functions.
The function generator excites the drive with a periodic signal. The signal type
is a modifiable parameter. External measuring instruments such as oscillo-
graphs can record the system responses via DAC output jacks.
The following signals (operating modes) and signal types are available on the
HLA:
S Signals (operating modes)
- valve spool setpoint
- Velocity setpoint
- Position setpoint
S Signal type
- Square-wave
- Noise signal (only for signal output via DAC and external evaluation
equipment for frequency response analyses)

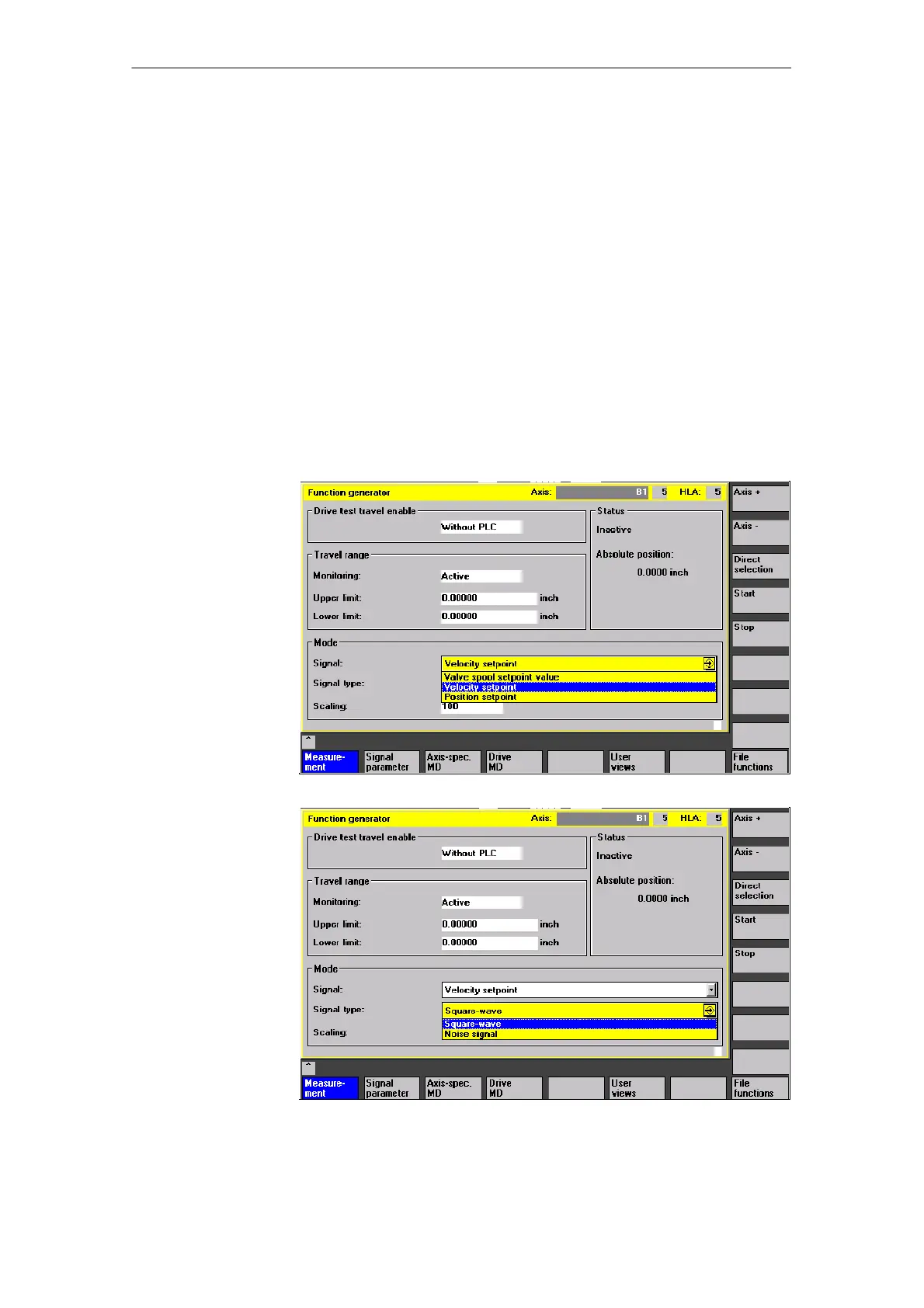

Fig. 3-36 Menu display “Function generator selection signal”
Fig. 3-37 Menu display “Function generator selection signal type”
