10.03
2.3 Configuring the hydraulic drive
2-32
Siemens AG, 2003. All rights reserved
SINUMERIK 840D/SIMODRIVE 611 digital, HLA Module (FBHLA) - 10.03 Edition
2.3.2 Selection of servo solenoid valves
References: /BR1/, “Servo solenoid valves” catalog
The HLA module supports servo solenoid valves with on-board electronics
(OBE) supplied by Bosch Rexroth AG. The technical data for these valves and
valves supplied by other manufacturers is stored in the HLA module software.
The drive is parameterized automatically when the order number is entered.
The following table lists the various types of servo solenoid valve and HR (=
High Response) servo solenoid valves available from Bosch Rexroth AG.
For a complete list, please see Tables 2-4 to 2-10.

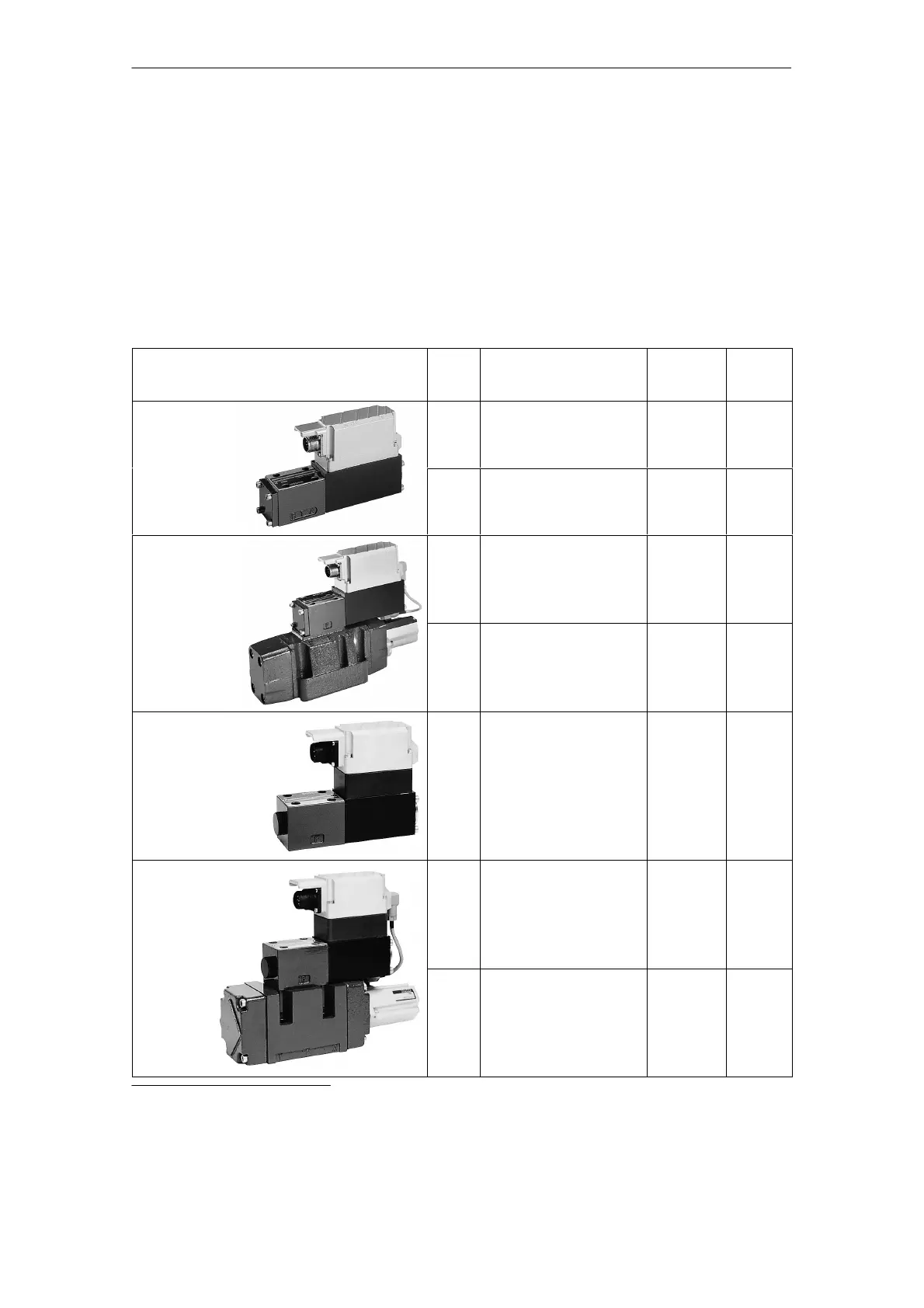

Table 2-3 Overview of servo solenoid and HR servo solenoid valves from Bosch Rexroth AG
Title Nomi-
nal
size
Nominal flowrate (l/min)
for nominal pressure drop
per control edge (bar)
curve Limit fre-
quency
1)
(Hz)
4WRPEH
(directly-controlled
servo solenoid valve)
6 up to 40 / 35 bar linear and
with knee
110
10 up to 100 / 35 bar linear and
with knee
85
4WRPE
(pilot-controlled
servo solenoid valve)
10 up to 70 / 5 bar with knee 40
16 up to 150 / 5 bar with knee 40
4WRPEH
(directly-controlled
HR servo solenoid valve)
6 up to 40 / 35 bar linear and
with knee
210
4WRVE
(pilot-controlled
HR servo solenoid valve)
10 up to 70 / 35 bar with knee 80
16 up to 150 / 5 bar with knee 80
1) The characteristic values specified for the valve limit frequencies relate to an amplitude of "5% and a
phase offset in the Bode diagram of -90°, see also data in catalog supplied by Bosch Rexroth AG.
Valve types
(overview)
