Siemens Sinumerik 840D Series Function Manual

10.03
5.2 System environment
5-184
 Siemens AG, 2003. All rights reserved
SINUMERIK 840D/SIMODRIVE 611 digital, HLA Module (FBHLA) - 10.03 Edition
5.2 System environment
The SINUMERIK 840D and HLA module are supplied via the device bus
from the SIMODRIVE mains supply module or the SIMODRIVE monitoring mod-
ule (may only be installed in conjunction with a mains supply module as an ex-
tended power supply). No provision has been made for any other type of volt-
age supply and failure to use the supply provided could damage the unit.
Note
It is not permissible to operate an HLA module on its own on a SIMODRIVE
monitoring module!
Power is supplied to downstream electrical axes via the DC link busbars
(40 mm
2
) of the carrier module.
For information about the electrical supply conditions for the power supply or
monitoring module, as well as recommended circuits, technical data and setting
options, please see Chapter 2 and
References: /PJ2/ SIMODRIVE Planning Guide
SIMODRIVE
SIEMENS
Mains
supply
module
Device bus
X101
X102
NCU
(840D)
X35
X34
X111
X112
X121
X122
Bus terminator
Drive bus
HLA

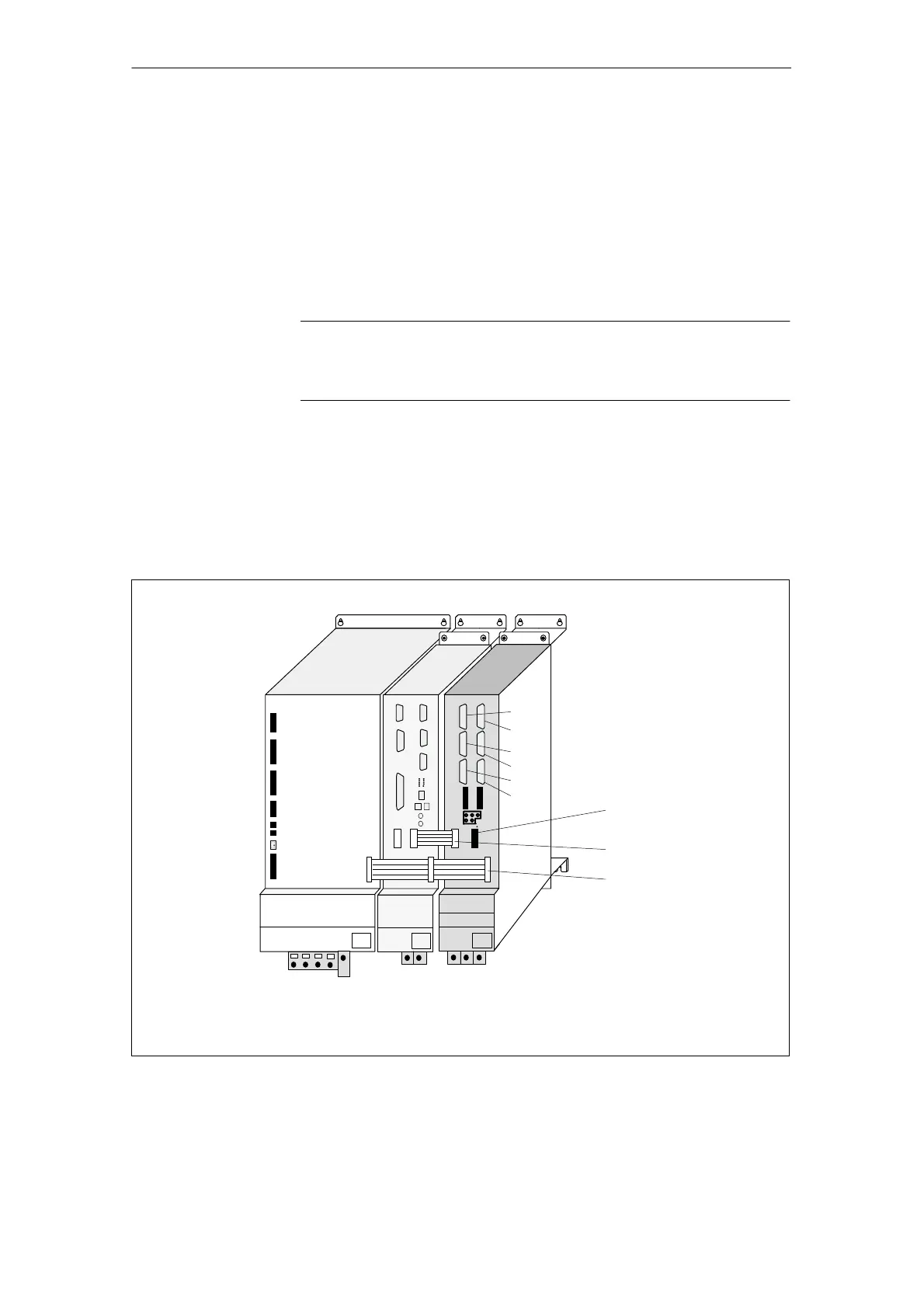

Fig. 5-5 Component layout for hydraulic drive
Mains connection
5 Hardware Drive Functions
02.99

Siemens Sinumerik 840D Series Specifications

General

Axes	Up to 31 axes
Power Supply	24 V DC
Control Type	CNC
Interface	Ethernet, PROFIBUS
Display	TFT color display
PLC	Integrated PLC (programmable logic controller)
Operating Temperature	0°C to 45°C
Relative Humidity	Up to 95% (non-condensing)
Max. Number of Channels	Up to 10 channels
