3.3 Modify drive machine data
3-52
 Siemens AG, 2003. All rights reserved
SINUMERIK 840D/SIMODRIVE 611 digital, HLA Module (FBHLA) - 10.03 Edition
3.3 Modify drive machine data
You can use softkeys “Drive +” and “Drive -” to scroll through all digital (SRM,
ARM, SLM and HLA) drives listed in the drive machine data.

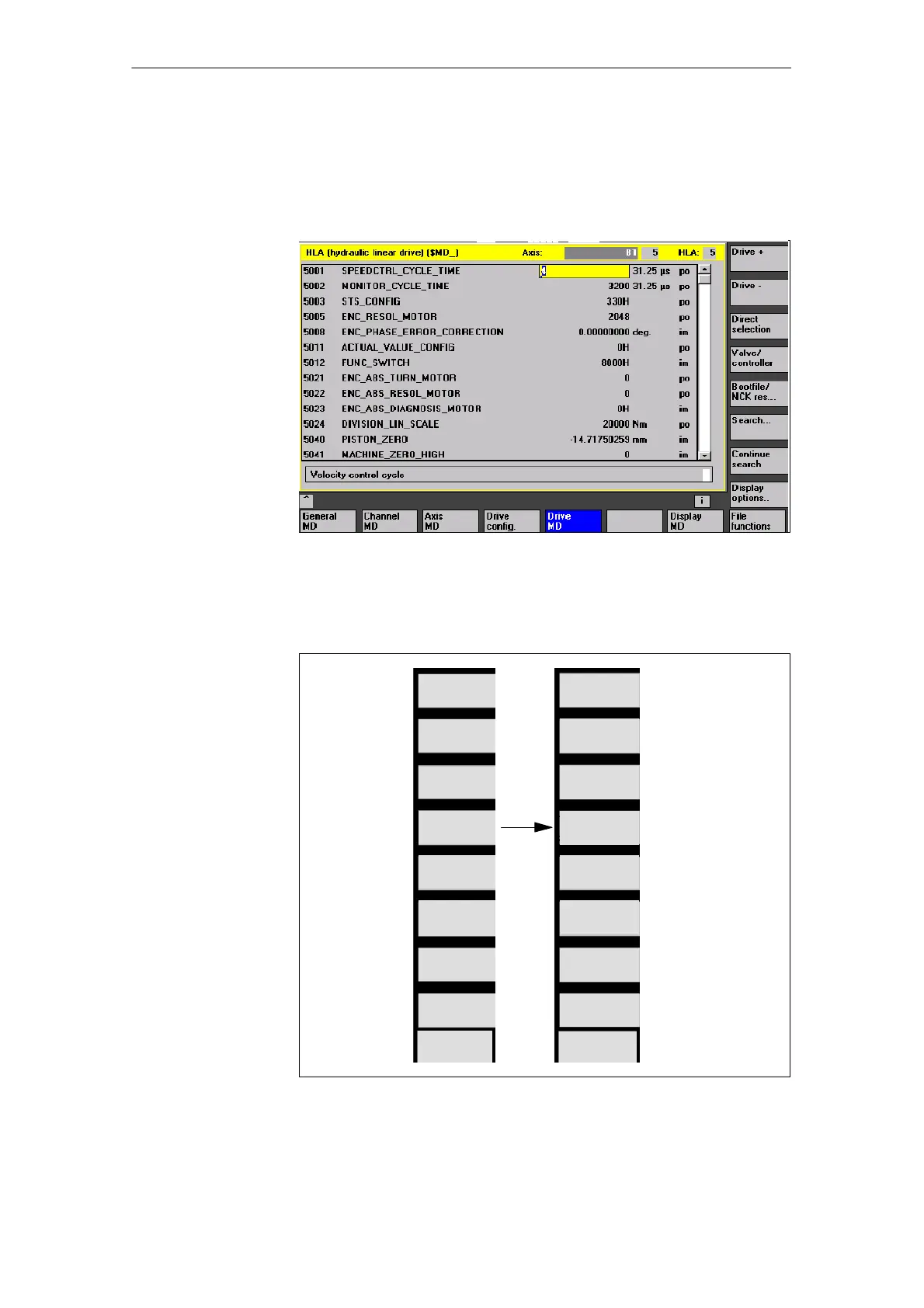

Fig. 3-4 “Drive machine data” menu display
The softkey “Motor/Controller...” is renamed “Valve/Controller...” for the HLA.
Softkey “Valve/Controller...” changes the keys of the vertical softkey menu for
the HLA as follows:
(See Fig. 3-6)
(See Fig. 3-13)
(See Fig. 3-15)
Drive +
Drive -
Direct
selection...
Valve/
Controller...
Boot file/
NCK Res...
Search...
Continue
search
Display
options...
File
functions
Drive +
Drive -
Direct
selection
Valve
selection...
Change
valve data...
Calculate
controller
data...
<<
File
functions
Piston
position...
(See Fig. 3-21)
Fig. 3-5 Rearrangement of vertical softkey menu for HLA
3 Startup
02.99
