3.12 User views
3-90
 Siemens AG, 2003. All rights reserved
SINUMERIK 840D/SIMODRIVE 611 digital, HLA Module (FBHLA) - 10.03 Edition
Table 3-14 DAC selection list
Description Unit
P component of force controller V
I component of force controller V
D component of force controller V
Feedforward control component force controller V
Force controller output V
Zero mark signal -
BERO signal -
Physical address (drive) -
3.12 User views
The horizontal softkey HLA is used under menu items “User Views/Edit View/In-
sert Date”.

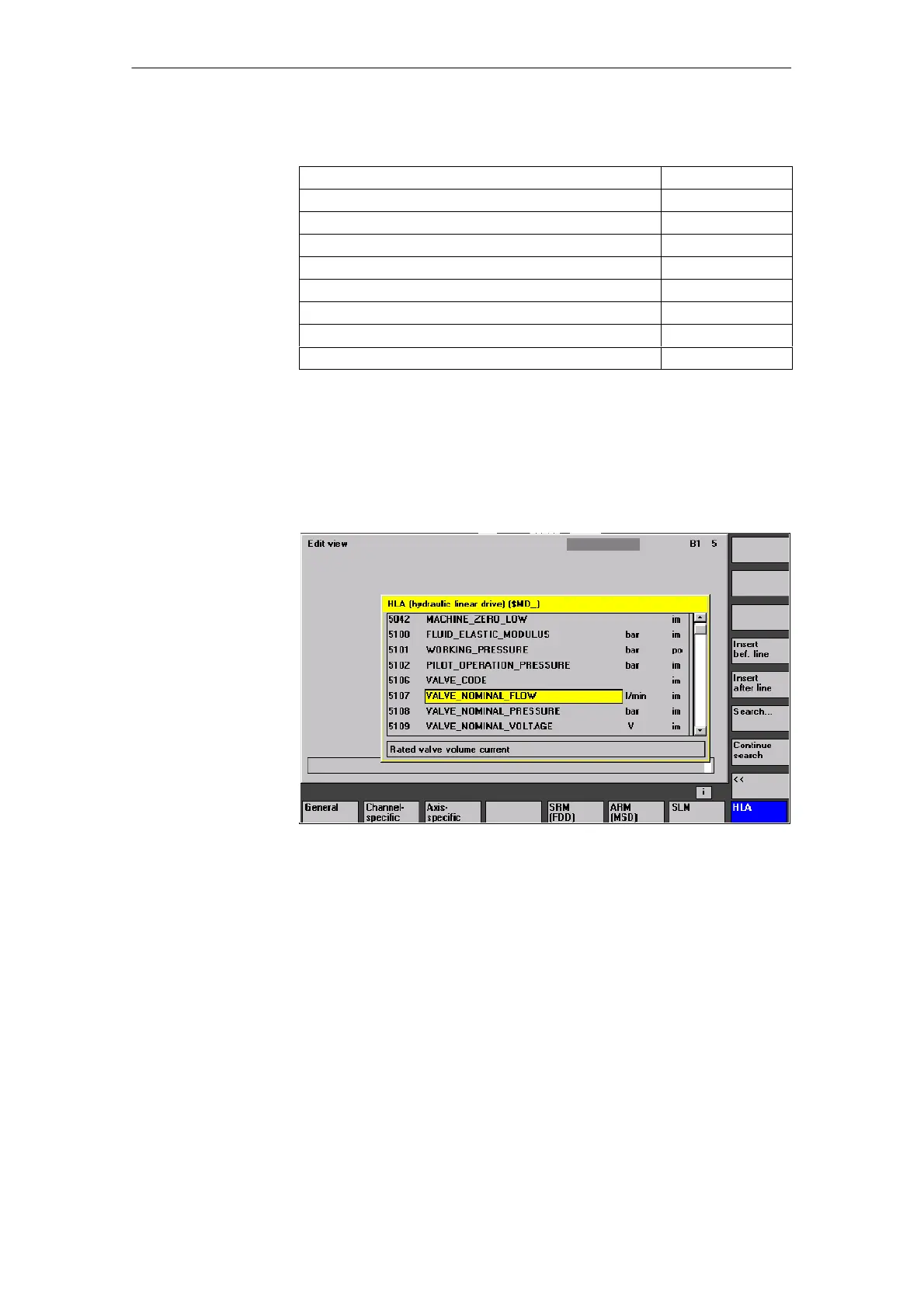

Fig. 3-43 Menu display “Edit view”
3 Startup
02.99

Siemens Sinumerik 840D Series Specifications

General

Axes	Up to 31 axes
Power Supply	24 V DC
Control Type	CNC
Interface	Ethernet, PROFIBUS
Display	TFT color display
PLC	Integrated PLC (programmable logic controller)
Operating Temperature	0°C to 45°C
Relative Humidity	Up to 95% (non-condensing)
Max. Number of Channels	Up to 10 channels
