10.03
3.4 Valve selection
3-53
Siemens AG, 2003. All rights reserved
SINUMERIK 840D/SIMODRIVE 611 digital, HLA Module (FBHLA) - 10.03 Edition
3.4 Valve selection
You can select the servo solenoid valve from a list when you start up the SIMO-
DRIVE 611 for the first time. Once you have made your selection, the valve ma-
chine data defaults are overwritten.
If the valve you want to use is not included in the list, you must enter the valve
machine data manually.
This soft key starts the user-prompted start-up process for the HLA module.
You can select a valve from a list stored in the module software, or a non-listed
valve, in the following menu display.

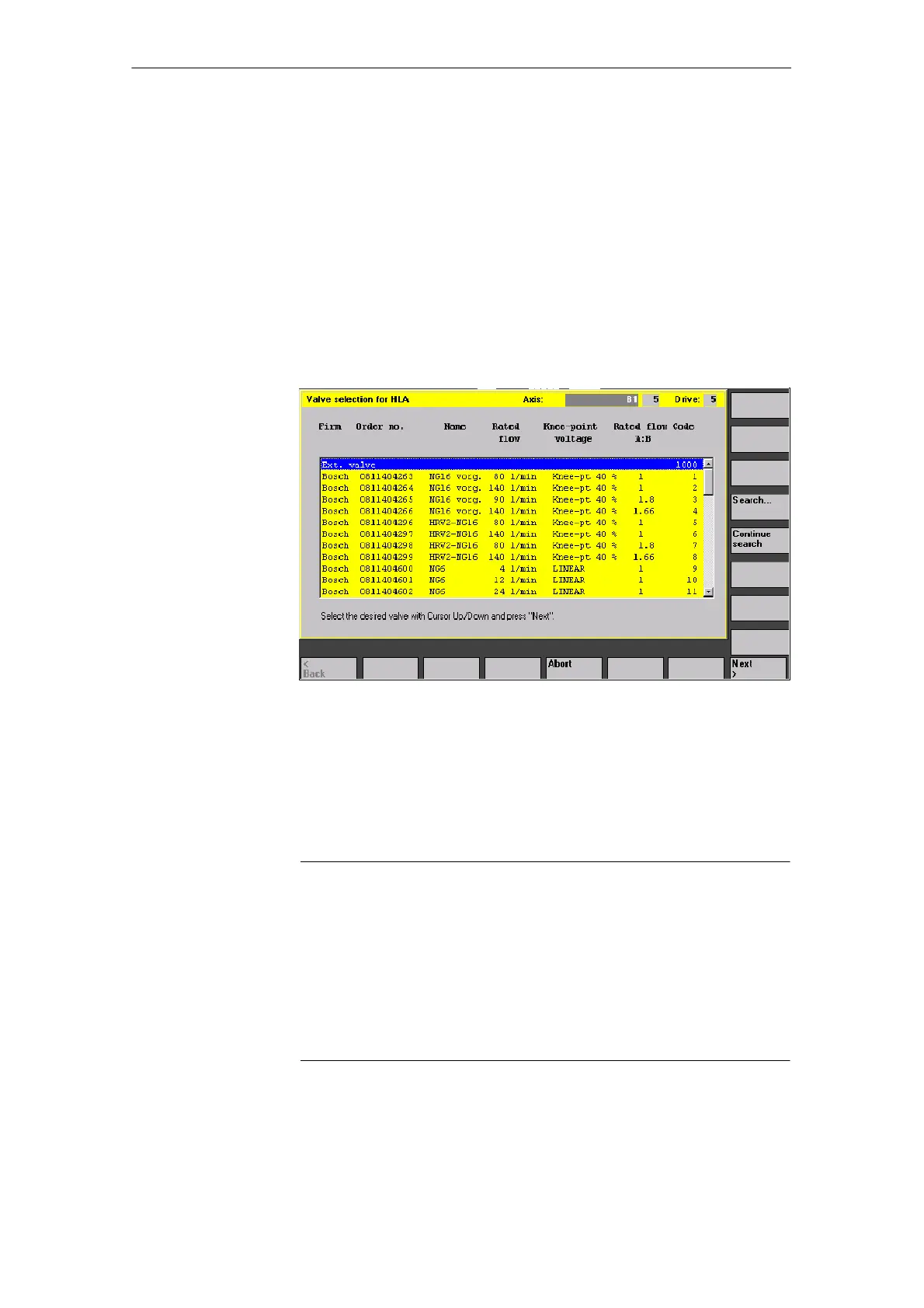

Fig. 3-6 “Valve selection for HLA” menu display
Enter “Unlisted valve” to call a new menu display (see Fig. 3-7) in which the
corresponding machine data can be entered manually.
Choose softkeys “Search...” and “Continue search” to look for any character
string within the list.
Select softkey “Back” to return to the previously displayed menu. This
softkey is disabled in the menu display 3-6.
Note
When you select “Abort”, the program branches back to the drive machine data
display (see Fig. 3-5), both in this screen and the following menu displays for
user-prompted start-up. The “Abort” soft key also activates a prompt box in
which you must confirm that you really want to abort start-up for this drive.
No data is ever changed when you select “Abort”. This also applies to the
following menu displays.
From 10.03 onwards, the name of the company will be changed from Bosch to
Rexroth in the menu displays. The order numbers will remain unchanged.
General
“Valve selection...”
soft key
