10.03
2.4 Connection
2-47
 Siemens AG, 2003. All rights reserved
SINUMERIK 840D/SIMODRIVE 611 digital, HLA Module (FBHLA) - 10.03 Edition
The SITOP power product range supplied by SIEMENS is recommended for
use as the external 26.5 V power supply.
References: SITOP catalog
Order no. E86060-K2410-A101-A4
S SITOP power for line supply connection
The SITOP power product types shown in the tables are recommended for
the line supply connection:
Table 2-12 SITOP power for line supply connection
Input Output Order No.
Voltage range
[v]
Voltage
U
a
Current
I
a
Nom
2AC 85...132/176...550 24 V DC
5 A 6EP1333-3BA00
"
10 A 6EP1334-3BA00
3AC 320...550
20 A 6EP1436-3BA00
40 A 6EP1437-3BA00
HLA module
SITOP
Line
M (GND)
L+ (26.5 V)
AC/DC
X131
Mains supply module
L1
L2
L3
PE
X431
P24EXTIN
M24EXTIN
5
6

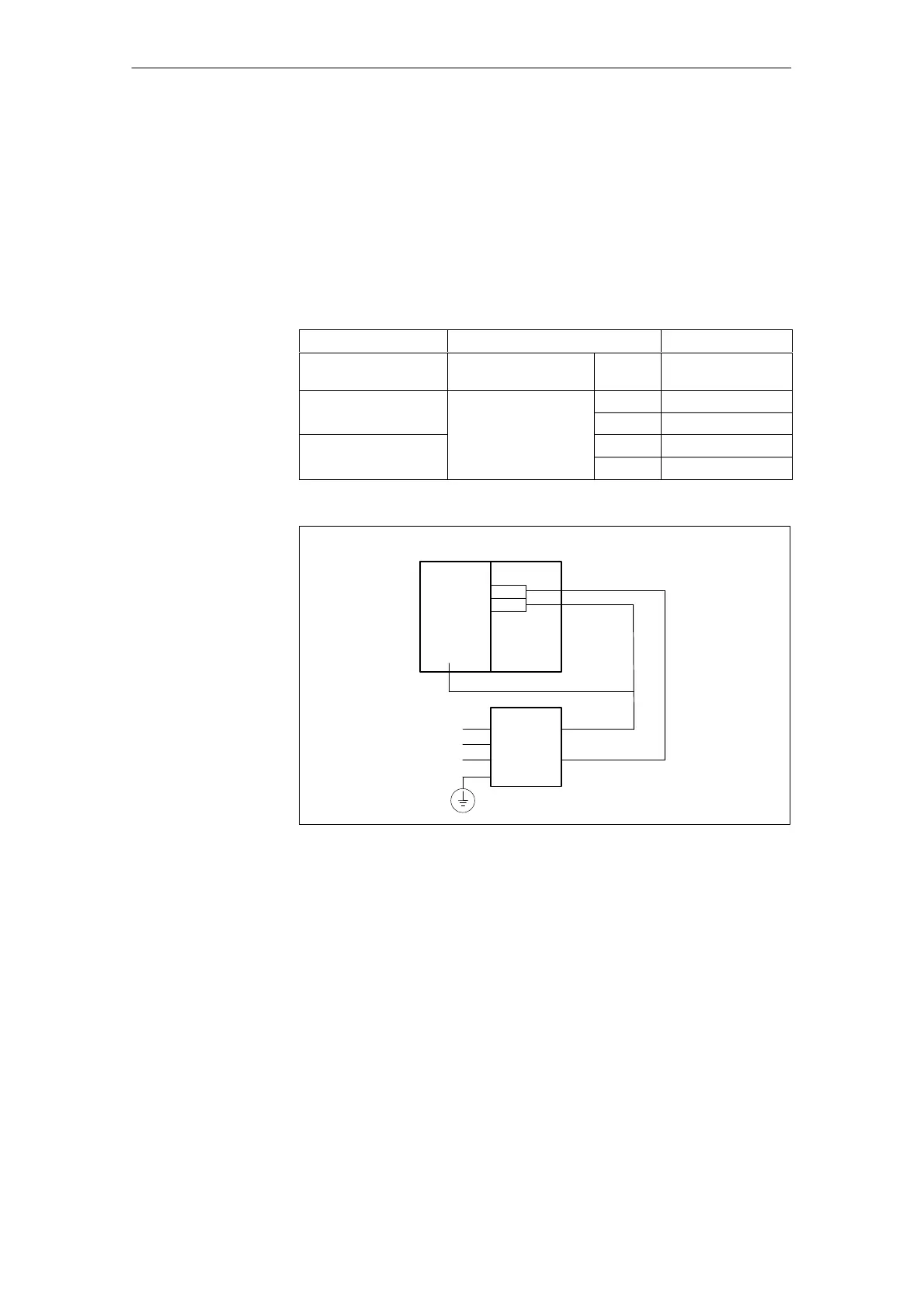

Fig. 2-16 Connection of external 26.5 V SITOP power for line connection
Recommended
power supply
