Siemens SINUMERIK 840D sl Commissioning Manual

Setting the coordinate system
MD52000 $MCS_DISP_COORDINATE_SYSTEM Position of the coordinate system
= 0 Default setting
With this machine data you adapt the position of the coordinate system of the user interface to the
coordinate system of the machine. In the user interface, all help screens, sequence graphics, simula‐
tions, and input fields with circle direction indication change automatically according to the selected
position.

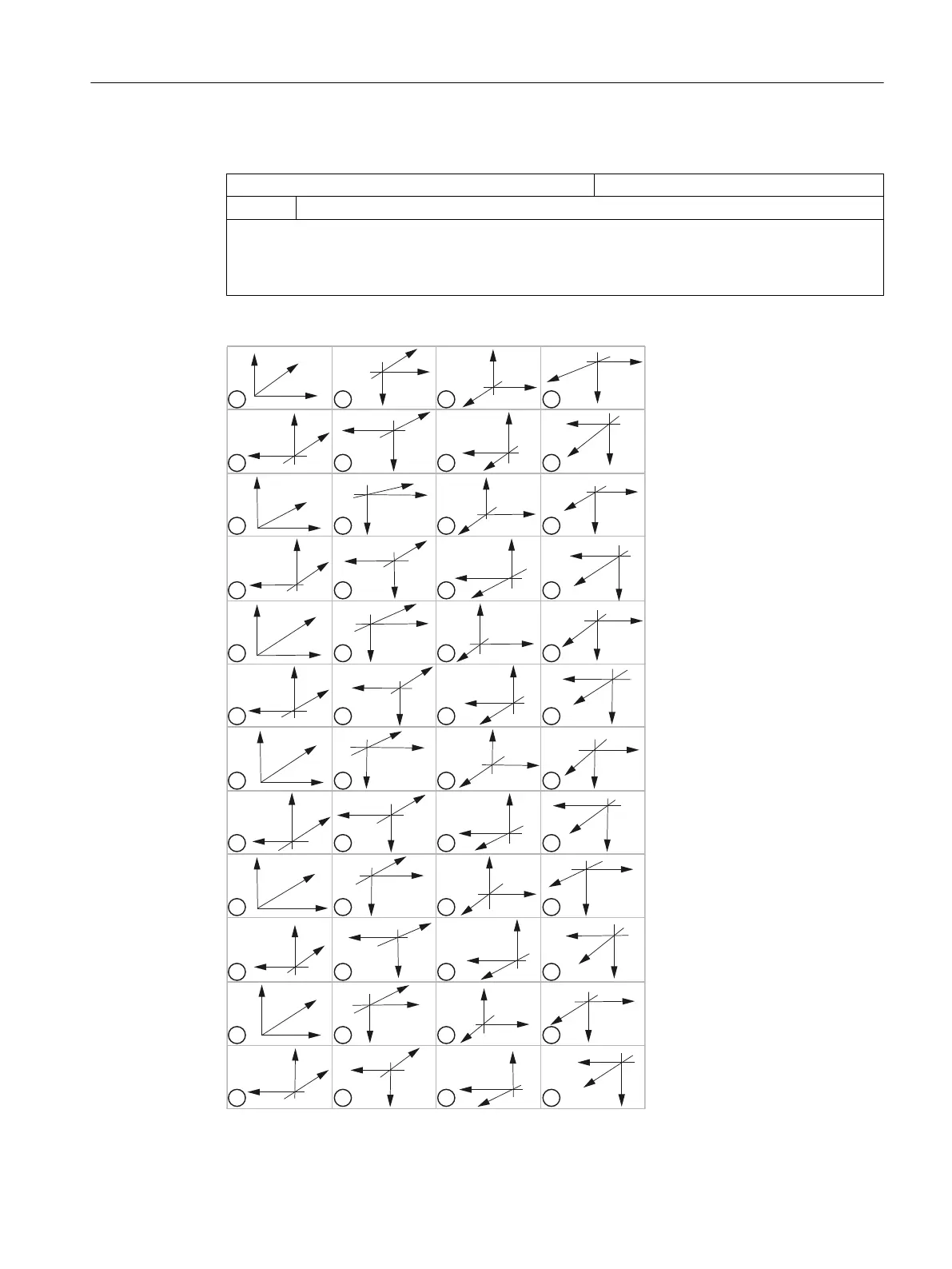

The following settings can be selected for the coordinate system:












=
<
;
=
<
;
=
<
;
=
<
;
=
<
;
=
<
;
=
<
;
=
<
;
=
<
;
=
<
;
=
<
;
=
<
;
=
<
;
=
<
;
=
<
;
=
<
;
=
<
;
=
<
;
=
<
;
=
<
;
=
<
;
=
<
;
=
<
;
=
<
;
;
=
=
<
;
=
<
;
<
=
<
;
;
=
=
<
;
=
<
;
<
=
<
;
;
=
=
<
;
=
<
;
<
=
<
;
;
=
=
<
;
=
<
;
<
=
<
;
;
=
=
<
;
=
<
;
<
=
<
;
;
=
=
<
;
=
<
;
<
=
<
;
Technologies and cycles
21.1 Activating turning/milling/drilling/grinding technologies
SINUMERIK Operate (IM9)
Commissioning Manual, 12/2017, 6FC5397-1DP40-6BA1 505

Siemens SINUMERIK 840D sl Specifications

General

Control Type	CNC
Number of Axes	Up to 31
Max Number of Channels	10
Interfaces	Ethernet, PROFIBUS, PROFINET, USB
Interpolation	5-axis interpolation
Operating Temperature	0°C to 45°C
Relative Humidity	Up to 95% (non-condensing)
Display	TFT color display, various sizes
Programming Languages	DIN/ISO
Safety Features	Safety Integrated
PLC	Integrated PLC S7-300
Drive Interface	SINAMICS S120
Data Storage	CF card, USB
Operating System	Windows-based
