Configuration
5-217SJ62 Manual
C53000-G1140-C121-1
ton to open the context menu, and select 'HOHWH*URXS. A confirmation window will
appear (Figure 5-22).

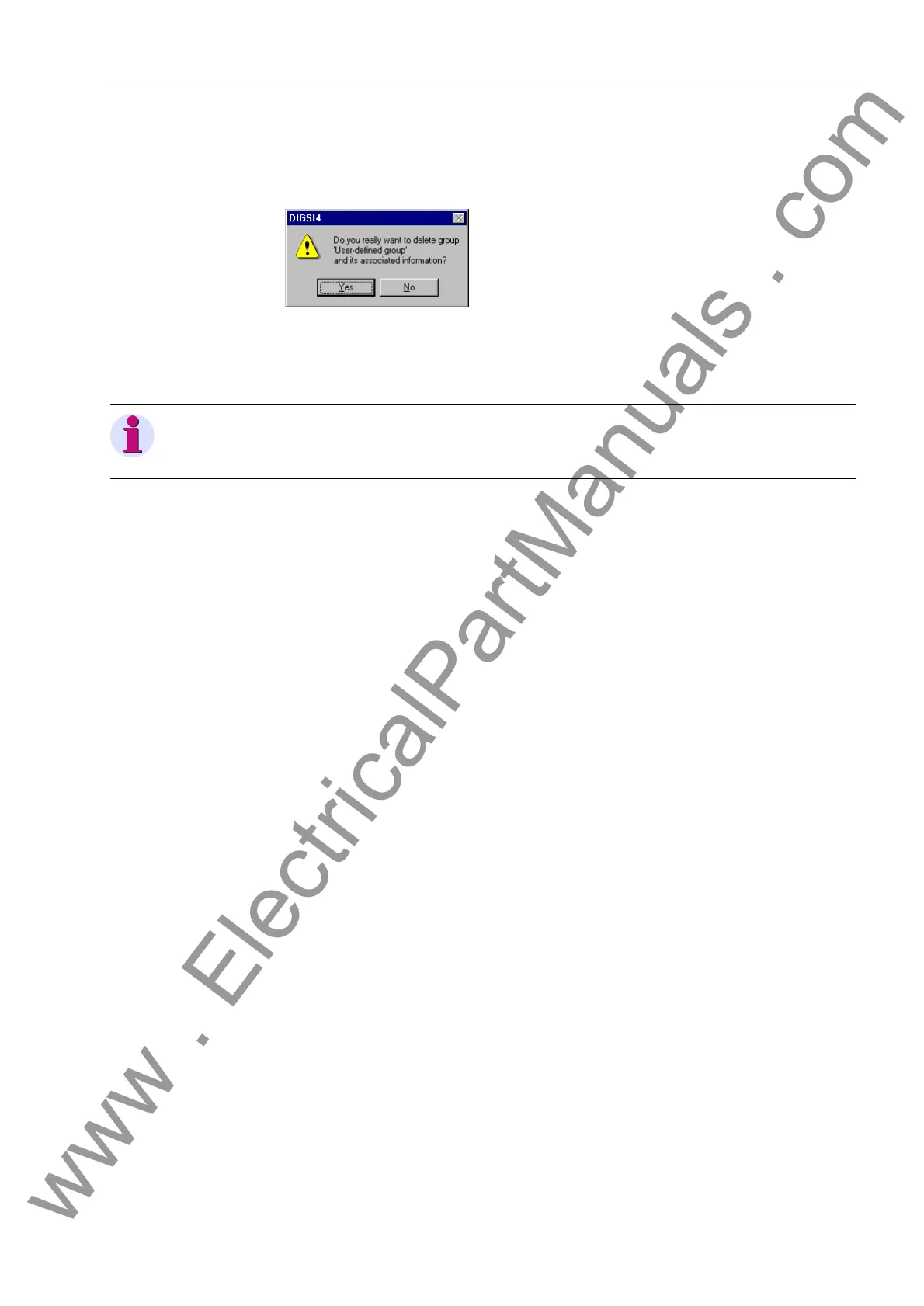

Figure 5-22 Configuration Window Before Deleting a User Defined Group
Click <HV if you actually want to delete the group.
To delete individual entries, click on ,QIRUPDWLRQ in the line with the entry to be de-
leted. Then press the
right mouse button to open the context menu, and select 'H
OHWH,QIRUPDWLRQ. The remaining steps are the same as those for deleting a
group.
5.2.4 Performing Configuration
Actual configuration is based on the entries made in the individual cells. While an en-
try can always be made by clicking on the cell with the left mouse button and then en-
tering the appropriate information, the preferred method is to select a cell, press the
right mouse button, and use the displayed pull down menu to make the entry.
In certain cases, the pull down menu will offer ; (configured) or B (not configured) as
the configuration choices. In other cases, more alternatives will be offered (e.g. / =
latched, 8 = unlatched, and B = not configured). Entries resulting in an implausible
configuration are blocked and inaccessible to the user.
Configuring Binary
Inputs as Sources
Single point indications, double point indications, transformer tap changer indications,
and pulse metered values can all be configured as binary inputs. In addition, whether
or not binary inputs are activated by the presence of control voltage can be estab-
lished. That is,
• “H” (High with voltage active): Control voltage at the binary input terminals activates
the indication
• “/” (Low with voltage active): Control voltage at the binary input terminals deacti-
vates the indication
Note :
When deleting a group, all information definitions within this group will be deleted.
