Installation and Commissioning
8-2 7SJ62 Manual
C53000-G1140-C121-1
8.1 Installation and Connections
Requirements Verification of the 7SJ62 according to Sub-section 3.2.1 and the connected external
equipment must be verified.
8.1.1 Installation
Panel Flush
Mounting
q
Remove the four covers on the corners of the front cover. Four elongated holes in
the mounting angle strips become accessible.

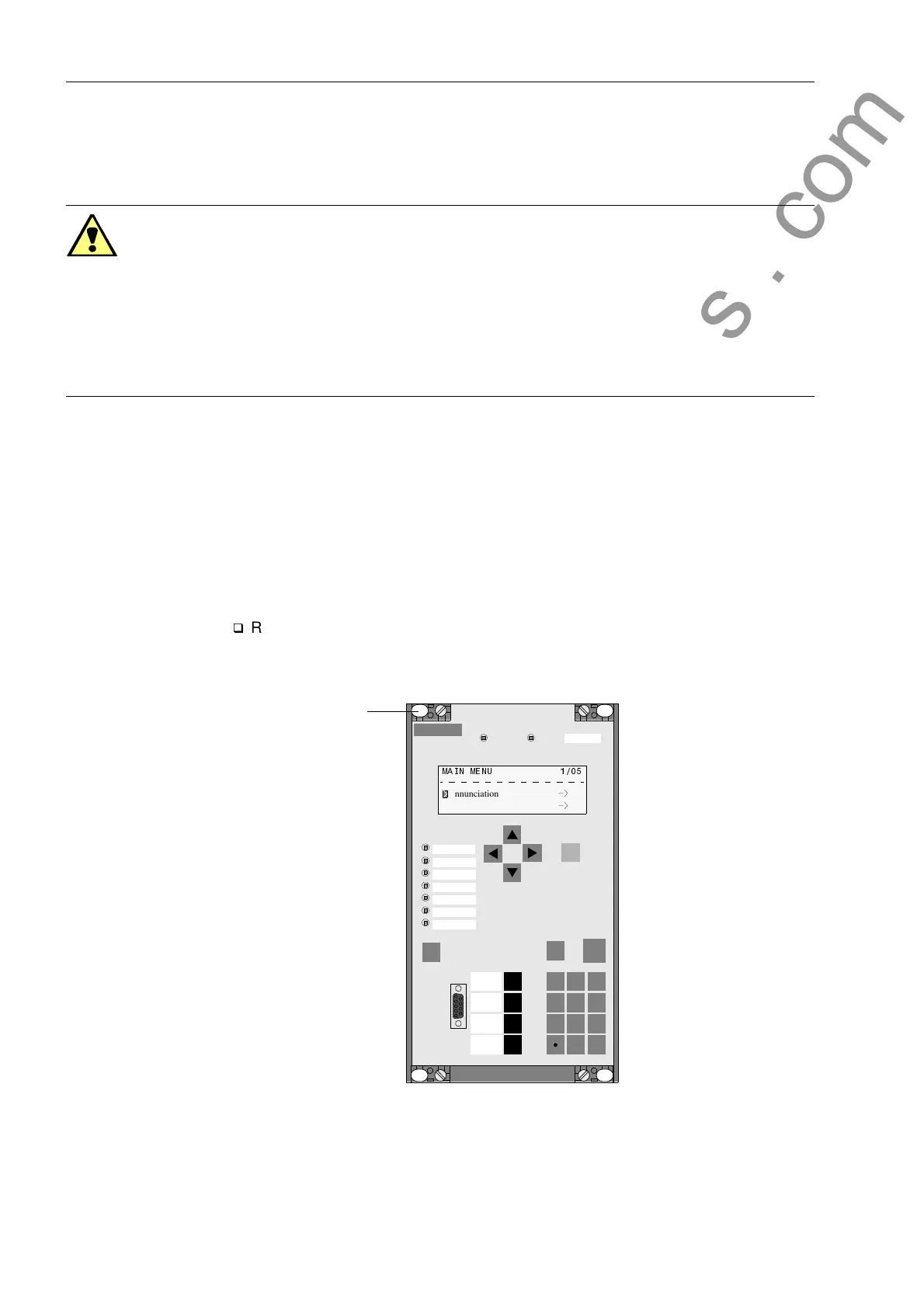

Figure 8-1 Panel Mounting of a 7SJ62
Warning!
Trouble free and safe use of this SIPROTEC
®
4 device depends on proper transport,
storage, installation, and application of the device according to the warnings in this in-
struction manual.
Of particular importance are the general installation and safety regulations for work in
a high-voltage environment (for example, ANSI, IEC, EN, DIN, or other national and
international regulations.) These regulations must be observed. Failure to observe
these precautions can result in death, personal injury, or severe damage of property.
