4.1.2 Communication
SIPROTEC
®
4 devices are completely suited for the requirements of modern commu-
nication technology. They have interfaces that allow for integration into higher-level
control centres, and user friendly operation through an on-site PC or via a modem con-
nection. Simple, comfortable device setup and operation are provided.
SIPROTEC
®
4 devices support the widespread, internationally accepted communica-
tion standards
q PROFIBUS FMS and
q IEC 60870-5-103
Prepared for
q DNP3.0 (available 12/99)
q Modbus (available 04/00)
q Profibus DP (available 12/99)
q UCA II / Ethernet (future)

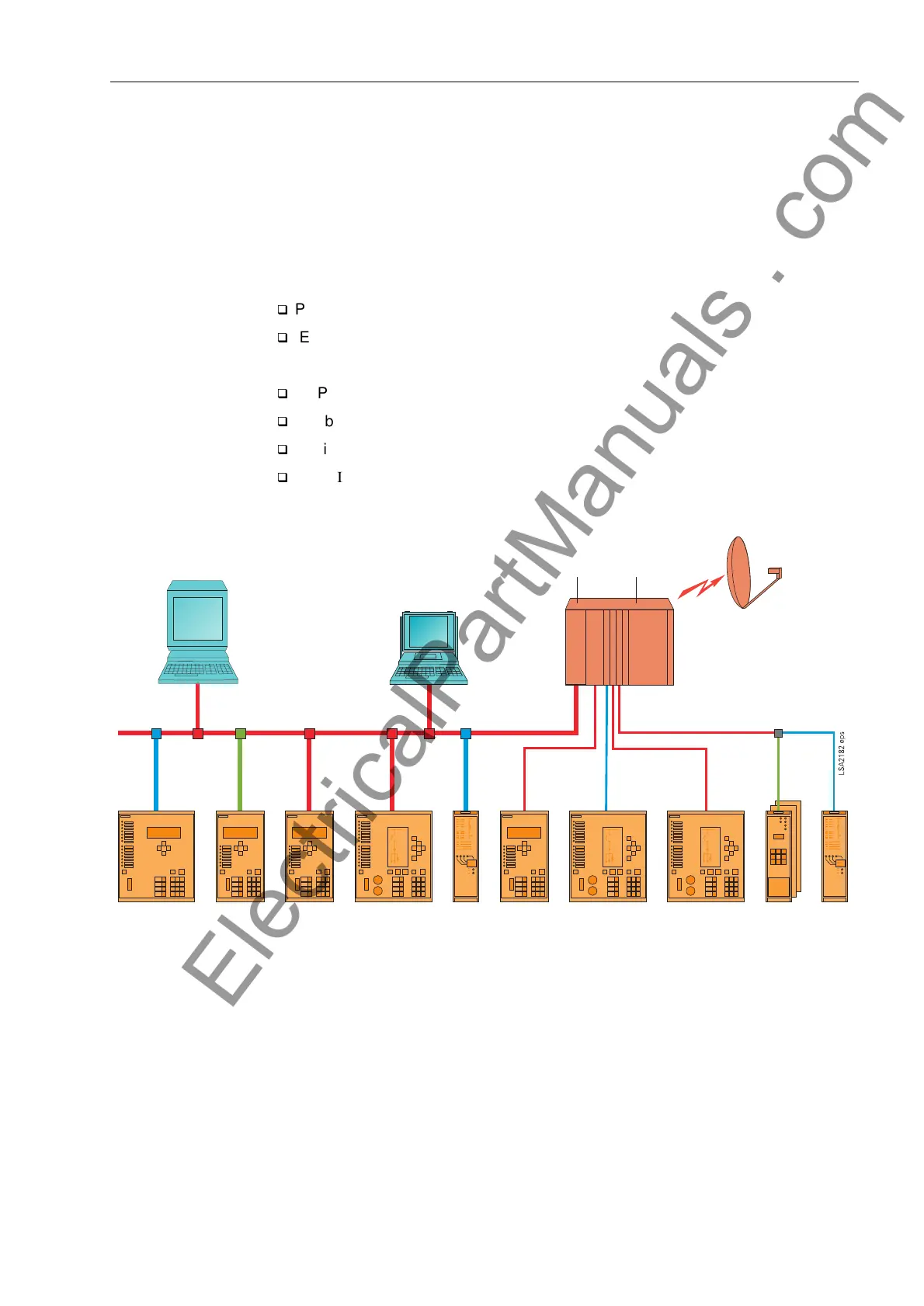

Figure 4-1 Integration of Field Devices in the SICAM Station Control System, example
Refer to the sample configuration in Figure 4-1. In the case when data is transmitted
from the field devices it can be processed in the sub-station control device SICAM SC,
displayed at the operating and observation station SICAM WinCC, and transferred by
the remote terminal unit interfaces (via the network channels) to SCADA.
In the case when commands are sent to the devices, equally flexible processing is
possible; that is, substation control operations can be initiated from the network control
centres (SCADA), as well as from the operation and observation unit of the substation
control system.
Operation and Observation
SICAM WinCC
DIGSI 4
SICAM SC
To SCADA
IEC60870-5-101
IEC60870-5-103
Profibus FMS
Time Synchronization
DCF, GPS
Field Devices
