Siemens SIPROTEC 7SJ62 Instruction Manual

Hardware and Connections
2-57SJ62 Manual
C53000-G1140-C121-1
2.1.2 Connections to Threaded Terminals
Terminal blocks for the threaded connections are designated as:
Terminal blocks for voltage connections, and
Terminal blocks for current connections.
A simple flat-blade 6x1-mm screwdriver can be used to turn the slotted screws in ei-
ther terminal block type.
Terminal Blocks for
Voltage
Connections

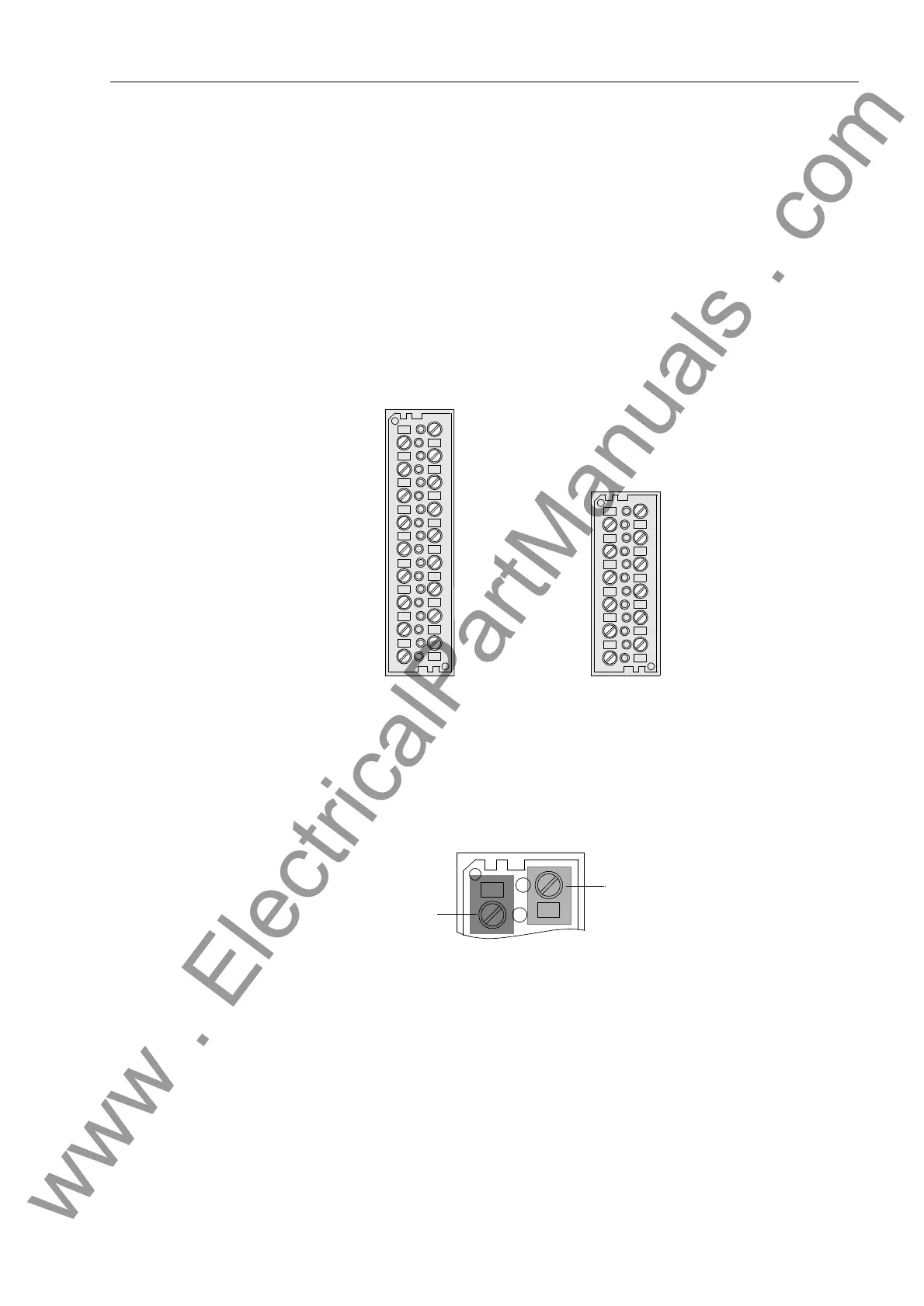

The two available versions of terminal blocks for voltage connections are shown in Fig-
ure 2-3.
Figure 2-3 Terminal Blocks of Threaded Terminals for Voltage Connections — Rear View
The numbering system for the threaded terminals is illustrated in Figure 2-4.
Figure 2-4 Correlation between Threaded Terminals and Connection Numbers (example)
18 Terminal 12 Terminal
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
1
2
3
4
5
6
7
8
9
10
11
12
1
2
Connection Terminal 1
Connection Terminal 2
