Operators Tools
7-317SJ62 Manual
C53000-G1140-C121-1
From PC with
DIGSI
®
4
To manually enter the date and time into the device:
Click on 'HYLFH in the menu bar as shown in Figure 7-33. Select the command 6HW
&ORFN.

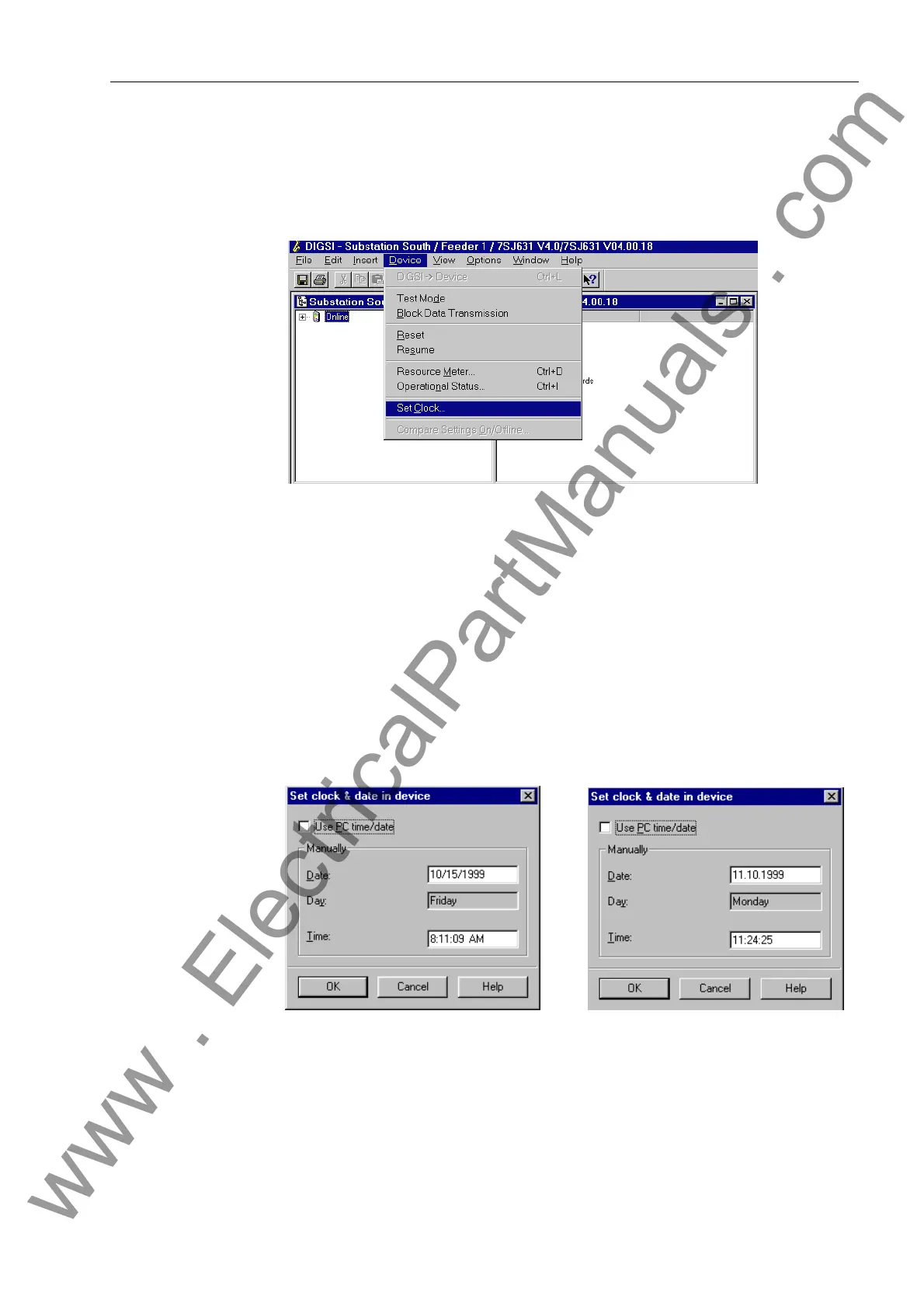

Figure 7-33 Selecting The Command 6HW&ORFN in DIGSI
®
4
A dialog field, 6HWFORFNGDWHLQGHYLFH, is opened. The displayed values
are the present date and time. The day of the week is automatically derived from the
date — and cannot be edited.
• Edit the input fields 'DWH and 7LPH. The format depends on your regional settings
of the PC. See Figure 7-34.
Date: mm/dd/yyyy or dd.mm.yyyy
Time: hh.mm.ss
Click on 2. to transfer the entered values into the device. The previous values are
changed and the dialog field is closed.
Figure 7-34 Dialog Field: 6HWFORFNGDWHLQGHYLFH
To change the time offset or tolerance time for clock signal error, double click on 6HW
WLQJV in the navigation window. See Figure 7-35.
:
