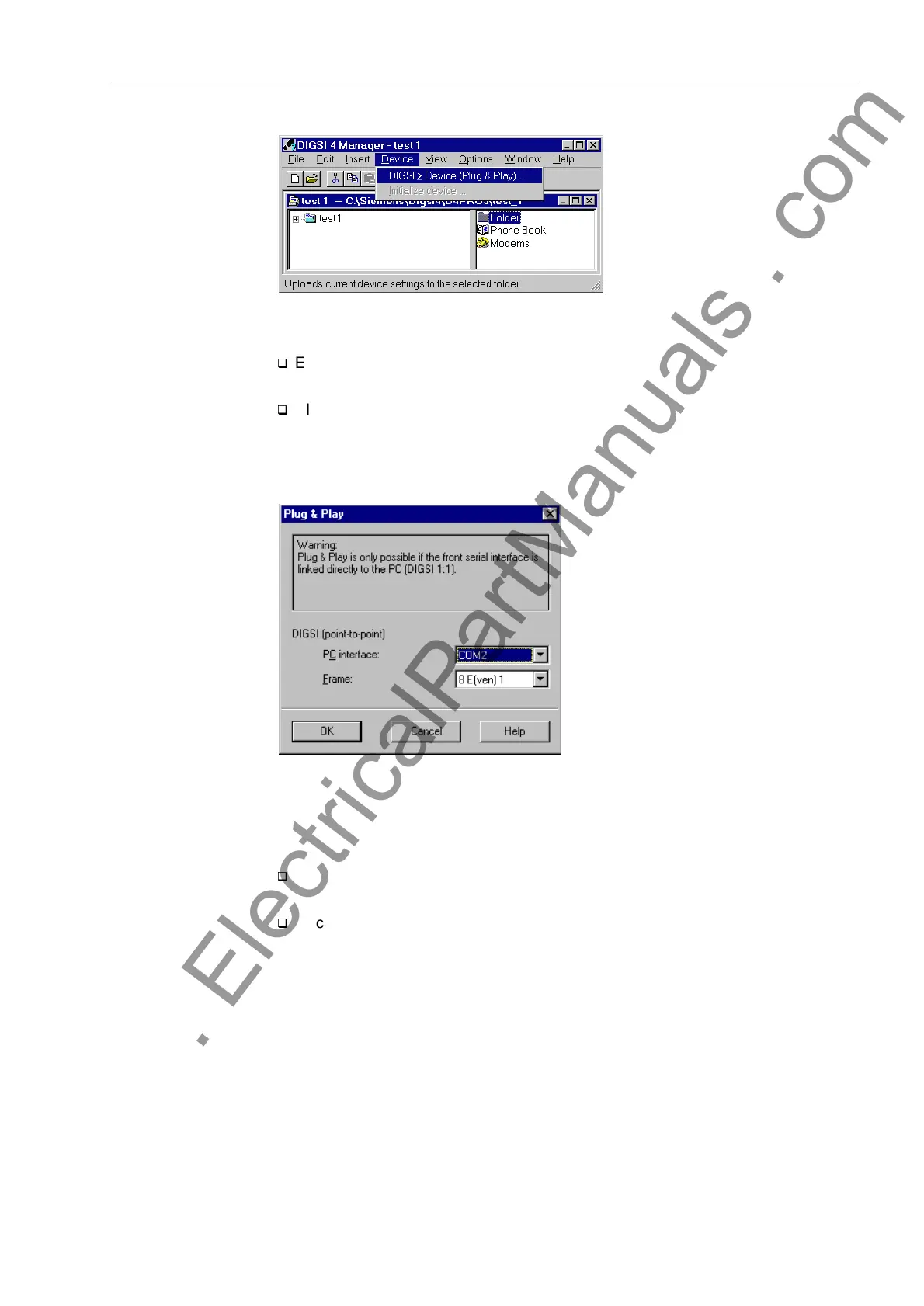

Figure 3-5 Dialog Field for Data Transfer
q
Enter the designation of the PC serial interface (COM 1,2, 3, or 4) and select in the
popup list under )UDPH the transfer format, to be used in making the connection.
q
Click on 2.. DIGSI
®
4 automatically determines the type of device present and
reads the settings needed for communication (transfer format, transfer speed)
through the interface.
Figure 3-6 Plug & Play Dialog Box for Communication between Device and PC
A direct connection is then established (on-line), the data are exchanged between the
PC and the device, and the initial window for DIGSI
®
4 opens, as shown on Figure 3-7.
q
By double clicking 2QOLQH in the navigation window (left window), the structure
opens (directory tree).
q
By clicking on one of the menu items offered there, the associated contents become
visible in the right window.
