6 - 8 Replacing boards / replacing components
• Remove the cover on the front side of the C-arm by removing the screws (I.I. side, refer
to Fig. 3).
• Move the I.I. into the service position. Refer to chapter 1, I.I. service position.
• Remove both attachment screws for the control section in the I.I. flange of the C-arm (ar-
row/Fig. 4).
• Carefully remove the control section from the C-arm and disconnect all the plugs.
• Disconnect the protective conductor.
• Remove the VIDEOMED DC camera from the I.I.
• Refer to Replacing boards / Replacing components VIDEOMED DC.

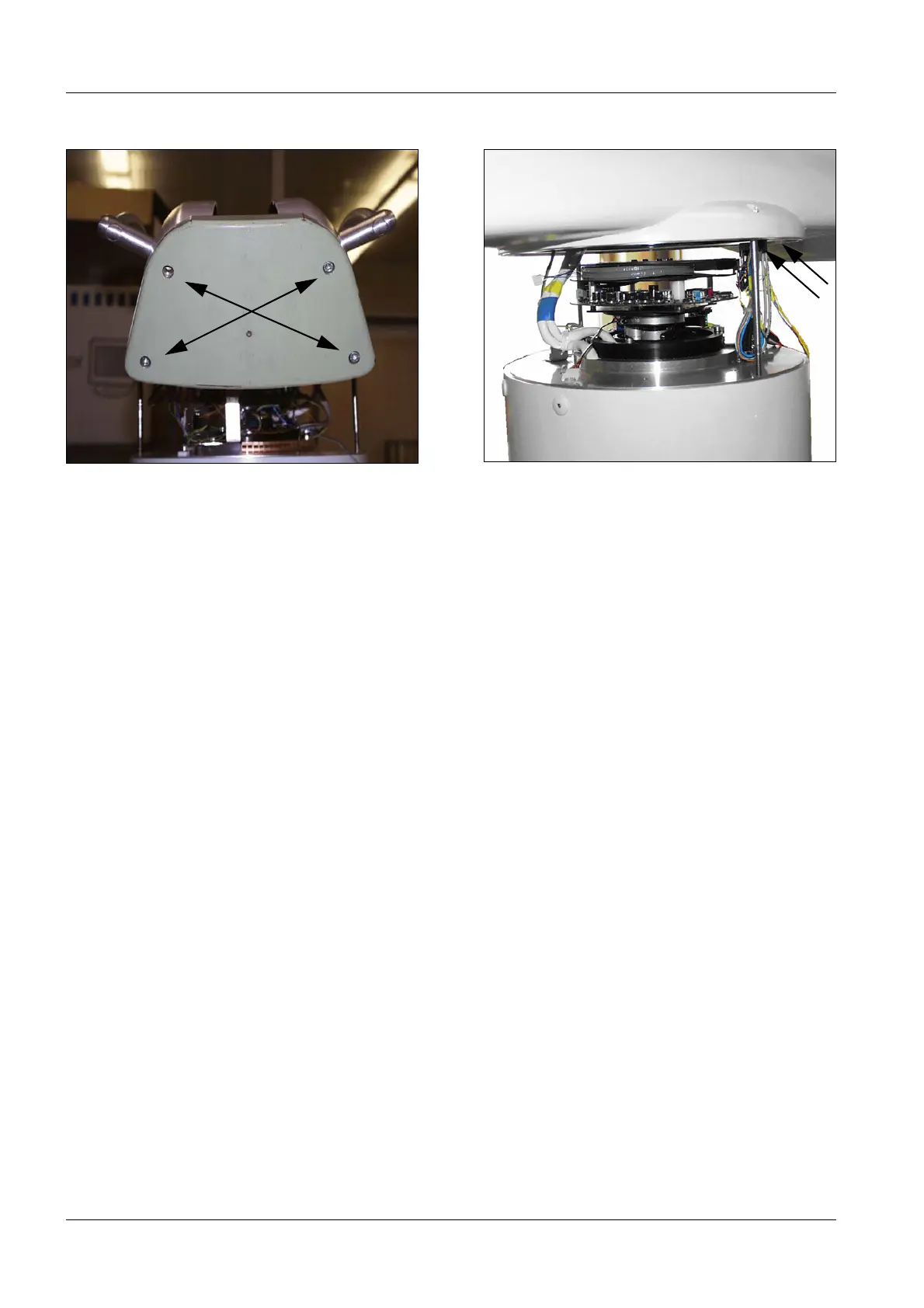

Fig. 3 Fig. 4
