Configuration in STEP 7
5.6 Configuring networks and network nodes in STEP 7 / NetPro
TIM DNP3
System Manual, 06/2014, C79000-G8976-C253-03
103

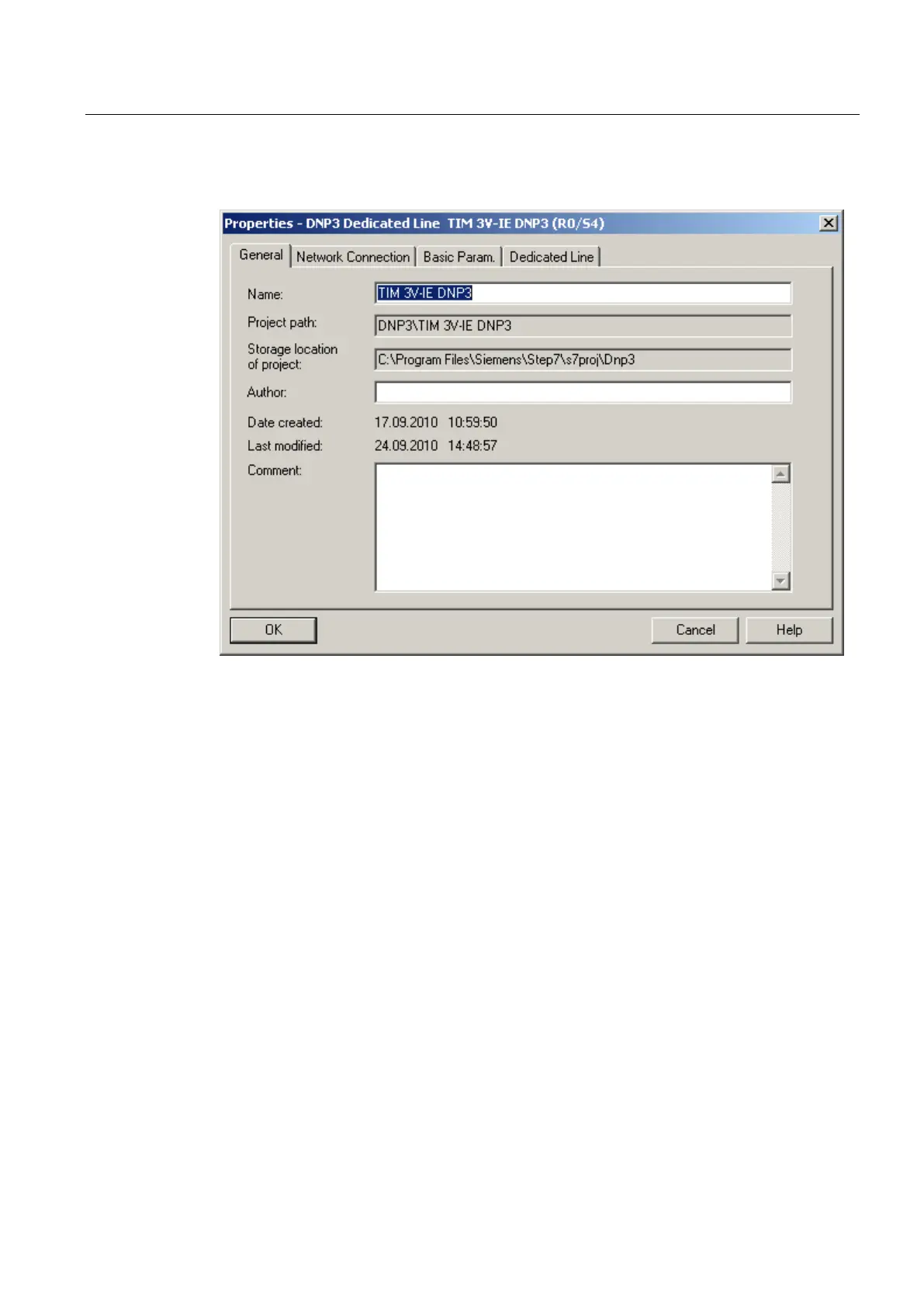

Figure 5-15 Properties - DNP3 Dedicated Line TIM dialog, General tab
The following parameters are available in the General tab:
● The "Name" box displays the name of the module in SIMATIC stations. You can only
change the default interface name in SIMATIC PC stations and other stations. A new,
modified name appears in the SIMATIC Manager and in the network configuration.
● The project path is displayed.
● The storage location of the project is displayed.
● In the Author input box, you can enter the person who created the configuration.
● The date created is displayed.
● The date of the last modification is displayed.
● In the Comment input box, you can enter comments with up to 254 characters.
