The SINAUT Configuration Tool
6.5 The Subscriber Administration
TIM DNP3
System Manual, 12/2015, C79000-G8976-C253-04
153
6.5.3.2
"Info" tab
Info tab

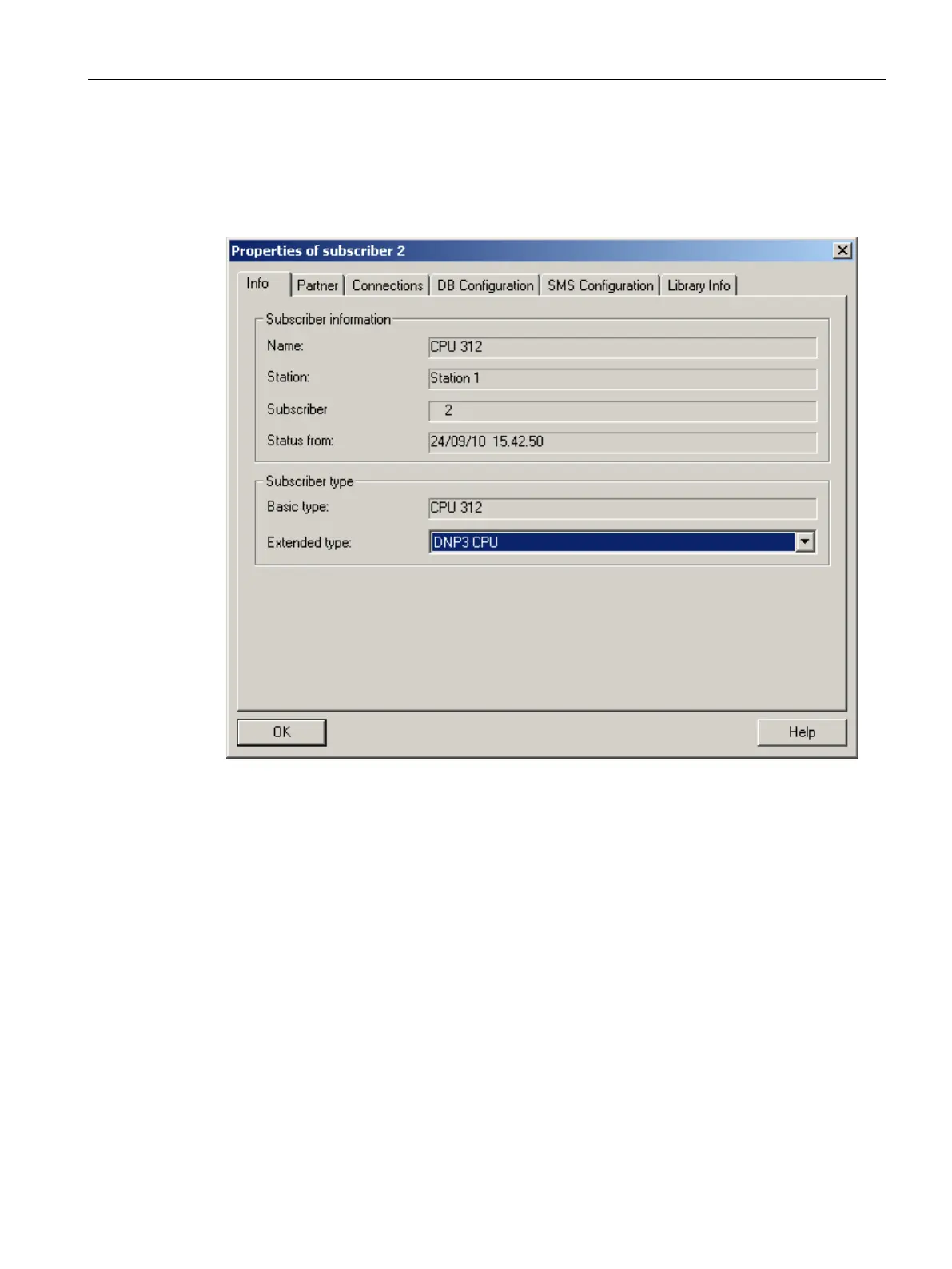

Image 6-6
Properties of subscriber dialog (CPU), Info tab
The Info tab displays the following information on the selected subscriber:
●
Name shows the default name of the module or the name assigned in network
configuration
●
Station displays the set network node type
● The
subscriber number is displayed
●
Status from displays the date of the last configuration
● The
date created is displayed.
●
Basic type displays the network object type from the network configuration
●
Extended type displays the extended network object type adopted in the NetPro (for
example DNP3 CPU, DNP3 TIM, DNP3 master station)
To display a DNP3-CPU, a completed connection configuration is required.
