Siemens TIM 4R-IE DNP3 - Dialogs for Td7 Ontim

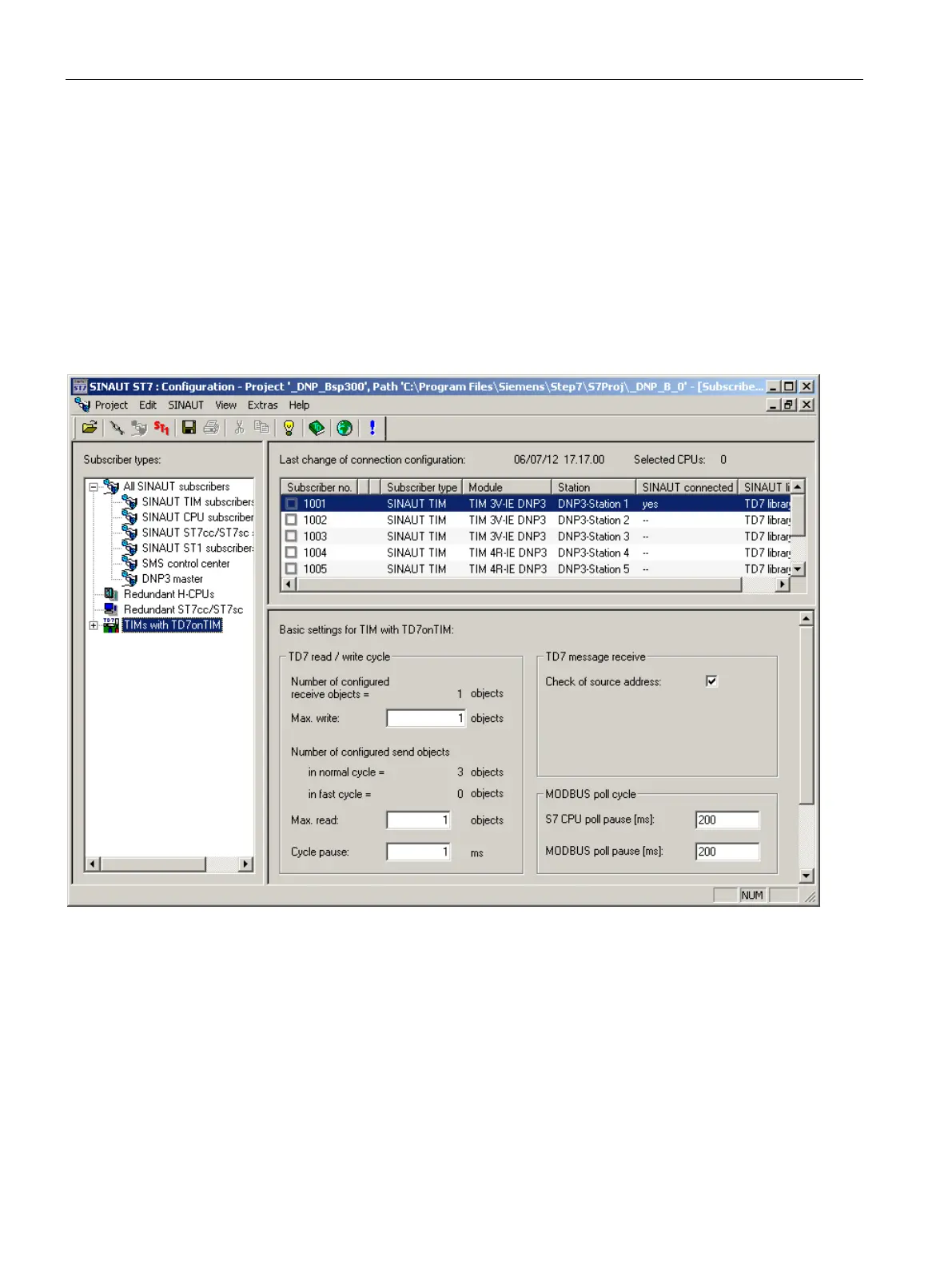

The SINAUT Configuration Tool
6.6 TD7onTIM
TIM DNP3
168 System Manual, 06/2014, C79000-G8976-C253-03
Object
group
Variation
Format according
to the DNP3
specification
Station type
TD7onTIM object
S7 data
type
DNP3 level of the
partner ***
7 Analog input event
- 32-bit float with
time
Station
Dat12D_S
REAL DNP3 level 5 only
Master
station
Dat12D_R
40
*
,
**
1 Analog output
status - 32-bit with
flag
Station
Dat12D_R
DINT
Par12D_R **
As of DNP3 level 4
Master
station
Par12D_S
**
As of DNP3 level 4
2 Analog output
status - 16-bit with
flag
Station Ana04W_R,
Mean04W_R
WORD
Set01W_R **
As of DNP3 level 4
Dat12D_R BYTE, INT,
WORD
Master
station
Set01W_S
**
WORD As of DNP3 level 4
3 Analog output -
32-bit float with
flag
Station Dat12D_R REAL DNP3 level 5 only
41 1 Analog output -
32-bit
Station
Dat12D_R, Par12D_R
DINT
Master
station
Dat12D_S
Par12D_S ****
DINT
2 Analog output -
16-bit
Station Ana04W_R,
Mean04W_R,
Set01W_R
WORD
Dat12D_R BYTE, INT,
WORD
Master
station
Ana04W_S,
Mean04W_S;
Set01W_S ****
WORD
Dat12D_S BYTE, INT,
WORD
3 Analog output -
32-bit float
Station
Dat12D_R
REAL DNP3 level 5 only
Master
station
Dat12D_S
42
*
,
**
3 Analog output
event - 32-bit with
time
Station
Par12D_R **
DINT As of DNP3 level 4
Master
station
Par12D_S
**
4 Analog output
event - 16-bit with
time
Station
Set01W_R **
WORD
Master
station
Set01W_S
**
110 1 ... 255 Octet string Station /
master
station
Dat12D_R, Dat12D_S CHAR
111 1 ... 255 Octet string event
Station
Dat12D_S
CHAR
Master
station
Dat12D_R
