Network structures and configurations
2.5 Configuration variants with IP-based WAN
TIM DNP3
System Manual, 06/2014, C79000-G8976-C253-03
47
Configuration variants with IP-based WAN
Hierarchical networks with node stations
The two following examples illustrate configurations in a star or ring topology.
You will find hierarchical network structures with node stations in the following section
Configuration variants with classic and IP-based WAN (Page 49). The hierarchical setup with
node stations shown there also applies to IP-based networks.

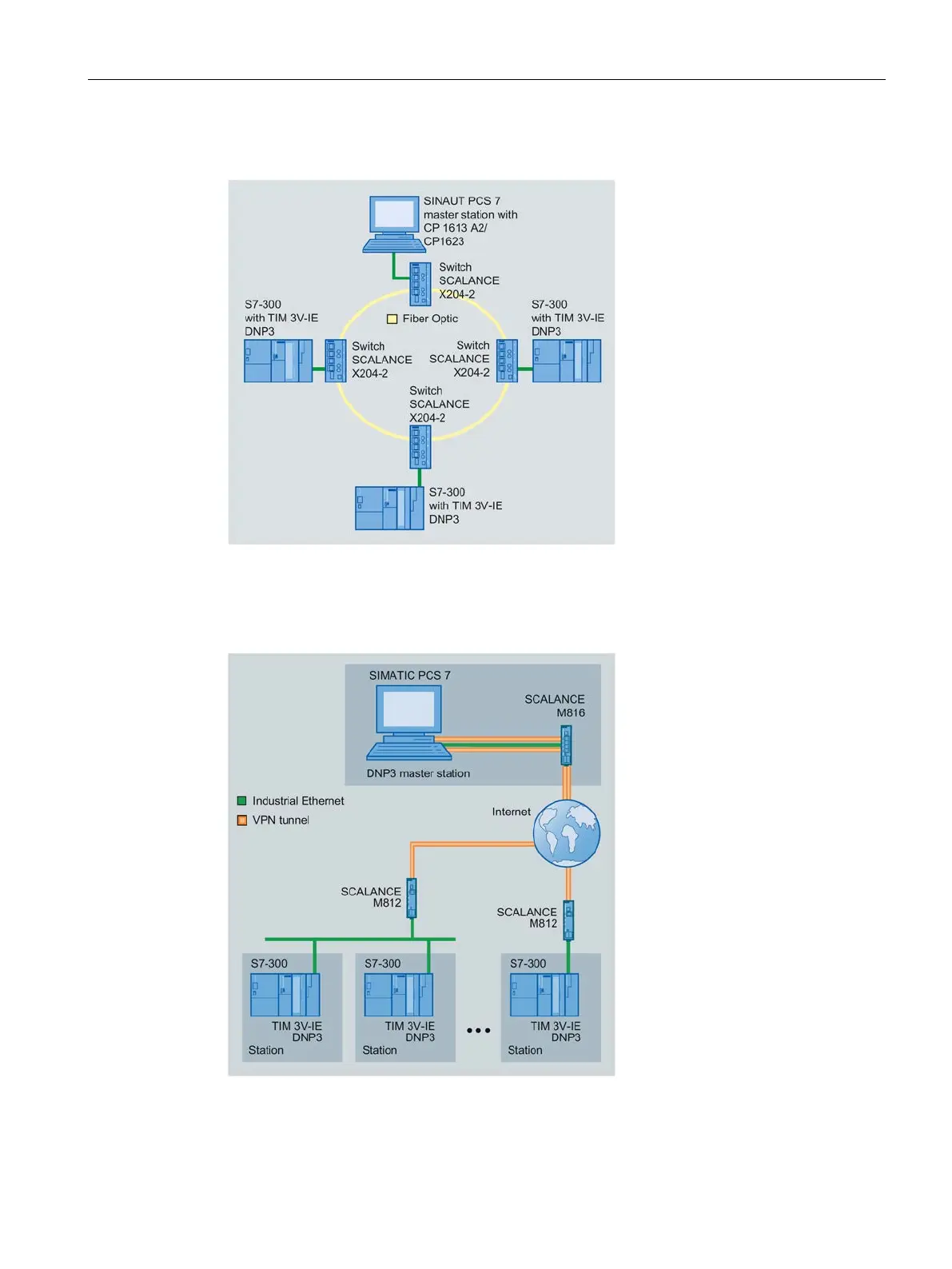

IP-based optical network, linking via switches in a ring topology
Figure 2-4 IP-based network, linking via switches
