5.4.1 Messerleiste
Anordnung
(1) Lichtbogenkammer
(2) Messerleiste

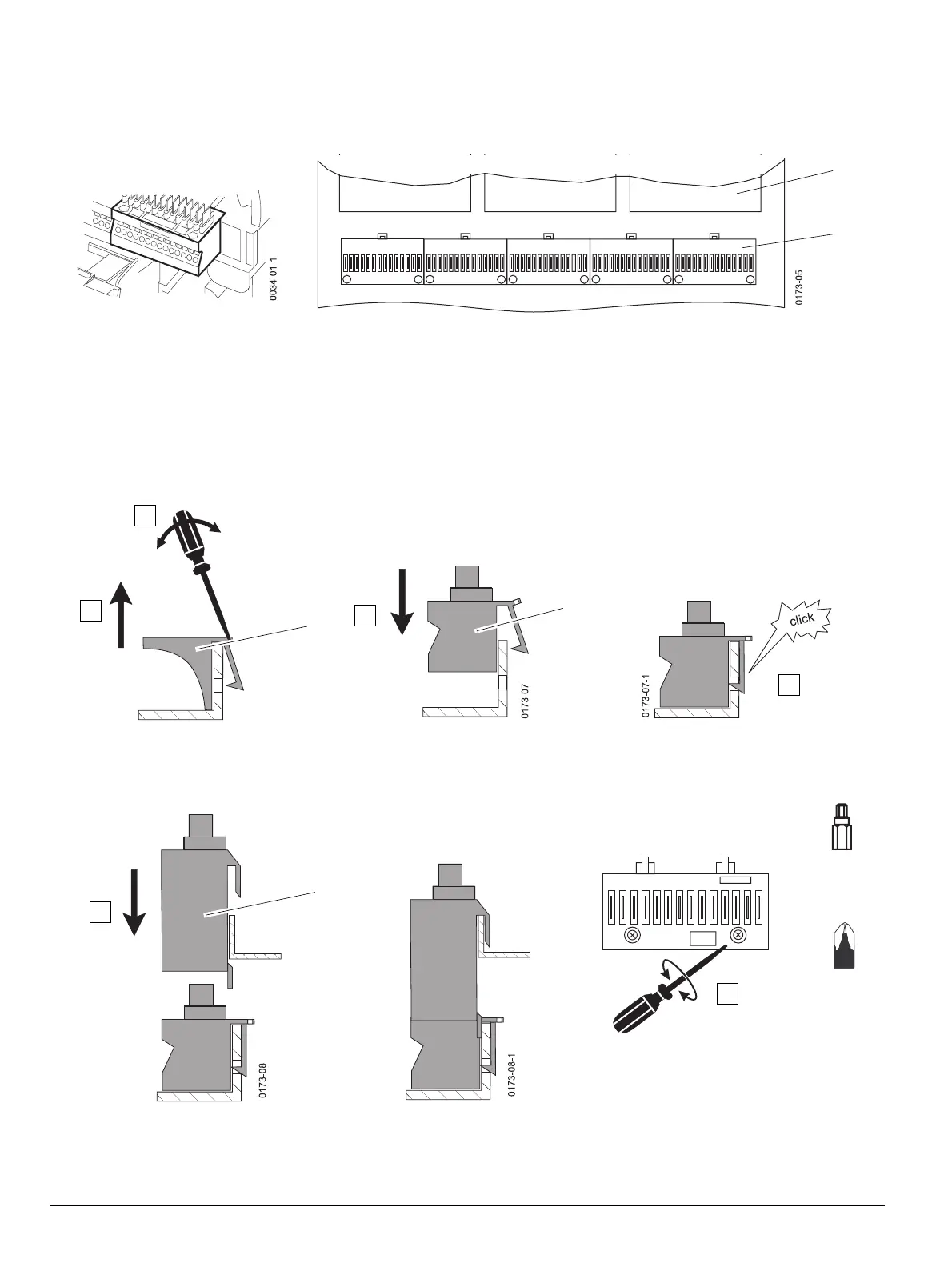

Nachrüsten
(1) Blindblock
(2) Messerleiste
(3) Messerleistenadapter für Einschubschalter BG
II C-Klasse und
BG III
X5
X6X7X8X9
(1)
(2)
COM15
COM16
0173-06
(1)
(2)
1
2
3
4
0173-09
(3)
5
6
0,7 Nm
PH 1
6 lb-in
TX 8
or
5.4.1 Secondary Disconnect
Arrangement
(1) Arc chute
(2) Secondary disconnect block
Field installing
(1) Dummy module
(2) Secondary disconnect block
(3) Secondary disconnect adapter blo
ck for draw-out circuit brea-
kers FS II C-class and FS III
