Simplex 4007ES Programmer's Manual

13-5
4007ES Panel Programmer Manual (579-1167)
Adding or Editing Network Information, Continued
Procedure to
Declare Public
Points
Use the following procedure to define the panel’s public points.
1. Click on the Network tab shown in the upper right corner of Figure 13-1.
2. Right click on the Public Points folder and select the Edit Public choice. The tag list is
shown in Figure 13-3.
3. Position the highlight on a point and press the space bar to tag the point. A >> symbol is
shown to the left of the point to indicate that it is selected. (To remove this symbol and
deselect a point, highlight the point and press the space bar again.)
To select a contiguous group of points, click on the first point in the group, press the SHIFT
key and click on the last point in the group you want to select.

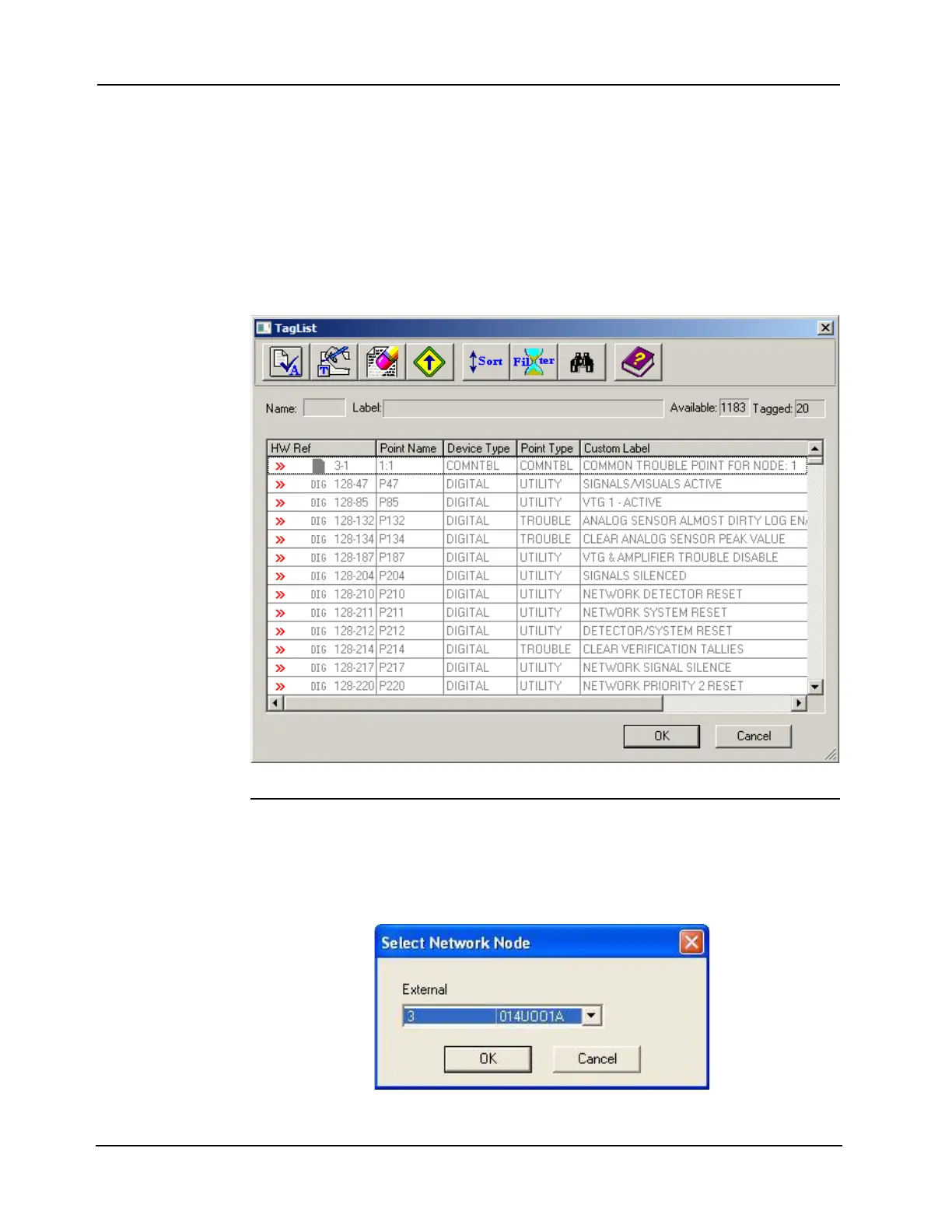

Figure 13-3. Public Points Tag List
Procedure to
Declare External
Points
Use the following procedure to define the panel’s external points.
1. Right click on the External Points folder and select the Edit Externals choice. The dialog
shown below appears. Click on the drop down list box and select the number of the node
containing the points you want to declare external.
Figure 13-4. Select Network Node
Continued on next page
