Simplex 4007ES Programmer's Manual

9-10
4007ES Panel Programmer Manual (579-1167)
Custom Control, Continued
General
Information
After you enter a name for the floor group, click Next. A dialog appears, with this dialog you
can specify general information about the application.
.

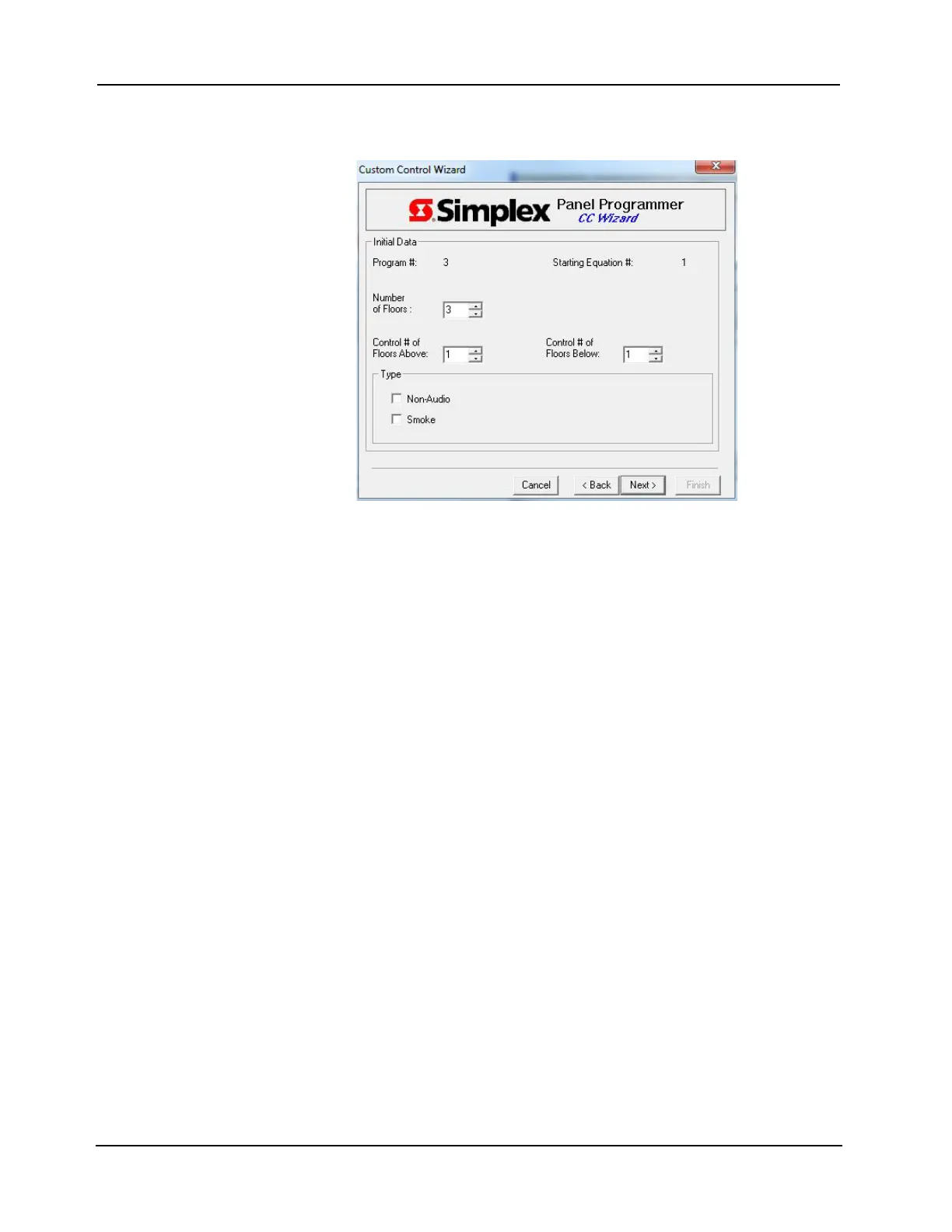

Figure 9-15. Floor Above/Below Data
Specify this information as follows:
• Program #. Use this entry to specify the Custom Control user program in which this
application is to be stored. Three programs are available for user programs.
• Number of Floors. This specifies the total number of floors controlled by the floor
above/below equations.
• Control # of Floors Above. When a fire occurs, this setting determines how many
floors above the fire floor are notified.
• Control # of Floors Below. When a fire occurs, this setting determines how many
floors below the fire floor are notified.
• Type (select all that apply)
- Non-Audio. Select if using non-audio notification appliances
- Smoke. Select this option to control smoke control (damper/AHU) points
Click Next when you are finished.

Simplex 4007ES Specifications

General

Model	4007ES
Category	Fire Alarms
Operating Temperature	32°F to 120°F (0°C to 49°C)
Humidity Range	Up to 93% RH, non-condensing
Display	4.3-inch color touchscreen
Power Supply	120/240 VAC, 50/60 Hz
Network Connectivity	Ethernet, RS-232, RS-485
Addressable Points	250
Communication Protocols	MAPNET II
Notification Appliance Circuits	4 NACs
Total Points	250
Annunciation	Yes
Max Devices	250
Max Notification Circuits	4
Communication Ports	RS-232, USB
