4007ES Panel Programmer Manual (579-1167)
Custom Control, Continued
Using the
Sounder/Relay
Base Wizard
Using the Sounder/Relay Base Wizard you can change the default operation of single station
smoke detectors. Note that the default operation—sounder activates when the alarm threshold
is passed and deactivates when the smoke level drops back below the threshold—is
programmed using the TPHOTO device type. To use the wizard to change the default
operation, you must assign a device type of SPHOTO or RPHOTO to the device.
1. Start the Sounder/Relay Base Wizard by clicking on the Sounder/Relay Base Operation Wiz-
ard tab, which is located along the bottom left part of the Custom Control window.
2. Right click in the blank area above the tabs. When the list of options appears, select Create
Point Group. A figure similar to appears.
.

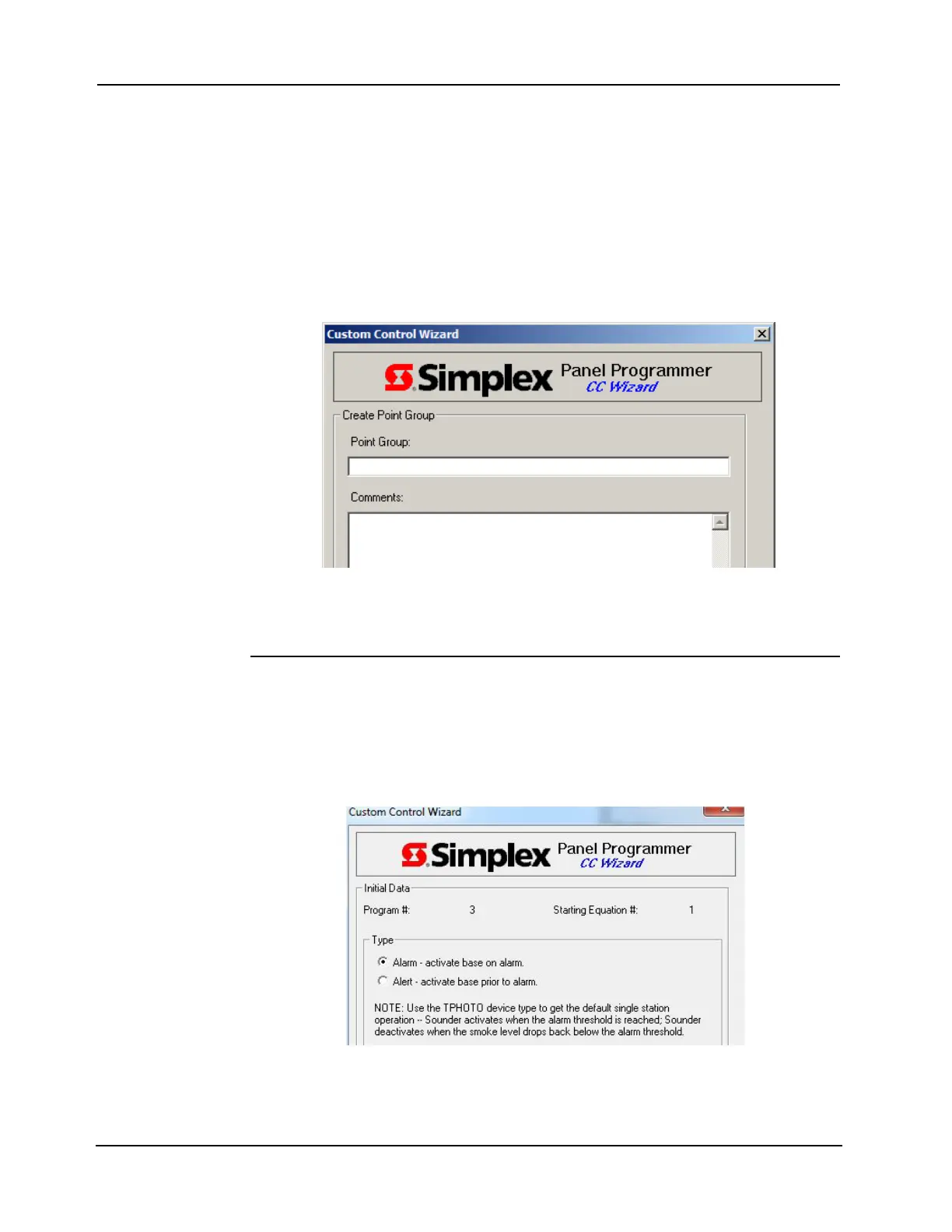

Figure 9-24. Creating Point Group
3. Enter a Name for the group in the Point Group field and enter any comments in the
Comments box. Click Next to continue. Refer to the appropriate section below for specific
information.
Activating Base
on Alarm
Activate base on Alarm configures the single station detectors to activate when the alarm
threshold is reached and to turn off on either reset or silence.
1. To select this option, select the radio button labeled “Alarm—Activate Base on Alarm.”
2. If necessary, you can select a different Custom Control user program. To do this, click on the
control to the right of Program # and select the appropriate program number. Click Next to
continue.
.
Figure 9-25. Sounder/Relay Base Information
Continued on next page
To Next Page
