A-10
4007ES Panel Programmer Manual (579-1167)
Releasing Specific Controls and Indications, Continued
Abort Switch
Active
Program a LED to display that an abort switch is active in a hazard area. The LED will be on
whenever an abort is activated in during a releasing service alarm. It will not turn on during
normal supervisory conditions.

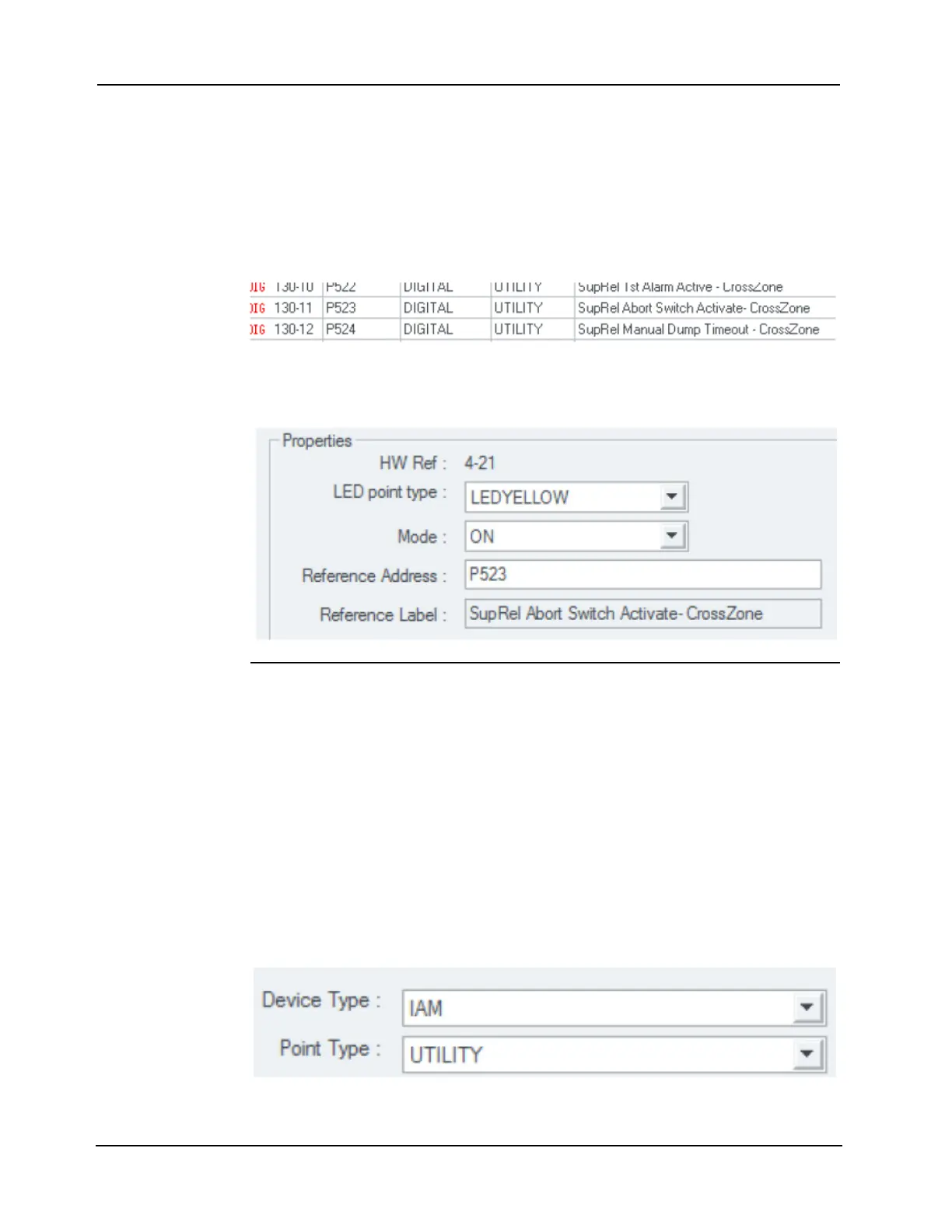

1. Open the digital Pseudo Point list and look for a digital pseudo point created by the
Suppression Release Wizard called SupRel Abort Switch Activate- yourhazardname. It
should be towards the end of the list as the wizard just selects the next available digital
pseudo point.
2. Choose an available Yellow LED on the LED Module located under the Hardware tab. Set
its mode as "ON" and set the reference address to the digital pseudo point that was assigned.
Abort Switch
Trouble during
Normal
Supervisory
Conditions
This programs the panel such that an abort switch causes a trouble when activated during
normal supervisory conditions. If the hazard area enters alarm while the abort switch is
pressed, or the abort switch is activated while the hazard area is in alarm the abort switch will
behave normally.
1. Change / Program the abort IAMs type from SUPABRT to a UTILITY point type in the
Hardware tab for the IDNet devices. These IAMs should have already been assigned to the
Hazard Area in the Suppression Release Wizard. If not, assign them now.
Continued on next page
IMPORTANT:
In order to program the Abort Switch Trouble During Normal Supervisory
Conditions function, disable the Suppression Release Wizard in custom
control. The equations stay in custom control but you are not able to edit them
through the wizard. Any future changes to the hazard area will need to be
manual.
