Simplex 4007ES Programmer's Manual

9-5
4007ES Panel Programmer Manual (579-1167)
Custom Control, Continued
Custom Control
Window
Selecting the Custom Control tab from the main programmer window displays the Custom
Control Window shown in Figure 9-7. This window contains two halves.
• The left half lists user-defined and system-only (non-editable) programs. Click on the
+ sign to the left of an entry to expand the contents of that entry.
• The right half of the window is used for creating user-defined Custom Control
equations. With the Equation Comment text entry box you can enter descriptive text
explaining the operation of the equation. The Equations Area contains a text entry box
for creating and editing an equation’s input and output statements. The Add button
starts the Custom Control Wizard and is used to create new equations. The Edit button
is used to edit existing equations. The Taglist button starts a taglist that can be used for
selecting/deselecting points in an existing equation.

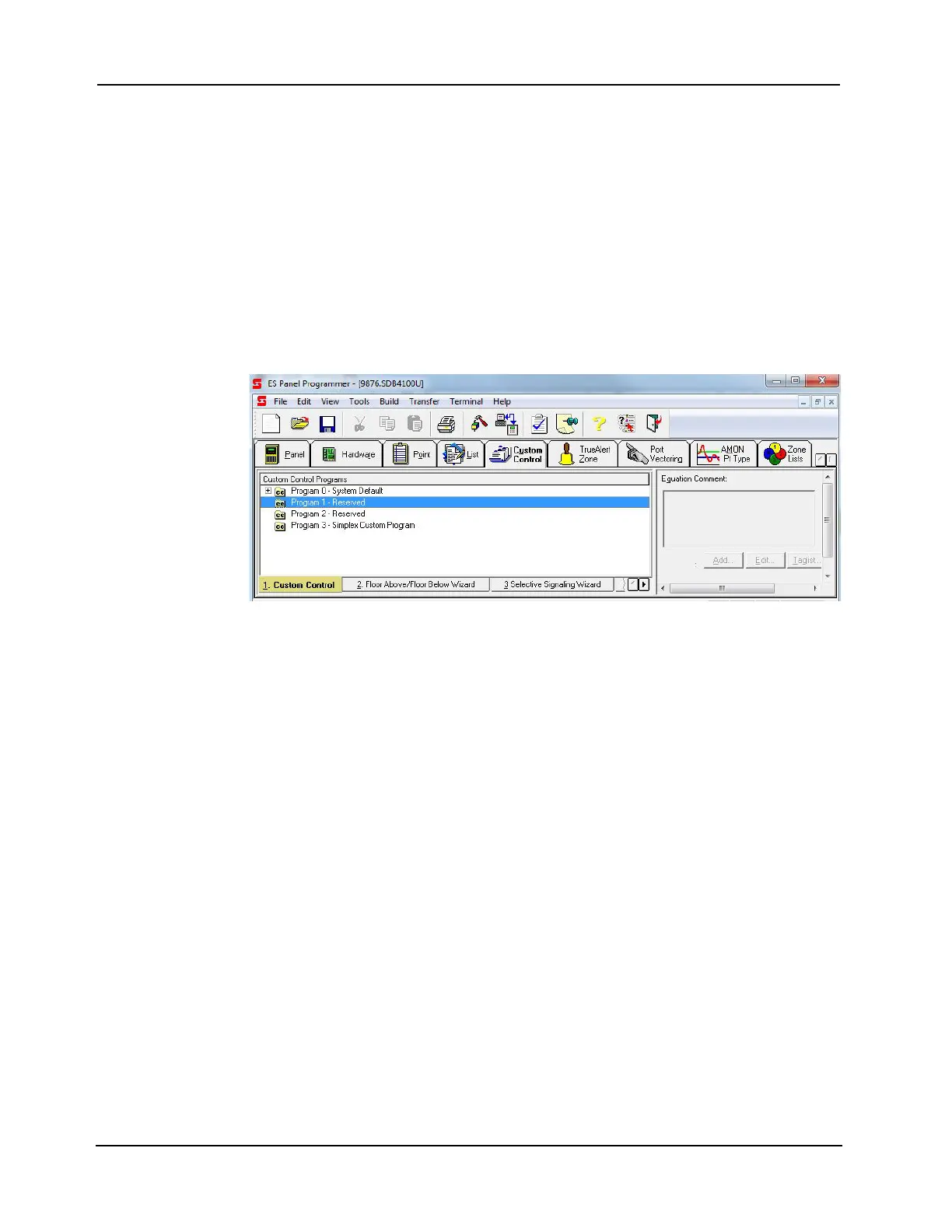

Figure 9-7. Custom Control Window
