9-34
4007ES Panel Programmer Manual (579-1167)
Custom Control, Continued
Deleting Hazard
Area
To delete an existing Hazard Area:
1. Right click the name of the hazard area (see Figure 9-37) and select the Delete Hazard Area
option. A dialog appears warning you that all Custom Control equations associated with the
hazard area will be deleted.
2. Click Delete associated list and pseudo points
3. Click Yes

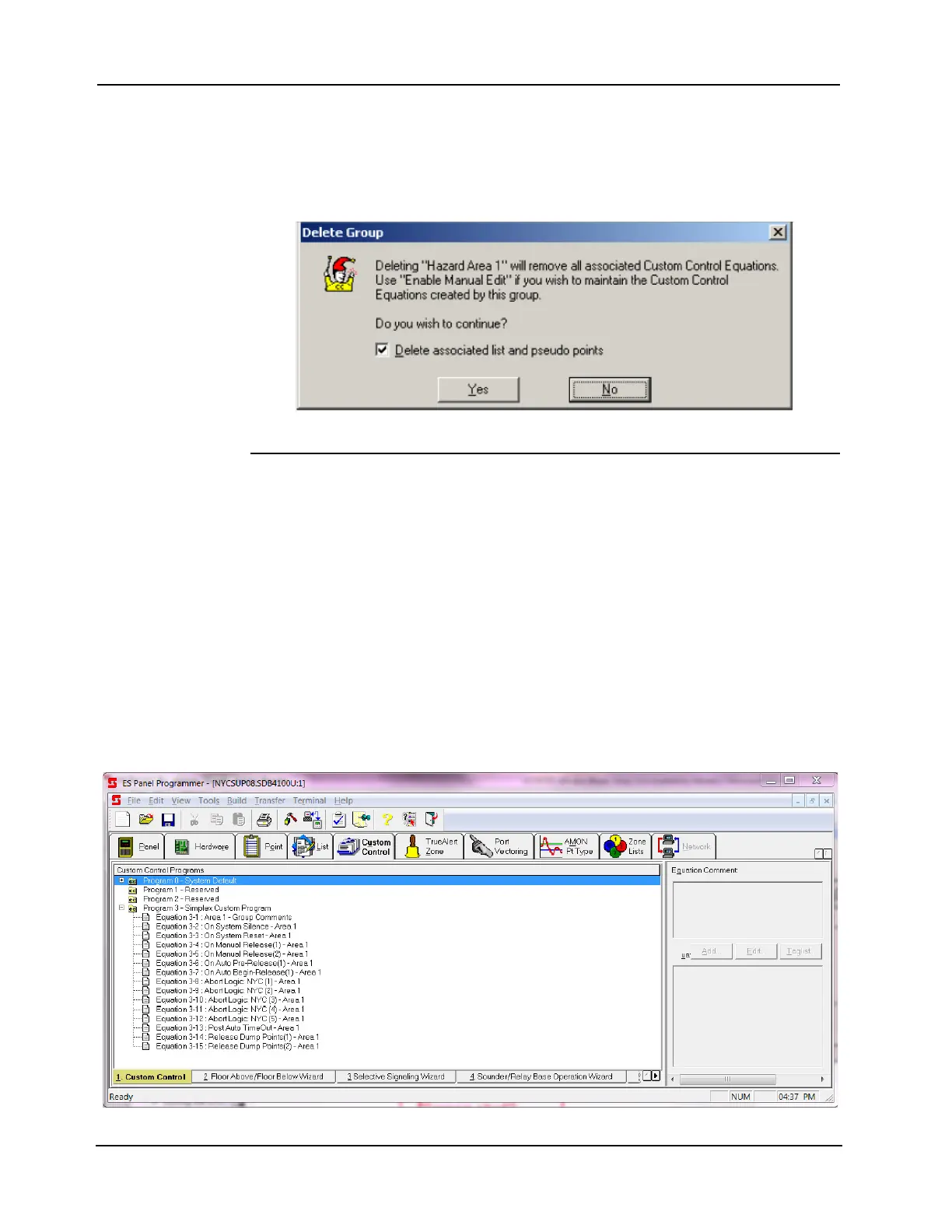

Figure 9-38. Deleting Hazard Areas
Editing Existing
Hazard Area
Existing hazard areas can be edited in the following ways:
• Using the Wizard. Right-click the name of an existing equation (see Figure 9-37) and select
Edit Hazard Area. The wizard screens reappear in sequence. Reselect the options for the
hazard area as necessary.
• Properties. Right click on the name of an existing equation and select Properties. A
properties sheet, containing a series of tabs across the top, appears. Each tab corresponds to
one of the groups of suppression options. Click on each tab and reselect the options for the
hazard area as necessary.
• Custom Control Equations. Right click on the name of an existing equation and select
Manual Edit. Edit the Custom Control equations using Manual Edit, this eliminates the
ability to use the wizard to edit the equations. After selecting this option, click on Custom
Control subtab on the far left at the bottom of the Custom Control window. Select the
program containing the hazard area's equations.
.
Figure 9-39. Manual Edit
To Next Page
