Adding or Editing Network Information, Continued
Procedure to
Declare External
Points
2. Click OK. The tag list shown in Figure 13-5 appears. This taglist contains all of the points
that are currently declared public on the node selected in Step 1 above.

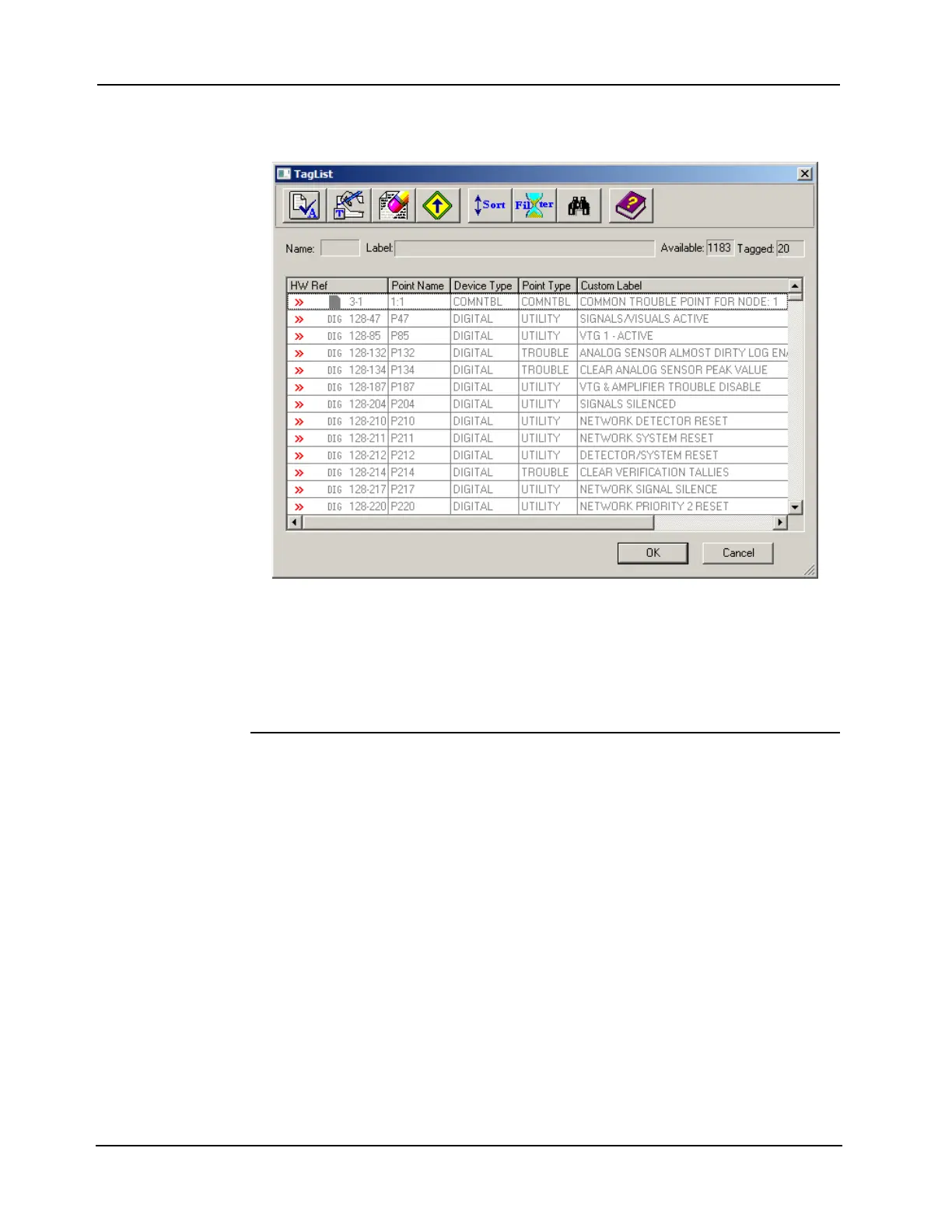

Figure 13-5. Tag List for External Points
3. Position the highlight on a point and press the space bar to tag the point. A >> symbol is
shown to the left of the point to indicate that it is selected. (To remove this symbol and
deselect a point, highlight the point and press the space bar again.)
To select a contiguous group of points, click on the first point in the group, press the SHIFT
key and click on the last point in the group you want to select.
Programming
Network Alarm
Silence
The sections below describe programming Network Silence and Network Reset. These options
can be configured to work in either of the following ways:
• Central Network Silence and Reset. With this type of configuration, only one node
(known as the Central Network Silence/Reset Node) is capable of initiating a Network
Silence or Network Reset.
• Distributed Network Silence and Reset. This setup allows a Network Silence or Network
Reset to be initiated from any node on the network.
