Simplex 4007ES Programmer's Manual

6-18
4007ES Panel Programmer Manual (579-1167)
Editing Standard Component Properties, Continued
48-LED Module To edit the Point Editing tab:
From the Point Editing tab, two view choices are available.
High Level Modes: organizes the LEDs in pairs. Under this view, the Mode options are more
limited:
• OO | On/Off
• TO | Trouble/On
Low Level Modes: shows each LED as individually configurable.

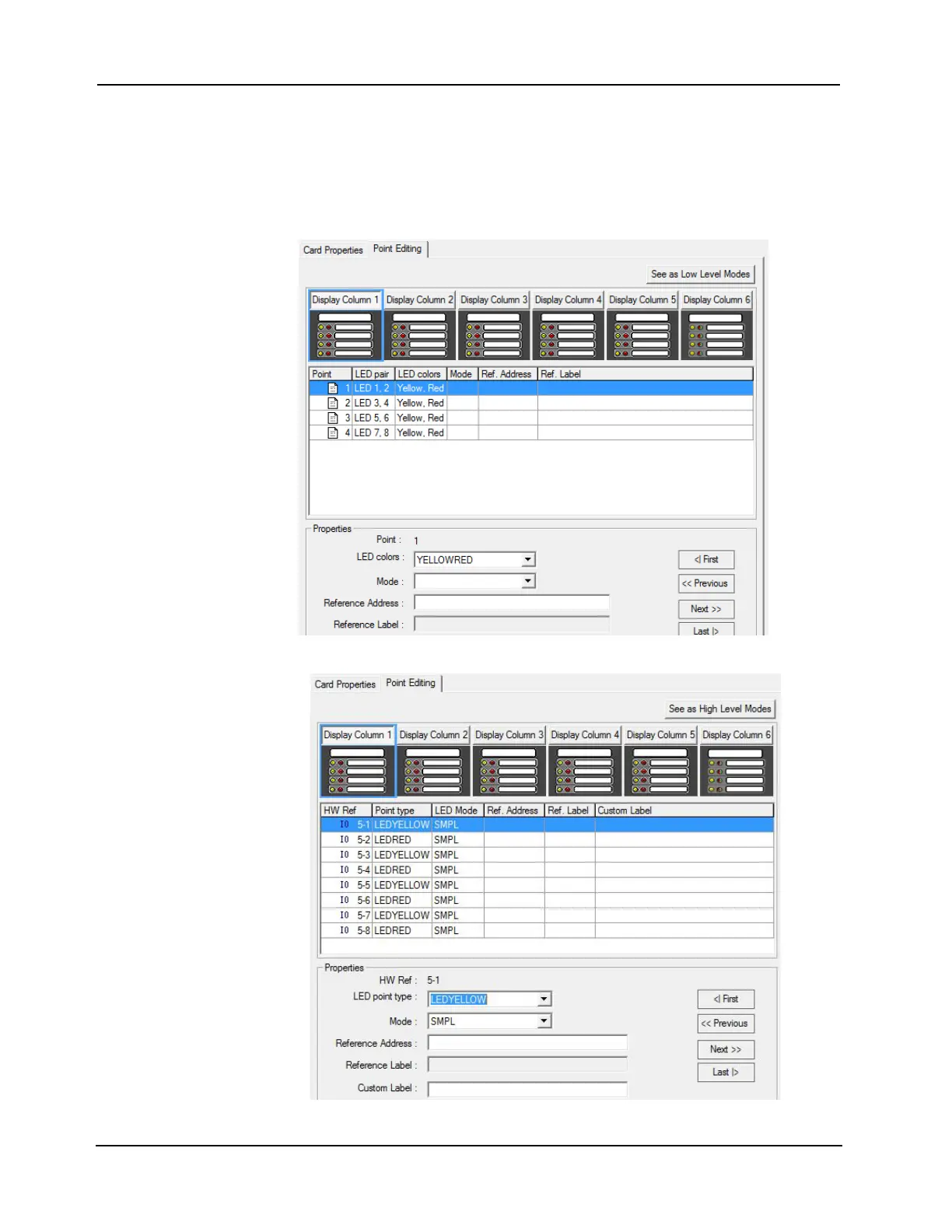

Figure 6-25. 48-LED Module High Level
Figure 6-26. 48-LED Module Low Level

Simplex 4007ES Specifications

General

Model	4007ES
Category	Fire Alarms
Operating Temperature	32°F to 120°F (0°C to 49°C)
Humidity Range	Up to 93% RH, non-condensing
Display	4.3-inch color touchscreen
Power Supply	120/240 VAC, 50/60 Hz
Network Connectivity	Ethernet, RS-232, RS-485
Addressable Points	250
Communication Protocols	MAPNET II
Notification Appliance Circuits	4 NACs
Total Points	250
Annunciation	Yes
Max Devices	250
Max Notification Circuits	4
Communication Ports	RS-232, USB
