A-7
4007ES Panel Programmer Manual (579-1167)
Releasing Specific Controls and Indications
Introduction To comply with ULC standards when using the 4007ES for releasing service, program a Pre-
Discharge red LED, a Discharge red LED, and the abort switches to cause a system trouble
when activated (UL864 requires a system supervisory which is default). You may need to
program a Releasing Service Signal Silence button with yellow LED. If your releasing job
includes abort switches, you are required to program an abort trouble LED.
Notes: 1. Since the LEDs adjacent to the LCD must be used for other ULC indication requirements, the
inclusion of releasing service in the panel requires the additional LED Module (4007-9805).
2. If you have multiple Hazard Areas, repeat the steps below for each Hazard area as required.
Label the insert for the LEDs appropriately to identify the function and the hazard zone that is
being referred to.
Pre-Discharge
LED
Programming
(Red LED)
A Pre-Discharge LED Programming (Red LED) is required for every Hazard Area.
The Pre-Discharge LED activates whenever the system is in the Pre-Discharge State. The LED
will be off when the system has discharged.
An example program follows.

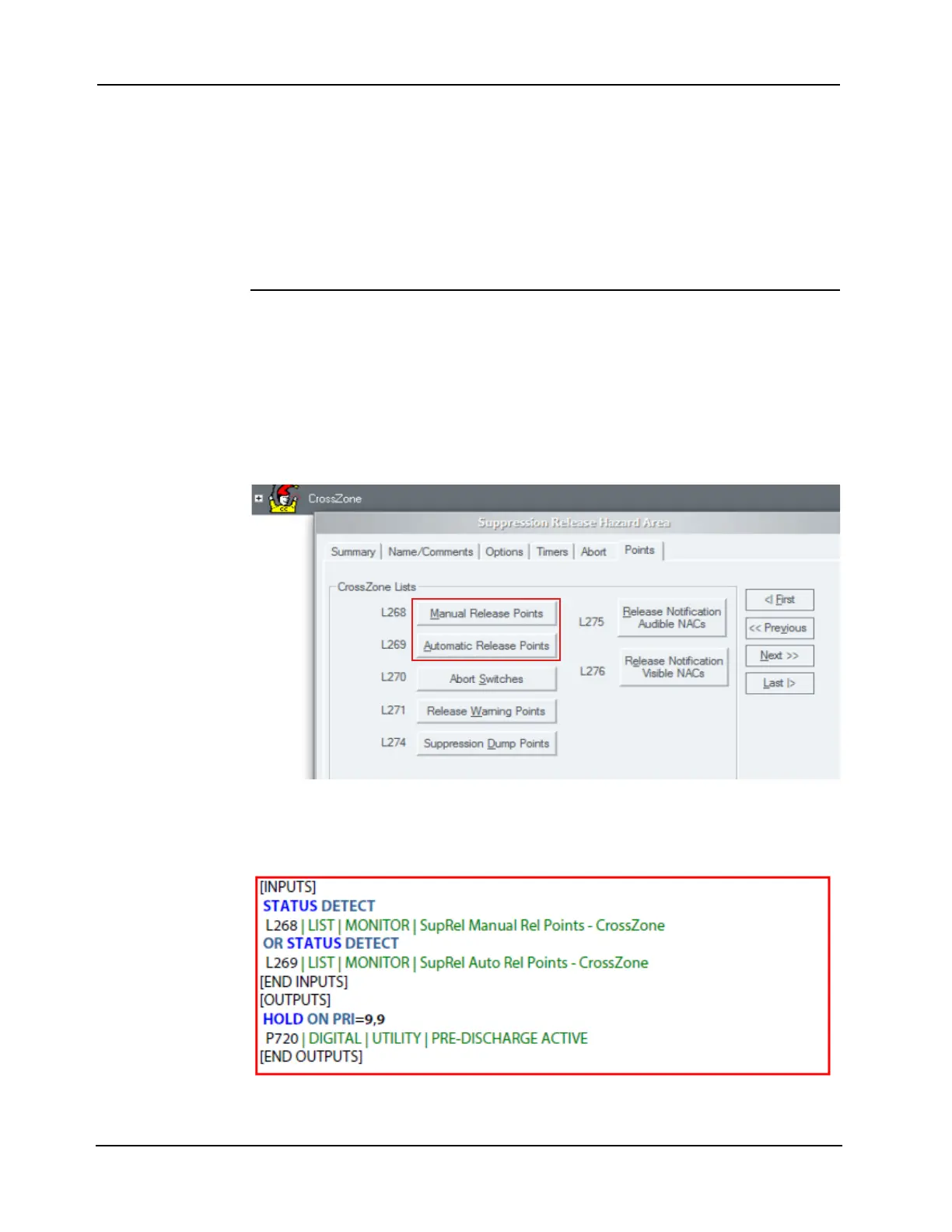

1. Open the suppression releasing wizard for that hazard and write down the list number
created for Manual Release Points and Automatic Release Points (L268 and L269 in this
example).
2. Pick any available digital pseudo point (P720 in this example) and program it to turn ON
whenever a point in the lists from step 1 are detected going active.
Continued on next page
