Simplex 4007ES Programmer's Manual

A-9
4007ES Panel Programmer Manual (579-1167)
Releasing Specific Controls and Indications, Continued
Discharge LED
Programming
(RED LED)
Discharge LED Programming (RED LED) is required for every Hazard Area.
The Discharge LED activates when the suppression release device is in the released state
(solenoid is activated). The LED clears upon system reset or when the solenoid is deactivated.
Below is an example program.

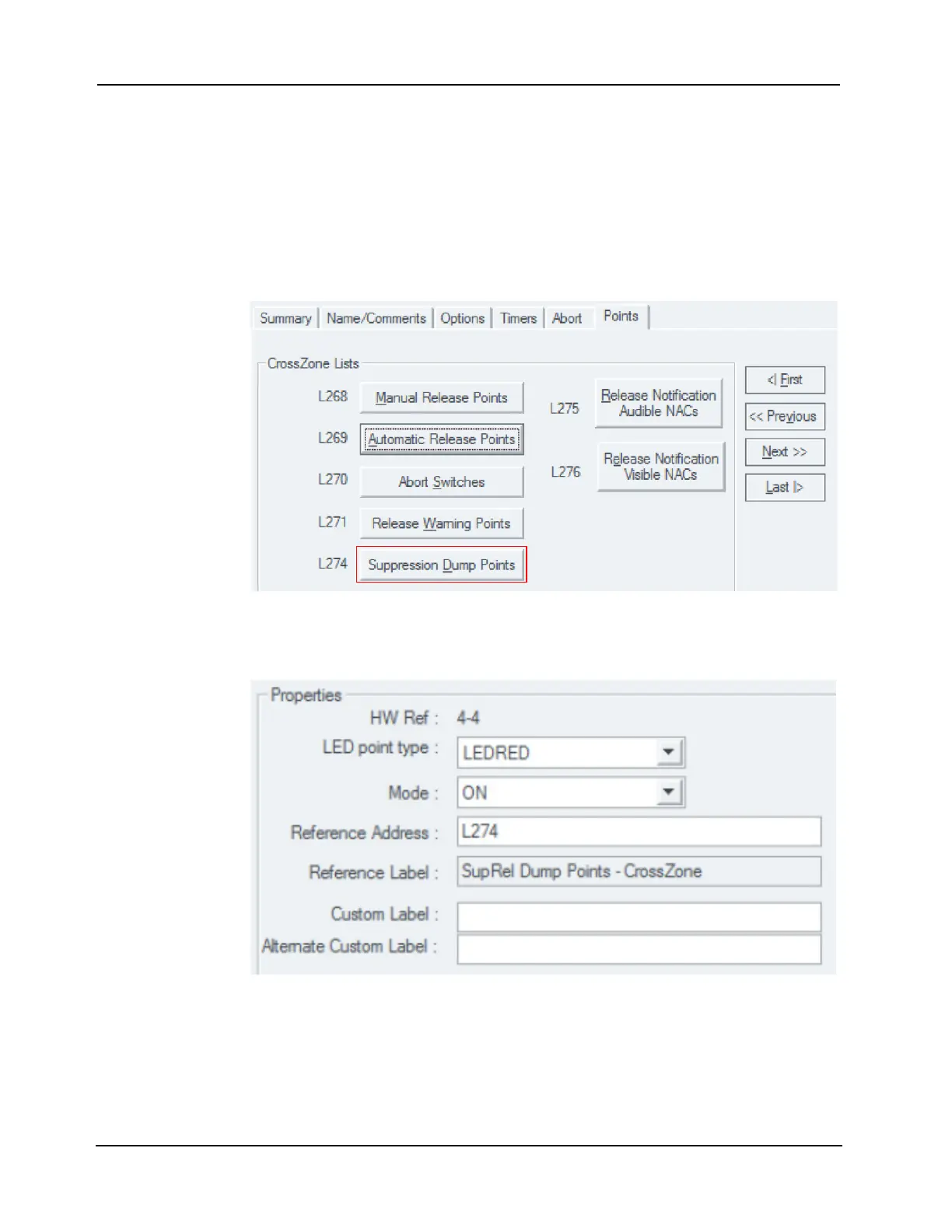

1. Click the Custom Control tab.
2. Click the Suppression Release Wizard subtab.
3. Right-click the title (next to the wizard graphic) and select Properties to open the Hazard
Area.
4. Select the Points tab and write down the List assigned to Suppression Dump Points.
5. Choose an available RED LED on the LED Module located under the Hardware tab. Set its
mode as "ON" and set the reference address to the list that was assigned.

Simplex 4007ES Specifications

General

Model	4007ES
Category	Fire Alarms
Operating Temperature	32°F to 120°F (0°C to 49°C)
Humidity Range	Up to 93% RH, non-condensing
Display	4.3-inch color touchscreen
Power Supply	120/240 VAC, 50/60 Hz
Network Connectivity	Ethernet, RS-232, RS-485
Addressable Points	250
Communication Protocols	MAPNET II
Notification Appliance Circuits	4 NACs
Total Points	250
Annunciation	Yes
Max Devices	250
Max Notification Circuits	4
Communication Ports	RS-232, USB
