9-16
4007ES Panel Programmer Manual (579-1167)
Custom Control, Continued
Activating Base
on Alarm
3. A dialog similar to the following appears. Select the operation for the device as either “Hold
Device ON until Reset” (sounder or relay remains activated until reset) or “Hold Device on
until Silence” (sounder or relay remains activated until signal silence).
.

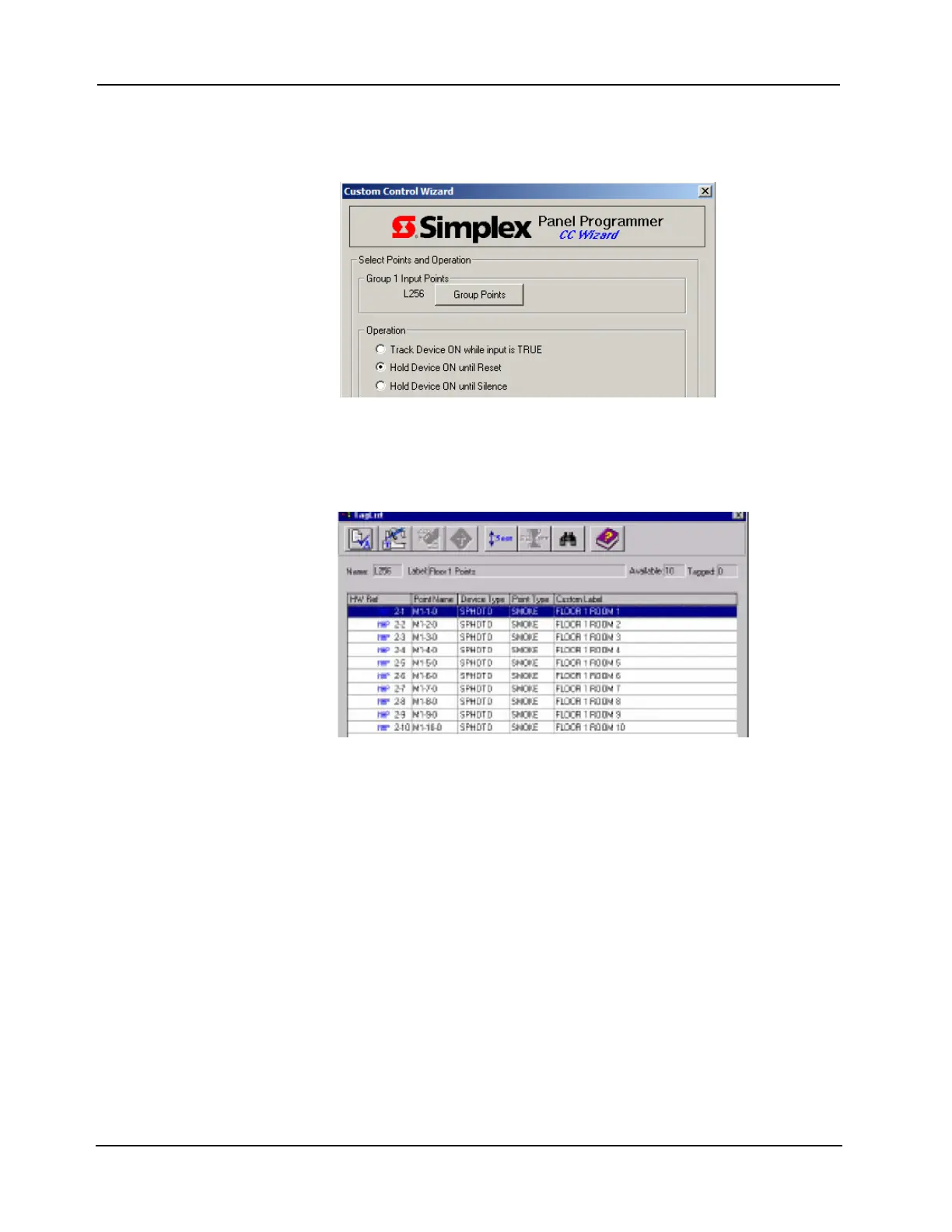

Figure 9-26. Specifying Device Operation
Note: List number L256 is the next available list. It is not specifically L256.
4. Click on the Group Points button. A tag list, containing single station points appears. Use
the up and down arrow keys to move through the list. Use the spacebar to tag (select) a
point. A “>>” symbol appears to the left of the point when it is selected.
Figure 9-27. Tagging Points
5. Click OK to continue. The previous screen appears. Press Next to continue. A screen
showing the Custom Control statements appears. Click Finish.
