- Entire Route - if you want the system to add new routepoints
between the first and the last routepoint of the open route.
-
Selection - if you want to manually select the routepoints that
define the limits for the autorouting, then select the relevant
routepoints. Selected routepoints are colored red.
- Only two routepoints can be selected, and the system
discards any routepoints between your selected start and end
points.
3. Select the accept option to start the automatic routing.
4. When the automatic routing is completed the route appears in
preview mode, and the legs are color coded to indicate safe or
unsafe areas.
- Navionics uses red (unsafe) and green (safe), while C-MAP
uses red (unsafe), yellow (dangerous) and green (safe).
5. Move any routepoints if required when the route is in preview
mode.
6. Select the keep option to accept the routepoints positions.
7. Repeat step 2 (selection) and step 3 if you want the system to
automatically position routepoints for other parts of the route.

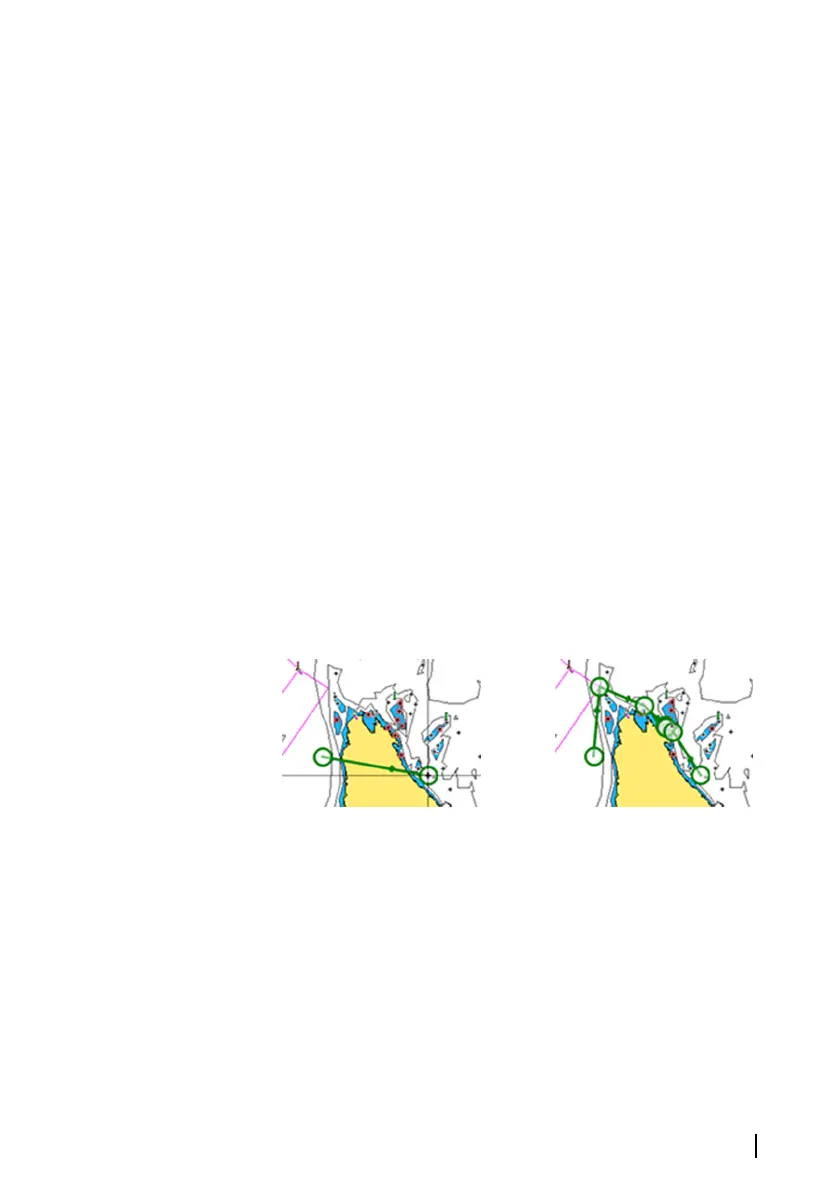

Dock-to-dock Autorouting and Easy Routing examples
• Entire route option used when first and last route points are
selected.
First and last routepoint Result after automatic routing
• Selection option used for autorouting part of a route.
Waypoints, routes, and tracks | GO XSE/XSR Operator Manual
57
