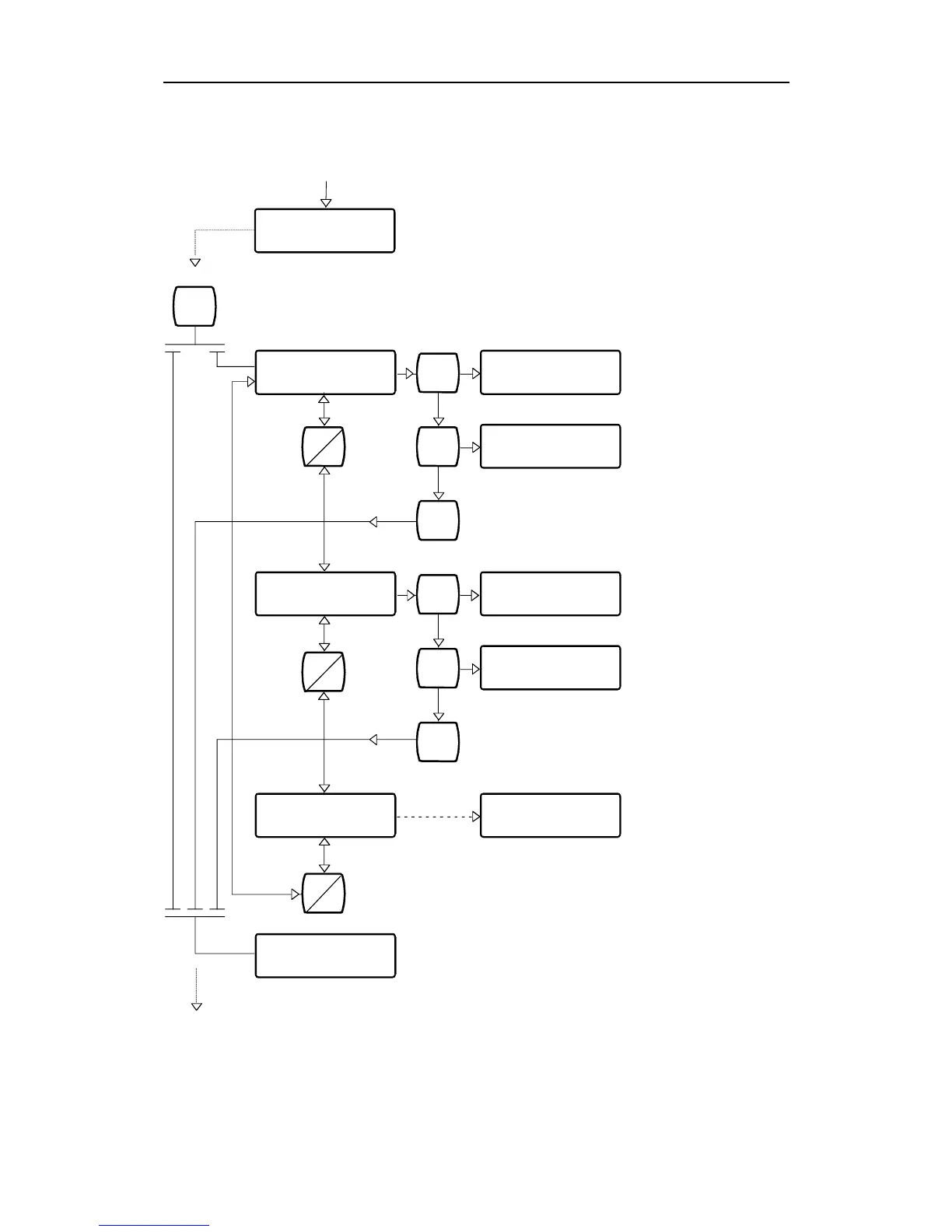

Thruster Function
THRUSTER FUNC.
RUDDER+THRUST
Range: OFF - 32°
Recommended: 5°
Press
INFO
INFO
III
THRUST DB 5°
INFO
III
MIN THRUST 25%
INFO
THRUSTER FUNC.
ONLY THRUSTER
INFO
III
THRUST DB 5°
INFO
III
MIN THRUST 25%
INFO
INC
DEC
THRUSTER FUNC.
ONLY RUDDER
* PARAM SET 2 *
HELMSMAN
INC
DEC
IIIIII
FU/A SCALE: 45°
IIIIII
MIN RADIUS 0.05
INC
DEC
Range: OFF - 100%
Recommended: 25%
Range: OFF - 32°
Recommended: 5°
Range: OFF - 100%
Recommended: 25%
The thruster parameters only appear if
J4, 11-13 "Thruster Ident" on the control
unit are connected (via a switch).
Note:
Thruster deadband.
Min. amount of thrust.
Thruster deadband.
Min. amount of thrust.
The "Param set 2" will appear
in the display after one minute
or immediately when escaping
the loop by pushing another
button, e.g. Rudder.
See Parameter 2 option, page 5-31
