Operation
47
850--164186 A

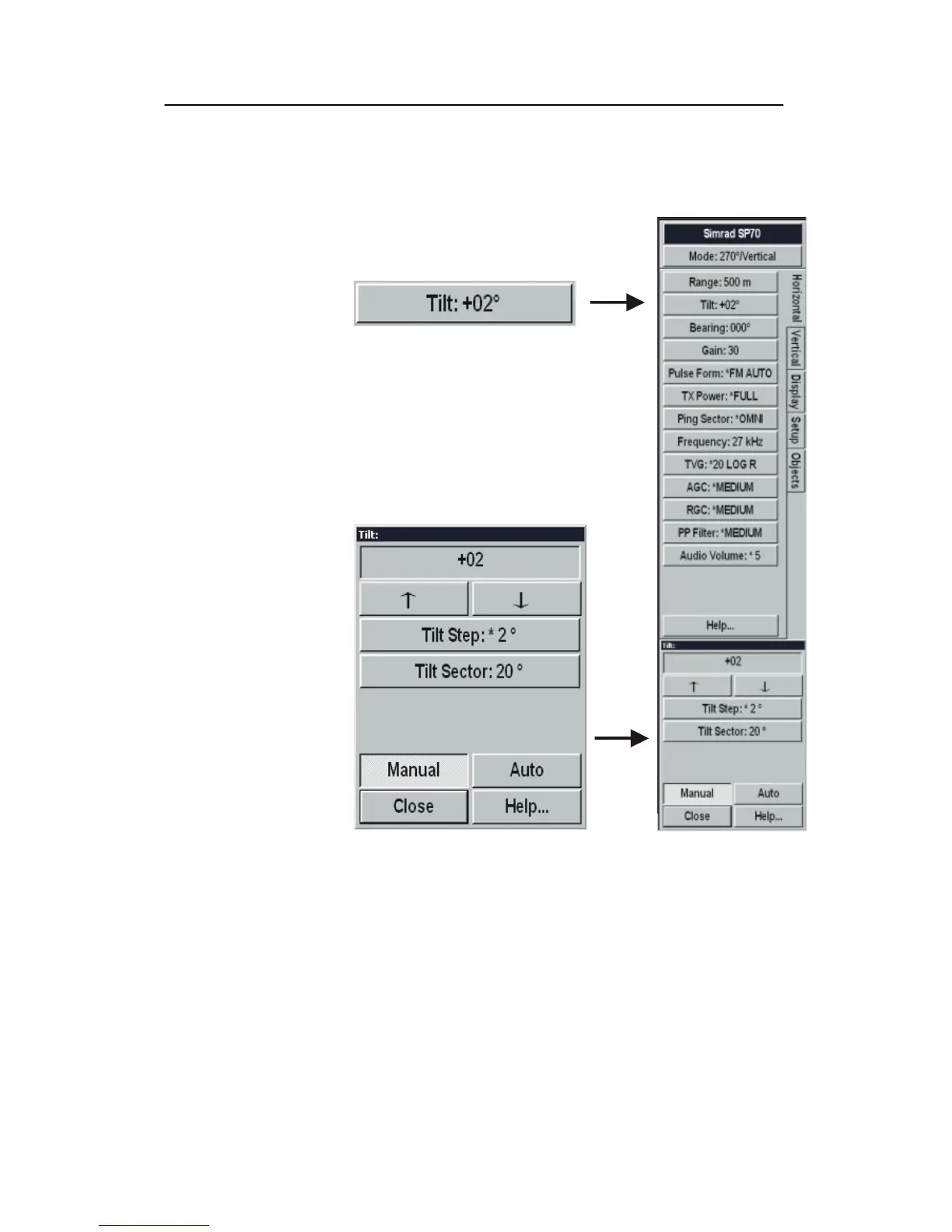

Figure 36 - Operation with submenu
(C 5768)D
Note that some of the menu buttons (example Range, Gain, Tilt
etc.) have a dual operation, and will normally be operated from
the operating panel. In such case, the parameter value shown in
the menu button will change according to the panel operation.
For some of these dual operated menu buttons, the submenu
contains more selections than only the main parameter (refer to
the Tilt menu). The philosophy behind this dual operation is to be
able to operate the complete sonar from a single mouse.
