Section04ENGINE
Subsection 05 (PTO HOUSING)

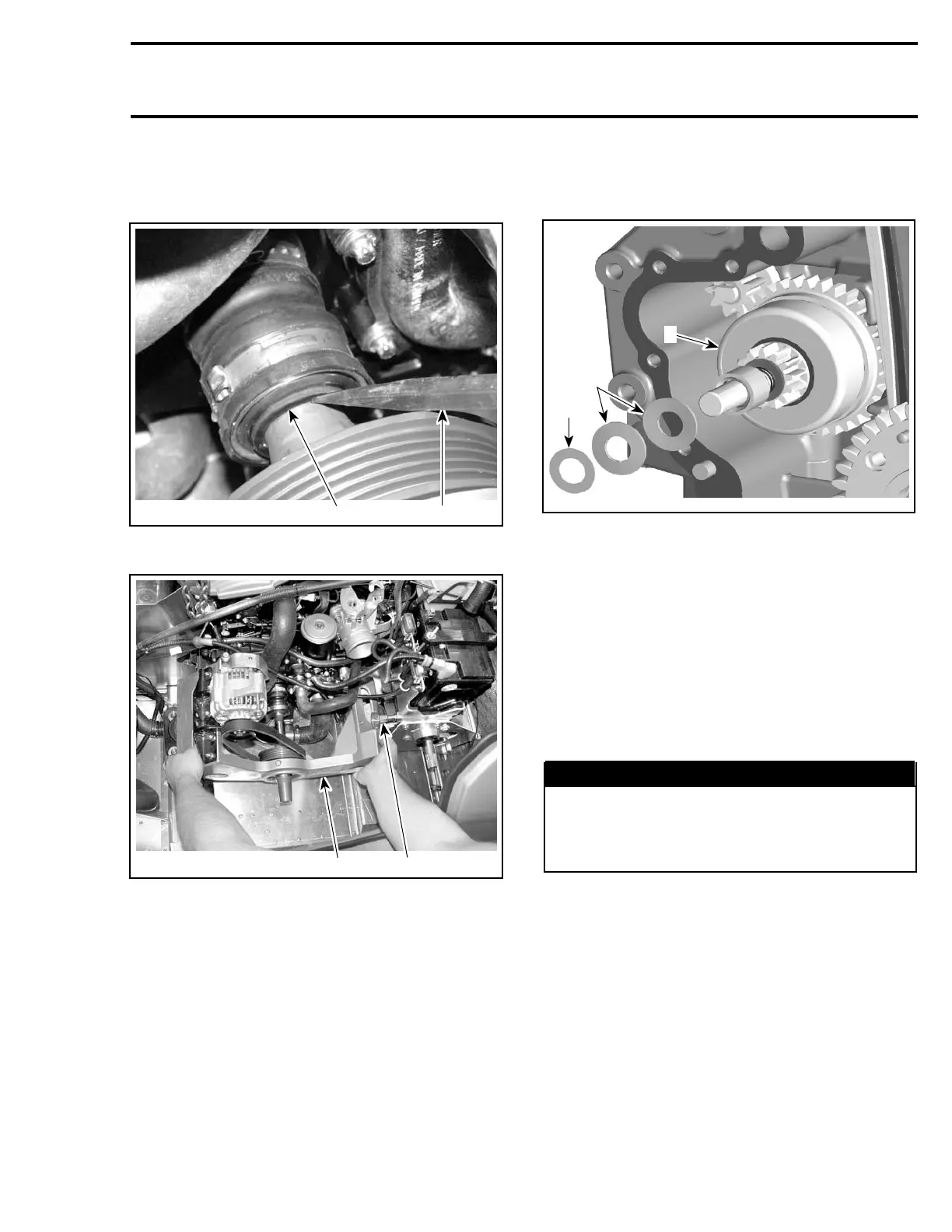

NOTE: To release PTO seal from drive shaft, it
may be necessary to gently tap flange of PTO seal
with a screwdriver and a hammer.
A34C1XA
1 2
1. PTO seal flange
2. Screwdriver
A34C1YA
1 2
1. Engine support
2. Torque pads
Disconnect CPS from wiring harness.
Remove screws no. 3 and no. 4.
NOTE: Carefully separate the PTO housing from
the engine using two flat screwdrivers prying
equally at the same time. Proceed slowly so that
startergeardiscspringsno. 6 and washer no. 7
do not fall down.
Remove PTO housing no. 5.
CAUTION: Ensure to use prying lugs to sepa-
rate PTO housing to prevent damaging contact
surface.
R1503motr336A
2
1
3
1. Disc springs
2. Washer
3. Starter drive gear
Remove gasket no. 9.
Inspection
Check PTO housing for cracks or other damages.
Replace if necessary.
Installation
NOTE: Clean all metal component in a non-ferrous
metal cleaner.
WARNING
Wear safety glasses and work in a well venti-
lated area when working with strong chem-
ical products. Also wear suitable non-ab-
sorbent gloves to protect your hands.
For installation, reverse the removal procedure.
However, pay attention to the following.
NOTE: Turn the oil/coolant pump shaft in the right
position to fit into the balance shaft.
Position the disc springs no. 6 and washer no. 7
as per the following illustration.
Te m pla te 89
