Section04ENGINE
Subsection 05 (PTO HOUSING)
1
R1503motr337A
23

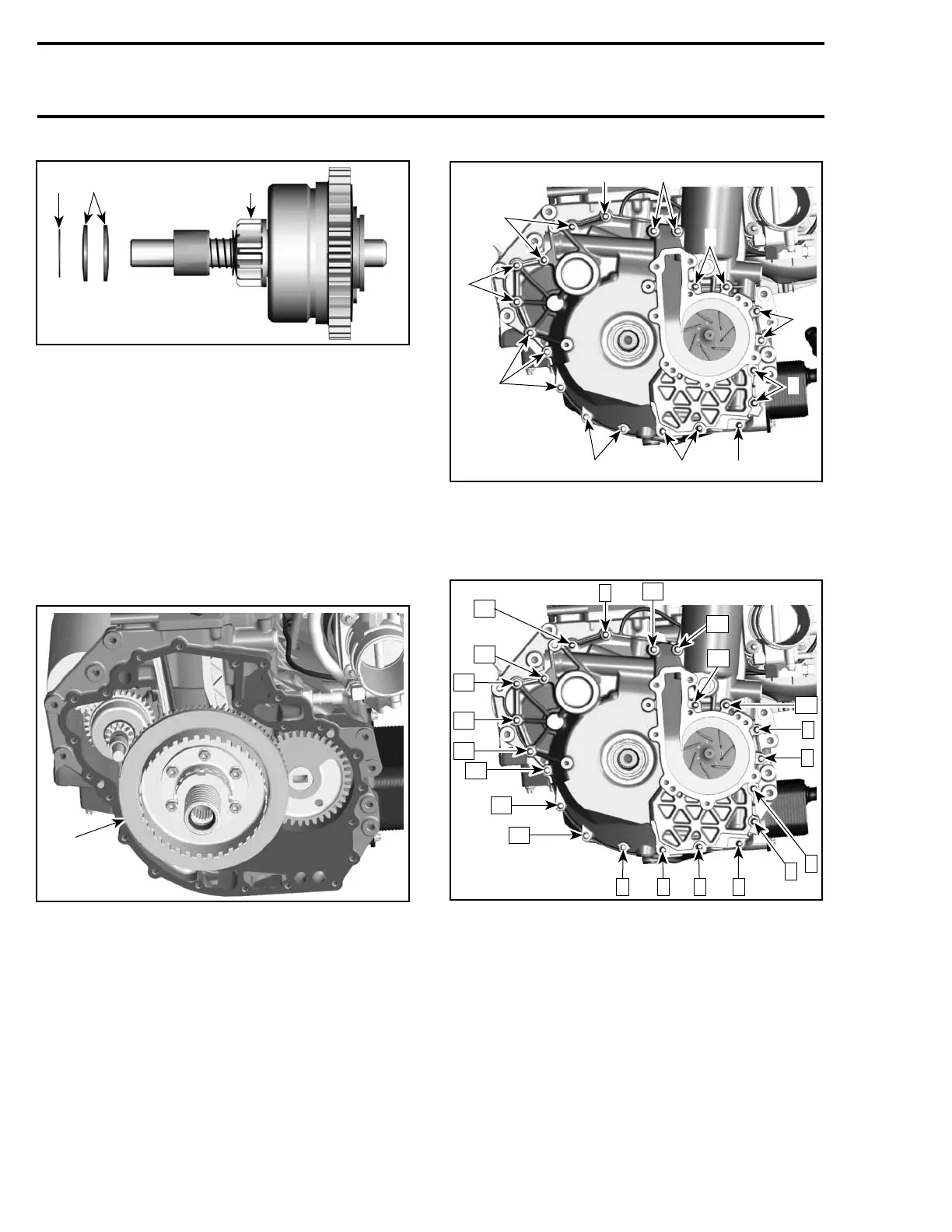

1. Washer
2. Disc spring
3. Starter drive ass'y
CAUTION: Ensure the starter drive gear shaft is
well engaged in its bore.
Gently install PTO housing.
CAUTION: While installing housing, pay partic-
ular attention that gasket does not get pinched
or slide out of its contact surface in the area
shown in the following illustration. Never
force to install cover. If there is a strong resis-
tance, remove housing and check oil/coolant
pump alignment and starter gear alignment.
1
R1503motr338A
1. Pay attention that gasket remains properly posi-
tioned on this surface
Refer to the following illustration for proper instal-
lation of screws.
1
R1503motr339A
2
1
1
21 1
2
2
2
2
1. Screws M6 x 35
2. Screws M6 x 85
Tightening sequence for screws on PTO housing
is as per following illustration.
R1503motr339B
14
16
15
8
11
1
17
18
19
20
21
32 54
6
7
9
10
12
13
Ensure torque pads are in place before reinstalling
engine support.
IMPORTANT: Ensure the alternator belt is in-
stalled on multi-rib pulley before engine support
reinstallation.
Remove seal carrier from PTO cover and install it
on the drive shaft.
