Section04ENGINE
Subsection 04 (REMOVAL AND INSTALLATION)

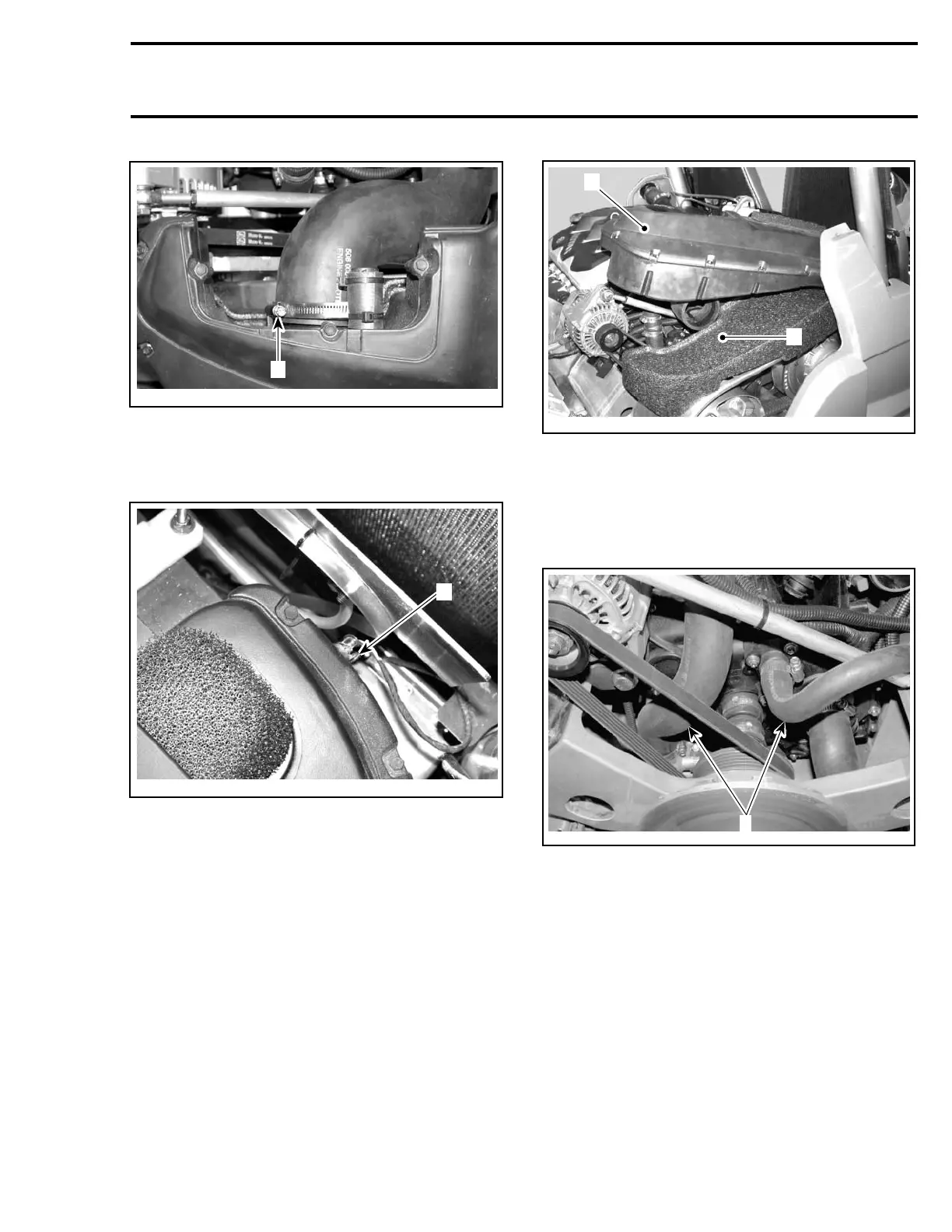

1
A34C04A
TYPICAL
1. Collar
Disconnectairtemperaturesensoratrearofair
silencer.
A34C05A
1
TYPICAL
1. Air temperature sensor
Remove air silencer then, formed foam.
A34C06A
2
1
TYPICAL
1. Air silencer
2. Formed foam
Remove the belt guard and the drive pulley.
Disconnect the 2 coolant hoses from RH side of
engine and siphon coolant from these hoses.
A34C0JA
1
1. RH side coolant hoses to be disconnected
Remove the muffler. Refer to EXHAUST SYS-
TEM.
Remove the heat shield, then disconnect the
BLACK (-) cable from engine block and the RED
(+) cable from starter.
