Section04ENGINE
Subsection 04 (REMOVAL AND INSTALLATION)

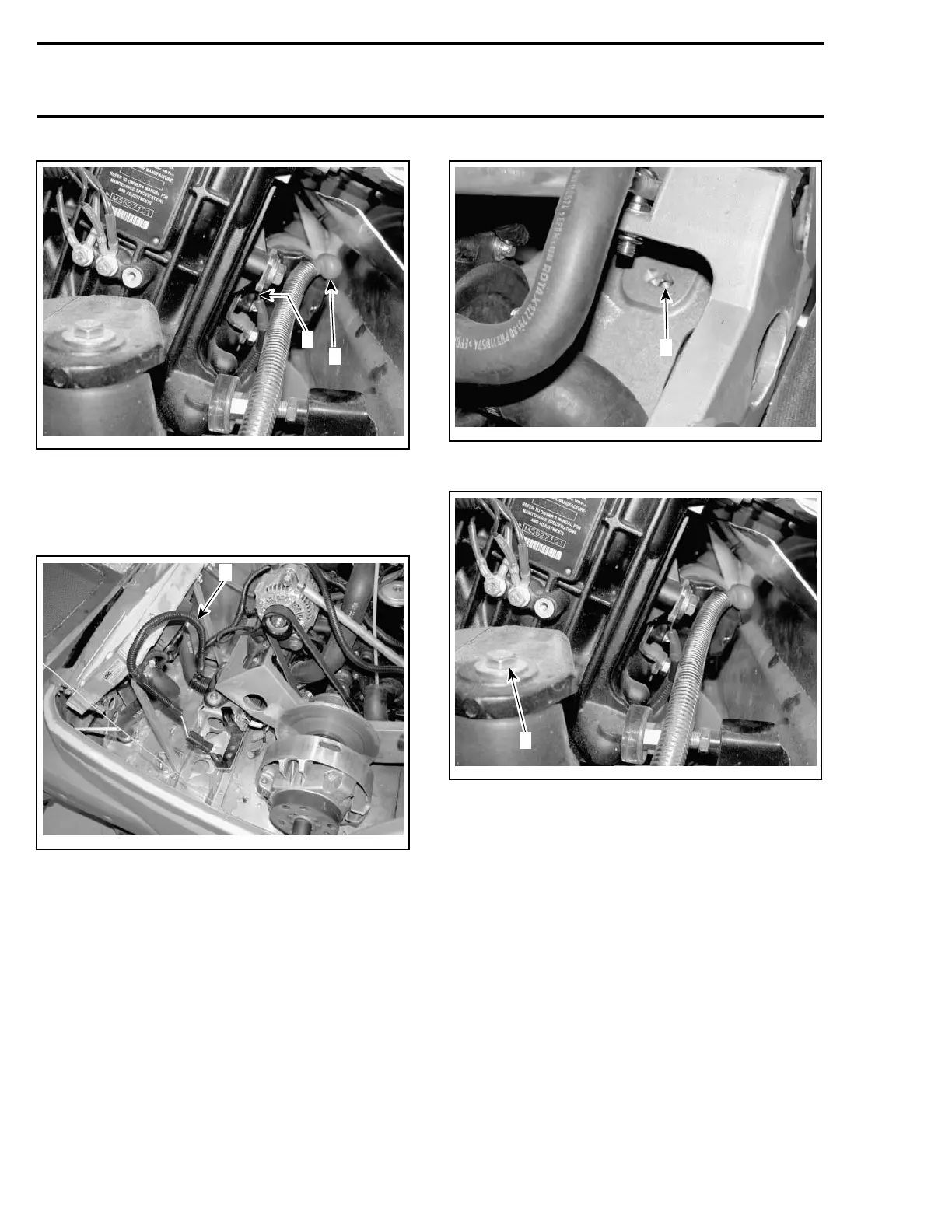

A34C0FA
1
2
TYPICAL
1. BLACK cable
2. RED cable
Disconnect the radiator wiring harness and move
it toward front of vehicle.
A34C0KA
1
1. Radiator wiring harness
Disconnect the alternator RED cable and the ter-
minal housing.
Disconnect all electrical connectors from the en-
gine including EMS connectors, diagnostic con-
nectors and ground wires.
Detach the throttle cable.
Loosen the torque rod on LH side engine mount
andthetwotorquerodsonRHsideenginemount
at front.
Remove all three engine mounts center screws.
A34C0NA
1
FRONT RH SIDE SHOWN
1. Engine mount center screw removed
A34C0FB
1
TYPICAL — LH SIDE SHOWN
1. Engine mount center screw to be removed
Slightly lift the engine using an appropriate lifting
device.
Disconnect the coolant hose between oil cooler
and chassis.
