Section04ENGINE
Subsection 04 (REMOVAL AND INSTALLATION)

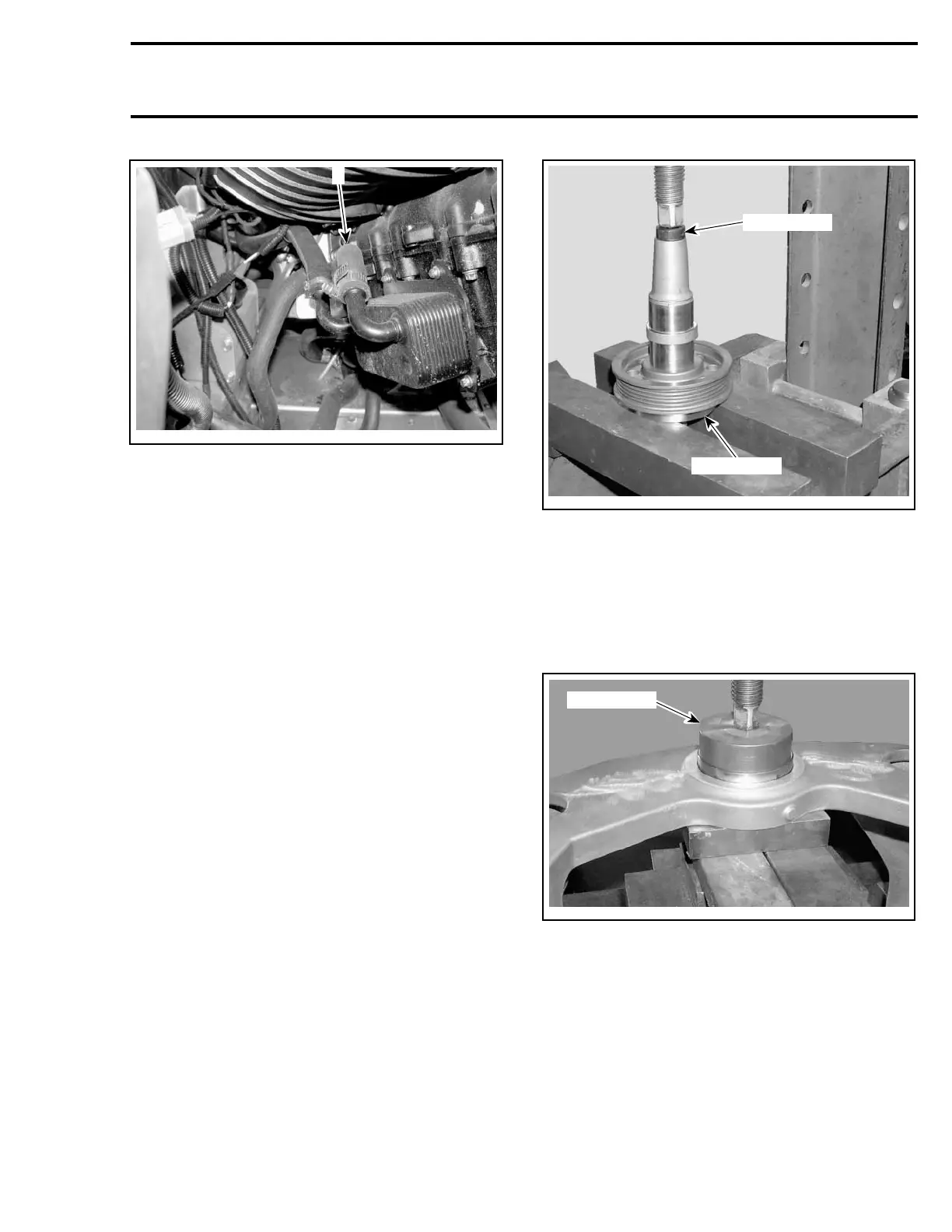

A34C0LA
1
1. Hose to be disconnected
Remove the engine from the vehicle using an ap-
propriate lifting device.
Drive Shaft and Engine Support
Removal
Unbolt the engine support from the engine block.
Disassembly
Remove bearing circlip, then press the drive shaft
along with the bearing out of the engine support.
Multi-rib pulley will come off the drive shaft at the
same time.
Assembly
Support multi-rib pulley by its center using the re-
cess side of the bearing support (P/N 529 035
953).
NOTE: The multi-rib pulley is symmetric, it can be
installed either way.
Protect drive shaft end with protector cap (P/N 420
877 414).
Push drive shaft with its splines first into multi-rib
pulley until it bottoms.
A32C0QA
420 877 414
529 035 953
CAUTION: Always install a new ball bearing
into the engine support.
Position a new ball bearing in the engine support
with its drive pin placed outward.
Use engine support bearing installer (P/N 529 035
952) to push the new ball bearing by its outer race
into the engine support.
A34C0OA
529 035 952
Position bearing support (P/N 529 035 953) against
ball bearing as illustrated.
Te m pla te 85
To Next Page
