Solid State Logic Matrix2 Delta

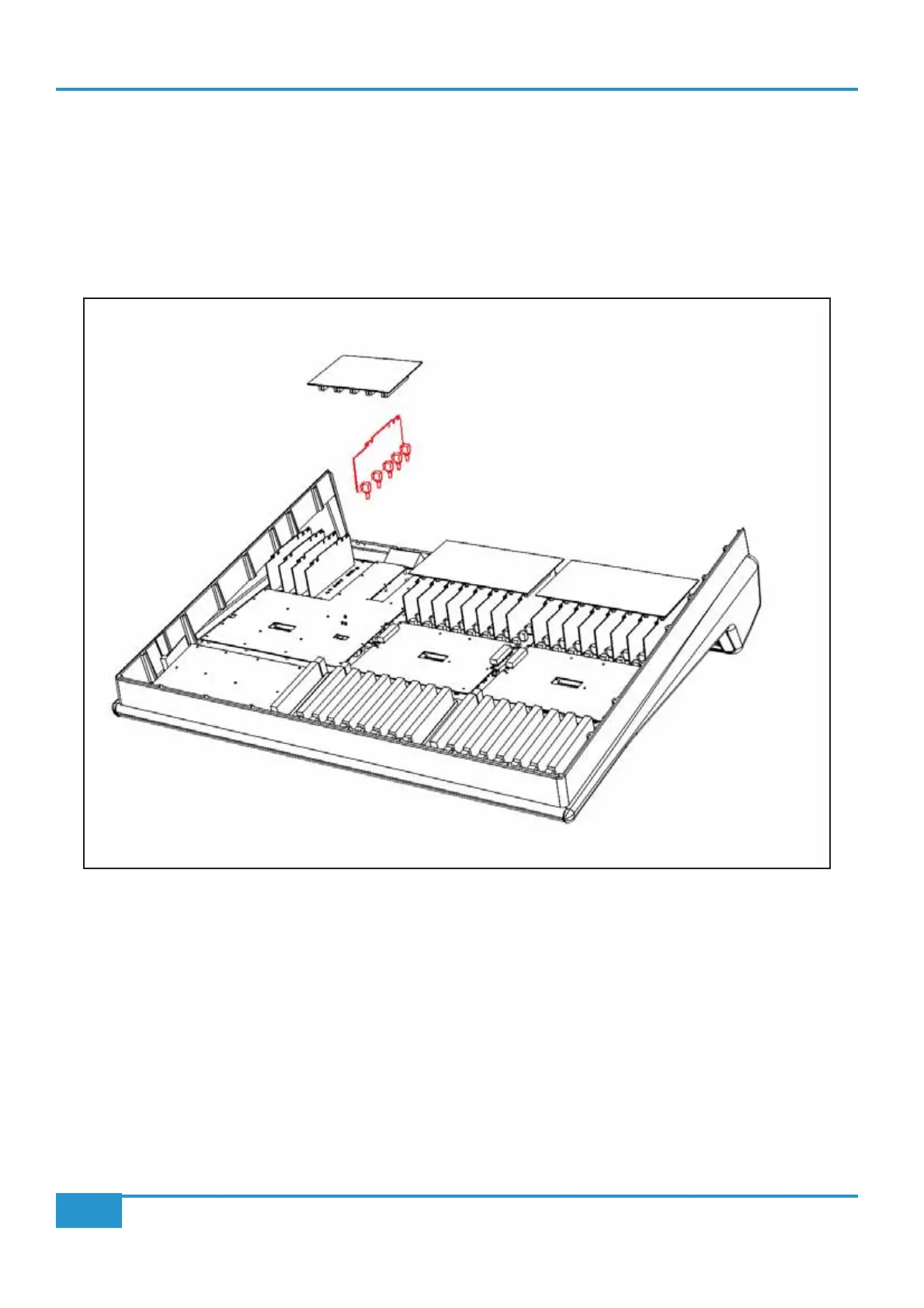

14 - Centre Section Module Replacement
• Remove the knob caps and retaining collar from the channel module to be replaced.
• Follow instruction #1 for the removal of the base plate, unscrew and slide the rear panel backwards to gain access to
buscards.
• Follow the instruction for the removal of 629511X1 centre buscard.
 
