SSL So Keys
Soft keys are buttons which can have different functions assigned to them, depending on which soft key set is active.

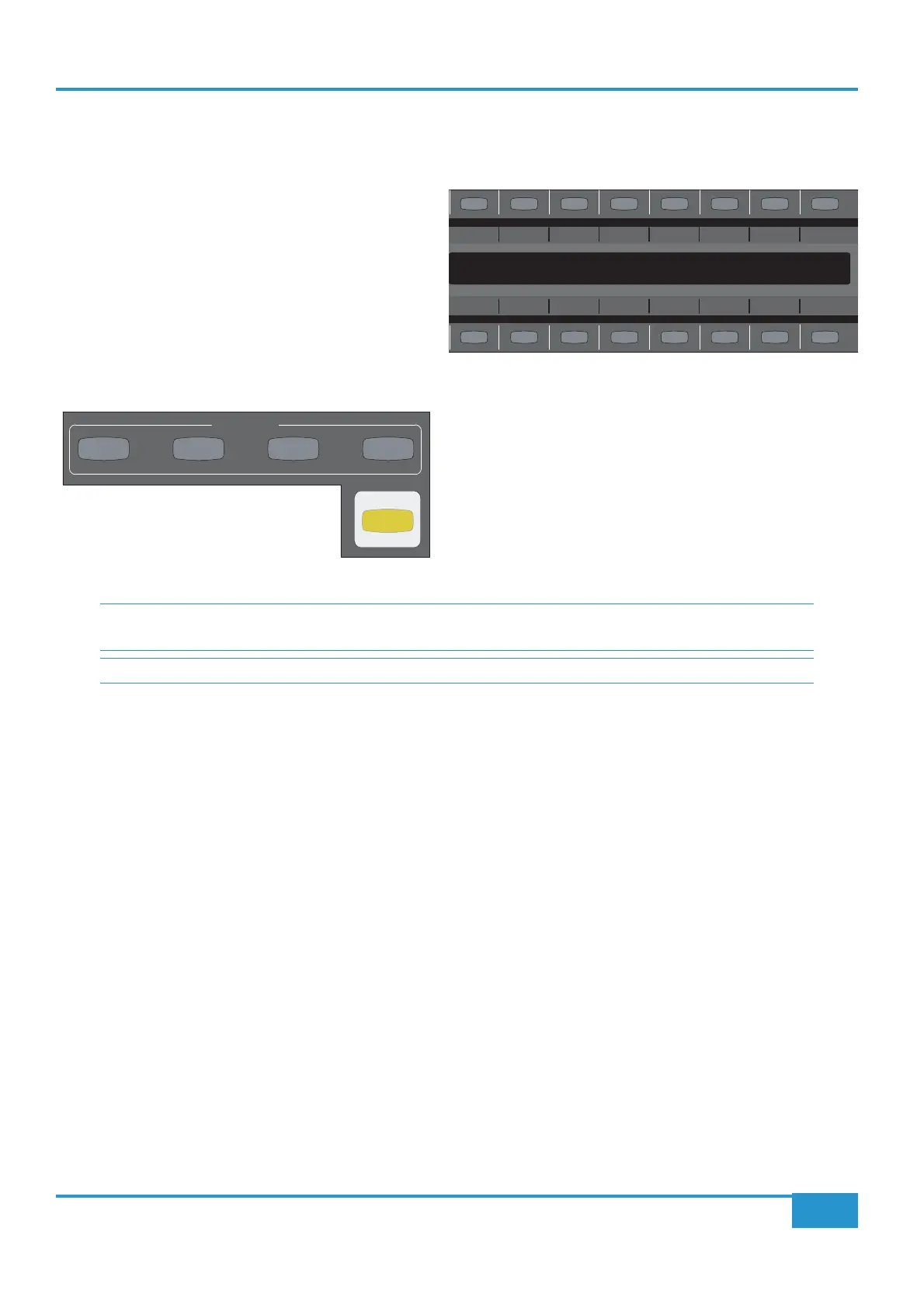

There are a number of Matrix settings which are accessed
via the SSL set of soft keys. The soft key area of the desk is
located below the counter display in the centre section, and
comprises 16 buttons above and below the digital scribble
strip which runs across the whole desk.
The scribble strip in between the button rows indicates what
functions are currently assigned to them: the upper row of
the display refers to the row of buttons above it, and the
lower display to the row of buttons below it.
sets and the SSL set. The soft key set which is currently assigned to
the soft key area is selected using the
SOFT KEY SETS buttons,
located on the right-hand side of the centre section, below the
main soft key area (shown left). The SSL set is selected by pressing
the
SSL button, below the USER1-4 buttons. It will light to
indicate that it is selected. To exit the SSL soft keys and return to
the previously selected User set, press the
SSL soft key button
again.
SSLUSERUSER set indication is retained
SOFT KEY SETS
The SSL soft keys are arranged in menus, with the top row of soft keys acting as menu selectors and the bottom row accessing
functions within the currently selected menu.
There are eight menus of SSL soft keys, labelled:
MonOpt, Mon, Meters, Auto, TR, IP, Misc and Links
within these menus are detailed over the following pages.
49).
Chapter 3 - Analogue Signal Flow
44
Matrix
2
Owner’s Manual
USER KEY SETS
USER 1 USER 2 USER 3 USER 4
SSL MENU
Project 2 :: Title
MonOpt Mon Meters Auto TR IP Misc Links
