Inserting Analogue Devices Using The Insert Matrix
On the right-hand side, you have two buttons, Devices and Chains. Make sure Devices is selected and you will see your 16
analogue pieces of gear in either a red or black box. To insert a piece of analogue gear onto a particular channel, simply drag
channel. Available devices are shown in
black. Devices already in use are shown in red. The horizontal scroll bar at the bottom
will allow you to move through all 16 channels of Matrix.
Once inside the Matrix, devices can be freely dragged and dropped between channels. If you wish to move a device from Channel
1 to Channel 16, simply hover over the horizontal scroll bar whilst holding the mouse-click down to move across the Matrix.
Creating Chains On The Fly

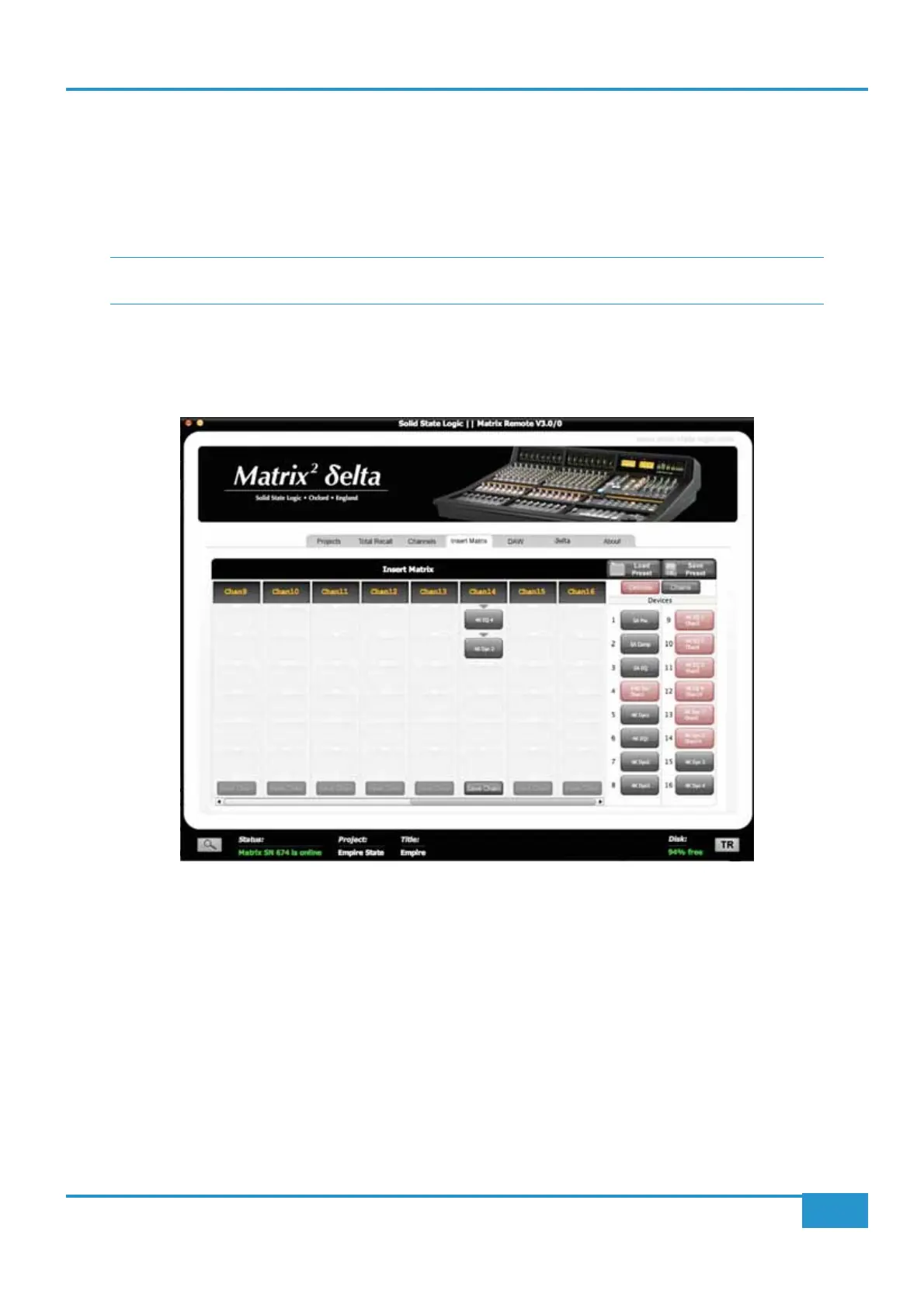

you can create chains of devices. For example, the screenshot above shows that the insert send of Channel 14 routes into the
4K EQ, out of the 4K EQ into the 4K DYN, out of the 4K DYN back to the insert return. A maximum of 6 devices can be used
across a single channel.
Re-Ordering Adjacent Devices
mouse and they will swap slots.
