Monitoring
Control Room Monitors

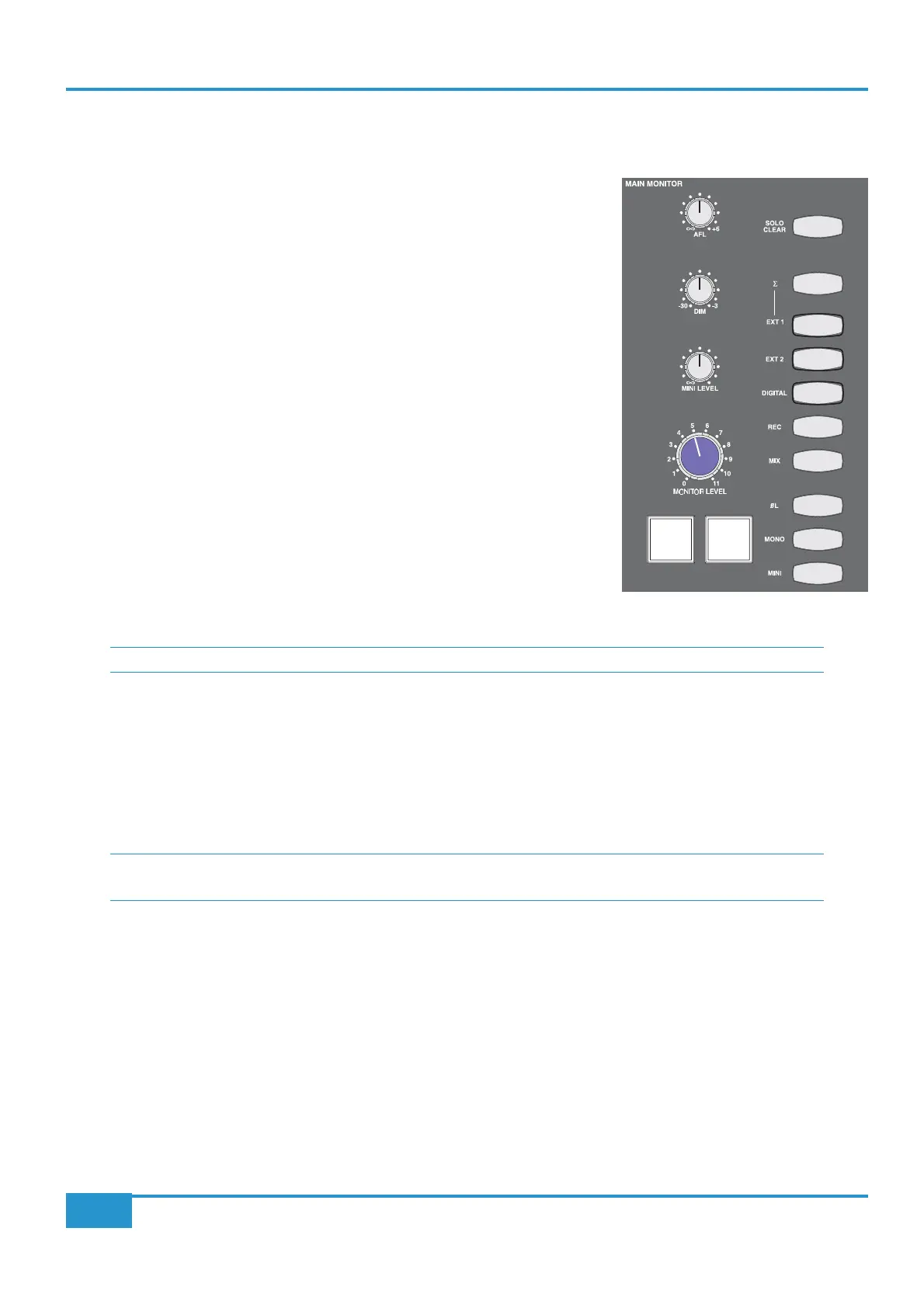

The MAIN MONITOR area of the Matrix centre section is located to the right of
the Master Channel. The blue pot towards the bottom left of the area is the volume
control for the main monitors, and beneath it are two buttons. The left button,
labelled
DIM, immediately reduces the volume of the monitoring. The amount of
gain reduction introduced by the
DIM button ranges from -3dB to -30dB and is
controlled by the
DIM pot, which is the middle of the three grey pots above the main
volume control. The button to the right of the
DIM button, labelled CUT, mutes the
monitoring. Both the
DIM and CUT buttons light up to indicate that they are active.
In the right half of the monitoring area are 10 buttons, which will be described in
ascending order:
Pressing
MINI
monitors. The mini’s have an independent volume control which is the bottom of the
three grey pots, immediately above the main monitor volume control. To return to
hearing the main monitors, press the
MINI button again. Pressing MONO sends a
left-right summed signal to both speakers. Pressing and holding
øL inverts the phase
of the left-hand monitor signal. You can monitor the stereo difference (L-R) signal by
pressing
øL when the MONO button has been selected.
øL button form the source selector for the monitor
bus. These include the
MIX and REC busses along with three external inputs
described below:
DIGITAL, EXT2 and EXT1. Each buttons lights when active.
REC
Normally these buttons cancel each other (in other words, if you select one source, the previously selected source is automatically
deselected). However, the summing button (Y
intercancelling feature and instead sums all selected inputs, enabling multiple sources to be monitored simultaneously. Deselecting
the Y button cancels all monitoring sources and returns the monitoring to intercancelling mode.
The top button in the monitoring area, labelled
SOLO CLEAR, clears any SOLO or AFL buttons that are active on the desk,
restoring the monitoring source selection in the buttons beneath it. The
SOLO CLEAR button lights to indicate that there is a
channel or bus in solo or AFL mode somewhere on the desk, as does the
SOLO light located above the VU meters.
SOLOMAIN MONITOR
External Monitoring Inputs
Matrix allows up to three external audio sources to feed the monitoring - two analogue and one digital. On the console, these
are labeled
DIGITAL, EXT1 and EXT2, and their connections are described in Chapter 1. If an MP3 player or iPod is connected
to the iJack socket in the consoles right-hand trim, this signal will replace the
EXT1 signal.
Aer Fade Listen (AFL)
The pot labelled AFL located at the top of the monitoring area sets the main monitoring volume for the stereo AFL function.
Pressing any
AFL button on the centre section will replace the current feed to the monitors with the post-level signal (and in the
case of the Matrix channels, post level and pan) associated with that
AFL button. Pressing multiple AFLs will sum the selected
signals together. AFLs can be cancelled by pressing the
SOLO CLEAR button or by deselecting any active AFL buttons. Centre
section AFLs are unaffected by the solo monitoring soft key options detailed on Page 43.
Chapter 3 - Analogue Signal Flow
39
Matrix
2
Owner’s Manual
iJack
CUT
DIM
