The Centre Section
Master Bus Controls

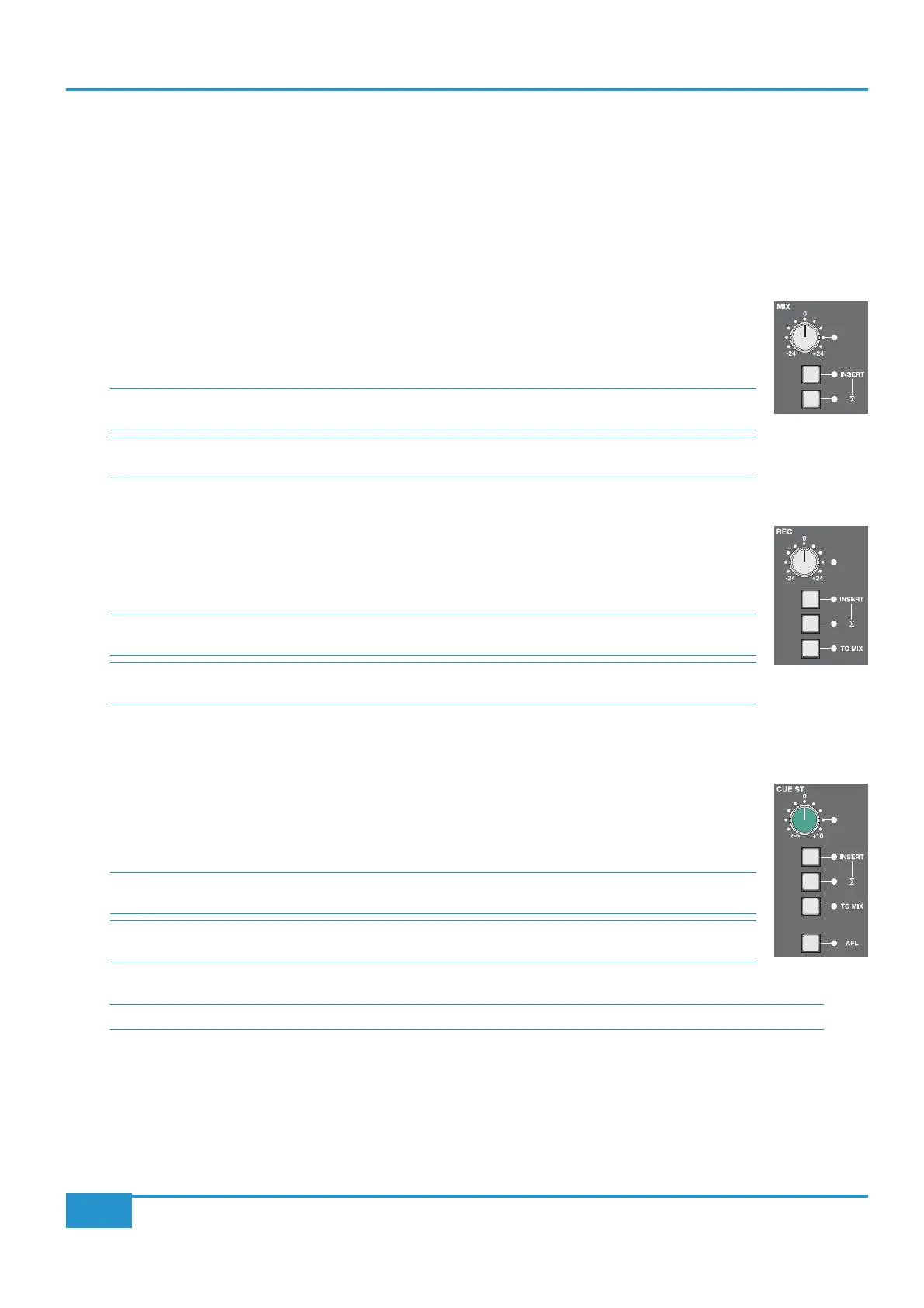

The master controls for the mix, record, cue and FX busses are found in the top right corner of the Matrix centre section. Each
bus has its own gain pot with a Total Recall LED. The gain pots trim the signal by ±24dB and are indented in the centre at unity
gain.
The Mix Bus
The MIX bus has its own dedicated insert circuit which is separate from the channel routing in the Insert
Matrix. The
INSERT button below the gain trim routes the bus through the MIX INS SEND and RTN
connections. By default, the return from the insert will then feed the main bus output. However, the summing
(Y) button below the
INSERT button sums the insert return and the original bus feed together.
INSERT
Y

Y
The Record Bus
The REC bus has its own dedicated insert circuit which is isolated from the channel routing in the InsertMatrix.
The
INSERT button below the gain trim routes the bus through the REC INS SEND and RTN connections.
By default, the return from the insert will then feed the main bus output. However, the summing (Y) button
below the
INSERT button sums the insert return and the original bus feed together.
INSERT
Y
Y

The
REC bus can be routed to the MIX bus by pressing the TO MIX button below the Y button.
The Cue ST Bus
The CUE ST bus has its own dedicated insert circuit which is isolated from the channel routing in the Insert
Matrix. The
INSERT button below the gain trim routes the bus through the CUE INS SEND and RTN
connections. By default, the return from the insert will then feed the main bus output. However, the summing
button (Y) below the
INSERT button sums the insert return and the original bus feed.
INSERT
Y

Y
The bus can be routed to the
MIX bus by pressing the TO MIX button below the Y button.

CUE STMIX
The send signal can be auditioned on the main monitoring by pressing the
AFL button below the TO MIX button. There is an
LED to the right of the button which lights to indicate that
AFL is on. (See Page 39 for more on AFLs.)
