Solid State Logic Matrix2 Delta User Manual

Appendix G - Service
166
Matrix
2
Owner’s Manual

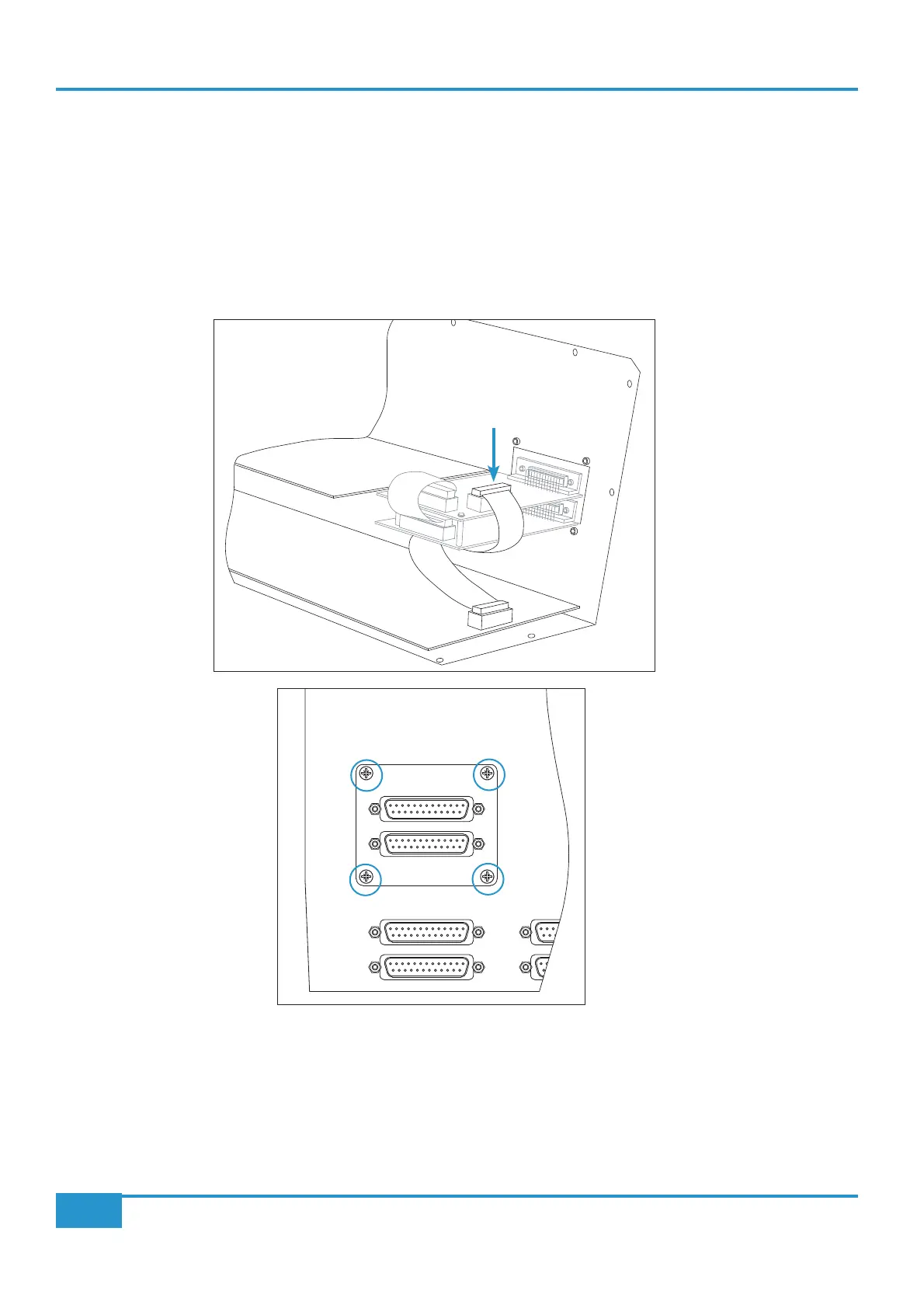

22 - 5.1 Surround Card Removal
• Follow instruction #2 for removal of the rear connector panel.
• Locate the surround card at the left end of the rear panel.
• Remove the single ribbon connector from the surround card as indicated below.
• Remove the four M3 retaining screws from the rear panel as shown in the lower diagram.
• Withdraw the card through the aperture in the rear panel, taking care not to catch the ribbon cable on the frame edges.
REC,
REC, MICUE ST, FX OUT 1-4
FX RETURNS 1-4
EXT1,2 (C, SW, LS, RS)
MON, MINI (C, SW, LS, RS)
