Stereo Bus Master Controls
The level of the console’s four stereo busses is set by four rotary controls to the right of
the SL953 (see above). The bus outputs are fed to the patch (N 1-8), then normalled to
the connector panel and to an insert return to the console (P 1-8). The insert return can
be monitored via External Source Selector 1 (see Page 5-11) and may also be routed to
the main mix busses using the reassign switches next to the level controls. Routing to
Left and Right outputs is in stereo. Routing to Centre or Surround is in mono.
This allows the stereo busses to be used as audio subgroups, to generate centre or
surround mixes, or to be normalled to an 8-track recorder, outboard effects equipment
or foldback feeds.
The insert point enables audio groups to be processed before being mixed back onto
the main outputs.
The Centre Section
5-7
22.12.94
+10
0
0
TO L/R
TO CEN
TO SUR
0
+10
0
0
TO L/R
TO CEN
TO SUR
0
+10
0
0
TO L/R
TO CEN
TO SUR
0

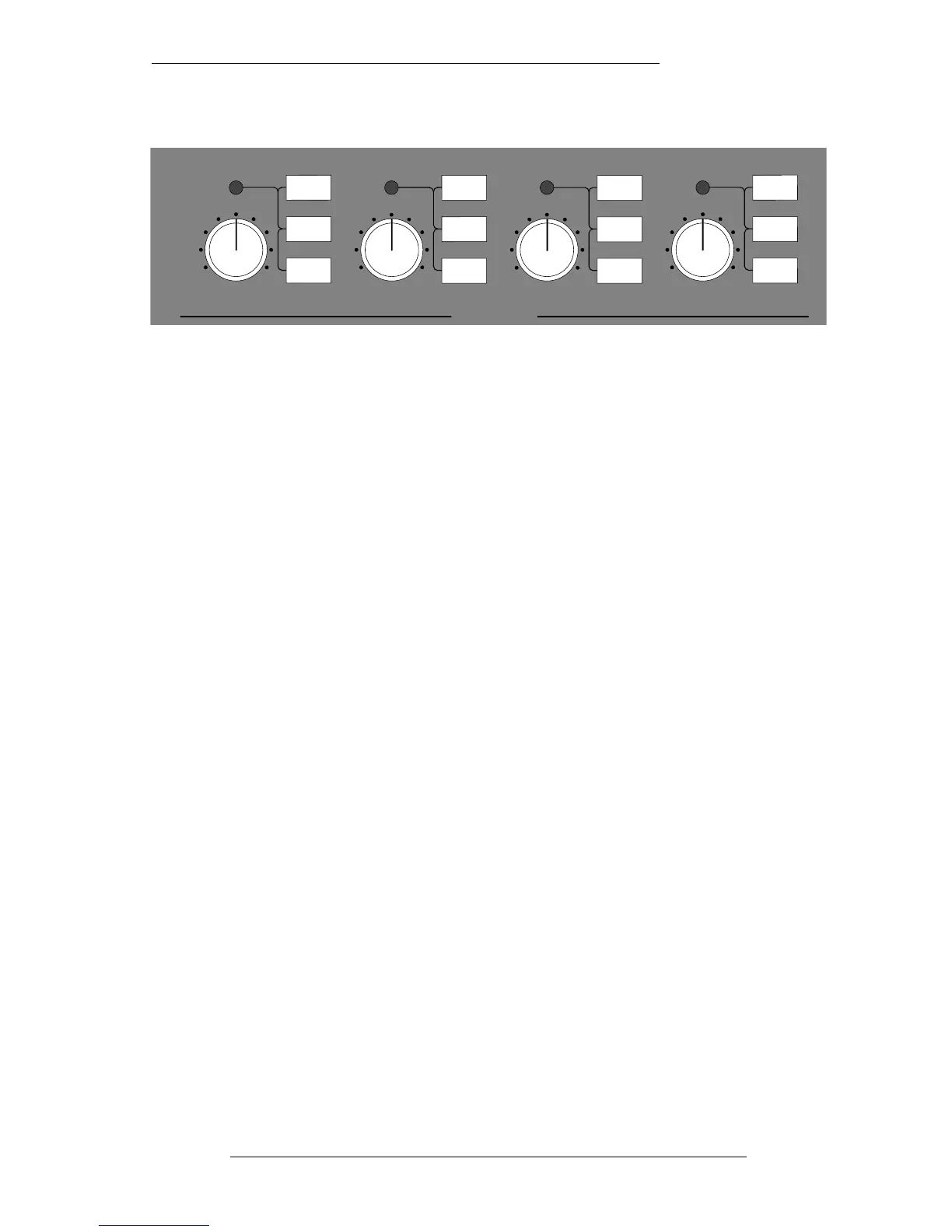

STEREO BUSES
